Products Description
| Input Voltage(V) | AC100-240V | IP Rating | IP20 |
| Lamp Luminous Efficiency(lm/w) | >110LM/W | Lifespan (Hours) | 30000 |
| Color Temperature(CCT) | 3000K/4000K/6000K | Color Rendering Index(Ra) | 80 |
| Support Dimmer | Yes | Warranty(Year) | 5-Year |
| Lamp Body Material | Alumium+PS | Application | Hotel,Home,Coffee,office,Shopping Mall Library |
| Design Style | Modern | Lighting solutions service | Lighting And Circuitry Design |
| Light Source | LED | Place of Origin | Guangdong, China |
| Lamp Luminous Flux(lm) | 7920-8640LM | Product Weight(kg) | 4.4 |
| Working Temperature(℃) | -20 - 60 | Product name | 72W CCT switch Back-lit LED panel light |
| Housing Color | White | Wattage | 72W |
✨ Unbeatable Key Features

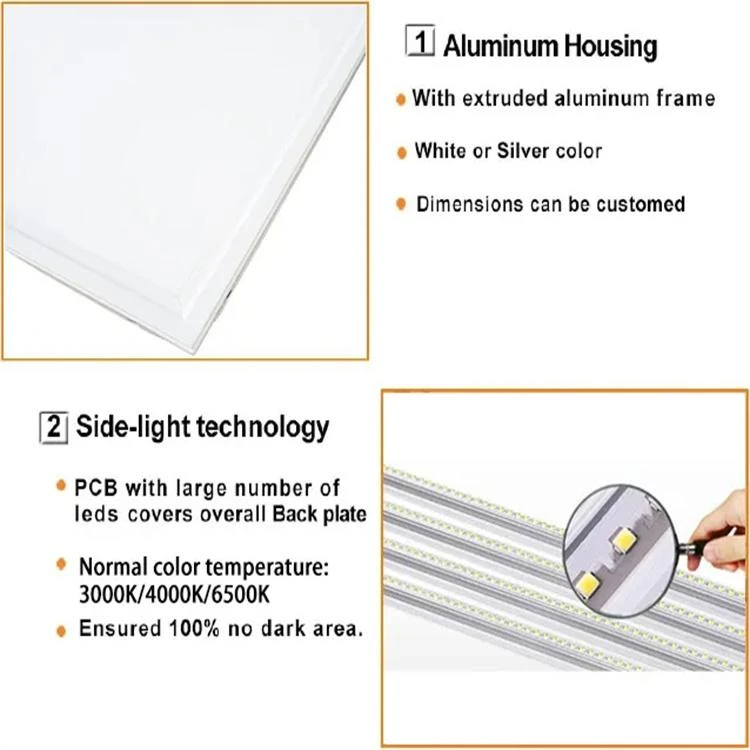

1. Durable & Customizable Aluminum Housing
Crafted with high-grade extruded aluminum frame (available in white or silver) for exceptional heat dissipation
Prevents overheating, extends lifespan, and maintains consistent performance year after year
Fully customizable dimensions to perfectly fit your unique ceiling requirements
2. Shadow-Free Side-Light Technology
High-density LED strips cover the entire back plate, ensuring 100% no dark areas
Soft, glare-free, flicker-free illumination that protects your eyes from fatigue during long work/study hours
3 versatile color temperature options: 3000K (warm white), 4000K (neutral white), 6500K (cool white)
✨ Unbeatable Key Features

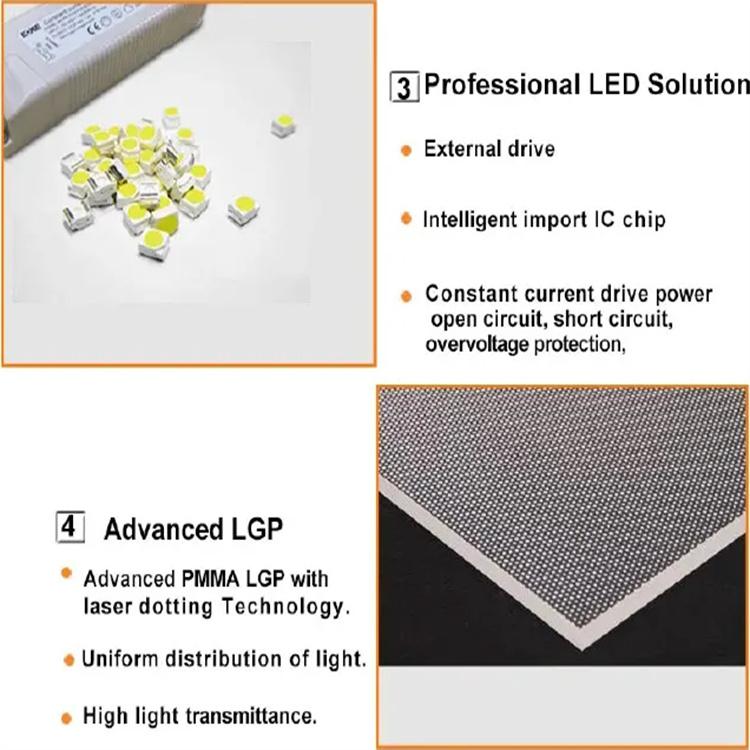

3. Safe & Reliable Professional LED Driver
External driver with intelligent imported IC chips for stable constant current output
Comprehensive protection against open circuit, short circuit, and overvoltage
Eliminates safety hazards and ensures long-term reliable operation
4. High-Performance PMMA LGP (Light Guide Plate)
Advanced laser dotting technology for perfectly uniform light distribution
Exceptional light transmittance maximizes brightness while minimizing energy waste
Delivers crisp, clear illumination without yellowing or degradation over time
5. Ultra-Slim 12mm Profile
At only 12mm thick, this minimalist design seamlessly blends into any ceiling
Saves valuable space and adds a touch of modern elegance to any environment
Perfect for low-ceiling spaces where bulky fixtures are impractical
🛠️ Effortless 4-Step Installation (No Electrician Required!)
Install in minutes with these simple steps for standard T-bar ceiling grids:
Bevel In: Tilt the panel light at an angle and insert one edge into the ceiling opening
Rotate & Lower: Use your left hand to rotate the panel downward and align the opposite edge with the grid
Push & Secure: Press firmly on both sides of the panel with both hands to seat it securely
Align & Finish: Make final adjustments to ensure the panel is perfectly flush with the ceiling, with no visible gaps
