comparison of product parameters
| Input Voltage(V) | AC 85-265V | IP Rating | IP66 |
| Lamp Luminous Efficiency(lm/w) | 150 | Application | Sports Stadiums |
| Certification | RoHS, CE | Lifespan (Hours) | 100000 |
| Warranty(Year) | 5-Year | Color Temperature(CCT) | 5000K (Daylight) |
| Color Rendering Index(Ra) | 80 | Support Dimmer | Yes |
| Material | Aluminum | Working Time (hours) | 100000 |
| Lighting solutions service | Lighting And Circuitry Design, Onsite Metering, Dialux Evo Layout, Litepro Dlx Layout, Auto Cad Layout, Agi32 Layout, Project Installation | Light Source | LED |
| Beam Angle(°) | 10°/30°/60° | Lamp Luminous Flux(lm) | 90000 |
| Place of Origin | Guangdong, China |
CRI (Ra>) |
80 |
| Product Weight(kg) | 19.2 | Working Temperature(℃) | -40-50 |
| Material | Aluminum profile+PC lens | Voltage | 85-305v |
| Delivery time | 5 days for sample; 15 days for production | keyword | LED stadium light |
Core Optical Performance & Anti-Glare Design
Equipped with detachable curved black lamp brim visor, effectively blocks upward light spillover to the sky, eliminates sky glow and light trespass, fully complies with international dark sky anti-light-pollution standards.
Built-in professional integrated optical PC lens with high light transmittance; raw PC material features anti-UV, anti-oxidation and non-yellowing property, no light attenuation caused by lens aging after long-term outdoor exposure.
Customizable beam angle options (15°/30°/45°/60°/90°) to match different venue lighting demands, precisely focus light on target ground area, maximize light utilization rate and reduce invalid light waste.
High-brightness top-tier SMD LED chips with high color rendering index (CRI>80, optional CRI90 for professional competition fields), restore true color of sports courts, athletes and facilities, ideal for live broadcast & HD camera shooting.
Ultra-uniform light output with no hot spots or dark zones across the irradiation area, prevents visual fatigue for players and spectators during long-time matches.
Low glare optical design softens strong light source, avoids dazzling interference to athletes and on-site cameras, perfectly fits professional sports competition lighting requirements.
High luminous efficiency up to 140-160lm/W, far exceeding traditional halogen & metal halide lamps, achieves higher brightness output with lower power consumption for remarkable energy saving.
Full Protection Grade & All-Weather Durability
Complete IP66 waterproof & dustproof rating for both lamp body and external power driver: fully prevents dust infiltration, withstands heavy rainstorm, splashing water and high-pressure water washing without internal short circuit risk.
Integrated silicone rubber sealing ring with anti-aging EPDM material, tight gap sealing between lens and lamp housing, no water vapor fogging inside the light cavity under temperature difference alternation.
Die-cast aluminum lamp housing surface treated with electrostatic spraying & anti-corrosion oxidation process, resists salt spray, acid rain, ultraviolet radiation; no rust, peeling or paint fading in coastal, industrial and humid regions.
IK08 high impact resistance rating, the lamp lens and housing can withstand strong external impact, suitable for collision-prone sports venues like football, basketball and rugby fields.
Wide operating temperature range from -40℃ to +60℃, maintains stable lighting output in extreme cold winter and high-temperature summer without brightness drop or startup failure.

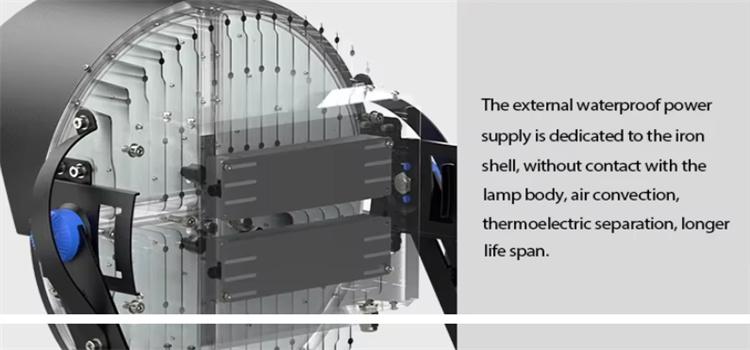

External driver with independent waterproof metal shell, extra insulation protection against lightning surge; optional surge protection device up to 10KV for outdoor high-mast installation in thunderstorm-prone areas.
All metal mounting brackets and adjustment fasteners adopt stainless steel anti-rust hardware, long-term outdoor exposure will not lock up or corrode, convenient for later angle readjustment and disassembly.
Application Scenarios
Professional football stadiums, rugby fields, athletics tracks
Outdoor basketball, tennis, badminton multi-sport courts
Large race tracks, equestrian venues, golf driving ranges
Airport aprons, container yards, logistics large storage yards
Municipal large squares, park open activity zones, port wharves
School campus sports grounds, community comprehensive activity fields
