comparison of product parameters
| Input Voltage(V) | AC220-240V | IP Rating | IP54 |
| Lamp Luminous Efficiency(lm/w) | 120 |
Lifespan (Hours) |
>30000 |
|
Color Temperature(CCT) |
3000k 4000k 6000k |
Color Rendering Index(Ra) |
>80 |
|
Support Dimmer |
Yes |
Warranty(Year) |
3-Year |
|
Lamp Body Material |
Aluminum+lron+ps |
Application |
Office Building |
|
Design Style |
Modern |
Lighting solutions service |
Lighting And Circuitry Design, Dialux Evo Layout |
|
Light Source |
LED |
Place of Origin |
China |
|
Lamp Luminous Flux(lm) |
4320 |
Working Temperature(℃) |
-20-45 |
|
Item Type |
Panel Lights |
Product name |
led ceiling panel artificial skylight 595*595*25mm |
|
Size |
595*595*25mm |
Flicker free |
Yes |
|
Shape |
Square |
Material |
Aluminum+lron+ps |
|
Keyword |
led ceiling panel artificial skylight |
Application |
Home/Office/Shopping mall |

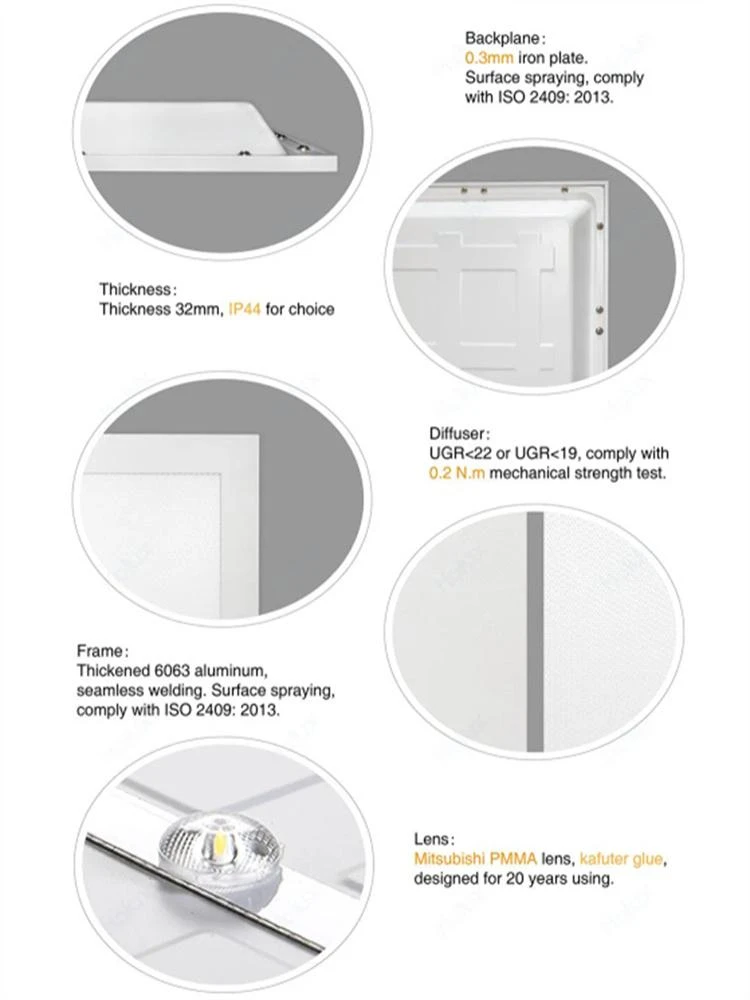

Premium Construction & Mechanical Structure
Frame: Adopted thickened aviation-grade 6063 aluminum alloy frame with seamless laser welding technology, integrated electrostatic spraying surface treatment, fully compliant with ISO 2409:2013 coating standard. No sharp edges, anti-rust, anti-corrosion and high structural rigidity, resisting deformation during long-term ceiling installation.
Back Heat Dissipation Plate: 0.3mm thick cold-rolled iron backboard with stamping grid heat dissipation groove design. Enlarged heat exchange area rapidly conducts heat generated by LED chips out of the fixture, effectively lowering internal operating temperature and extending whole lamp service life.
Ultra-slim 32mm Whole Fixture Thickness: Ultra-flat body design fits perfectly into standard 600*600 suspended ceiling grids, recessed installation without protruding, neat & minimalist interior visual effect. All edges sealed with stainless steel screw fastening to eliminate assembly gaps.
Sealed Assembly Structure: All internal light cavity is fully enclosed by diffuser panel and backplate, blocking dust, water mist and small particle pollutants from entering the lamp interior, realizing IP44 protection level.
Advanced Optical System & Lighting Performance
Backlit Symmetrical SMD LED Chip Layout: SMD LED beads evenly distributed on dual sides of the lamp frame, matched with independent Mitsubishi PMMA optical lens for each light source. Effectively solve dark zone & uneven lighting issues common in cheap edge-lit panels, achieve 100% uniform flat light output across the entire luminous surface.
High-strength Anti-glare Diffuser Panel: Professional light homogenizing diffuser sheet, passed 0.2N·m mechanical strength impact test, not easy to crack or scratch during transportation & installation. Two glare control grades available: UGR<22 (standard office version) & UGR<19 (high-end eye-care version), eliminate harsh light reflection to protect eyesight for long-hour working scenarios.
Mitsubishi Original PMMA Optical Lens: High light transmittance, anti-yellowing property under long-term high temperature operation. Bonded with high-stability Kafuter glue, no degumming or light decay after years of continuous lighting, optical system designed for 20-year theoretical service cycle.
Flicker-free & Stable Color Rendering: Constant-current driver eliminates low-frequency flicker, high CRI Ra>80/Ra>90 optional. Consistent color temperature output (3000K/4000K/6000K adjustable) without color shift after long-time use, ideal for offices, classrooms and retail display lighting.
High Luminous Efficiency: Up to 120lm/W energy-saving luminous efficiency, far higher than traditional T8 fluorescent grid lamps, greatly cut monthly electricity consumption for commercial buildings.
IP44 High Protection Grade & Safety Reliability
IP44 Dust & Water Resistance Rating: Fully sealed internal light cavity structure with screw-tightened edge sealing. IP44 certified performance: fully block all solid dust particles larger than 1mm, resist splashing water from all directions (vertical, horizontal, diagonal). Suitable for damp environment like hospital wards, shopping mall rest areas, school bathrooms and basement office zones.
Isolated Safe LED Driver: CE, LVD, EMC certified external constant-current driver with over-voltage, over-current, short-circuit and overheat multi-protection circuits. Automatically cut off power under abnormal conditions to prevent circuit burnout or safety hazards.
Full International Safety Certifications: The whole lamp complies with EU CE, RoHS, EMC standards, all raw materials halogen-free & environmental friendly, no harmful mercury or volatile substances, meets global commercial project import inspection requirements.
Anti-leakage Sealing Treatment: Wire outlet equipped with rubber waterproof sealing sleeve, prevent water vapor and dust penetrating into the internal circuit from wiring position, eliminate electric leakage risk in humid spaces.
