comparison of product parameters
|
Input Voltage(V) |
AC 85-265V |
Base Type |
E26, E27, E39, E40 |
|
Lifespan (Hours) |
50000 |
Lamp Luminous Efficiency(lm/w) |
125 |
|
Color Temperature(CCT) |
4100K (Neutral White) |
Certification |
CCC, CE, Emc, FCC, LVD, RoHS, Reach |
|
Warranty(Year) |
5-Year |
Support Dimmer |
No |
|
Color Rendering Index(Ra) |
80 |
Type |
Corn Lights |
|
LED Light Source |
customization |
Application |
175w led corn lights for enclosed fixture retrofit |
|
Switch Mode |
Manual Button |
Power Source |
AC |
|
Material |
Aluminum |
Lighting solutions service |
Lighting And Circuitry Design, Dialux Evo Layout, Auto Cad Layout |
|
Place of Origin |
Shenzhen |
Lamp Luminous Flux(lm) |
1500lm |
|
Working Temperature(℃) |
-20 - 60 |

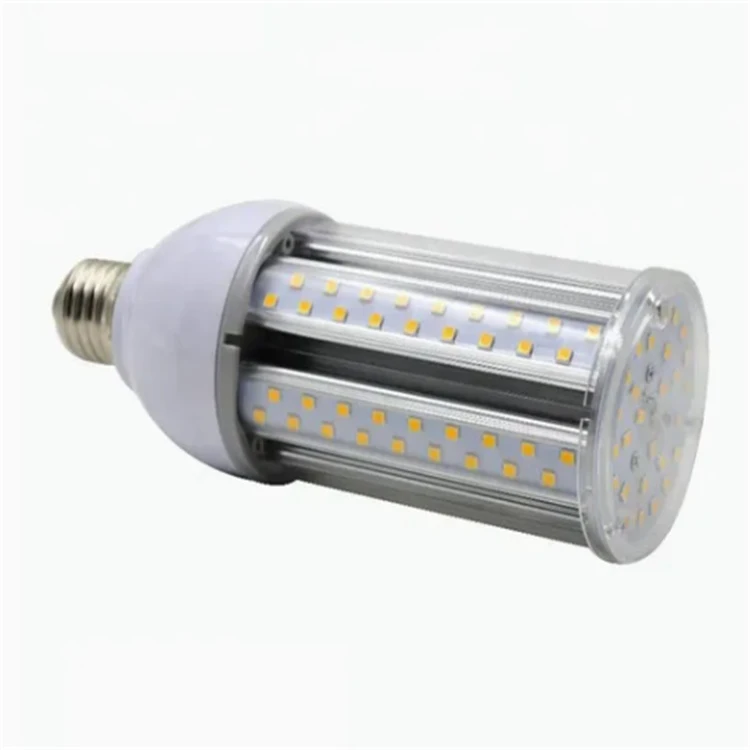

Product Name |
12w LED corn bulb lamp |
|
Input Voltage(V) |
AC110V(±10%), AC220V(±10%), AC85-165V |
LED Light Source |
2700K (Soft Warm White), 5000K (Daylight), 6000K (Daylight Alert) |
|
Power |
12w, 16w, 20w, 24w, 27w, 36w, 45w, 54w, 100w, 125w, 150w, 175w |
Lamp Body Material |
Aluminum Alloy, PC (fireproof) |
Key Features

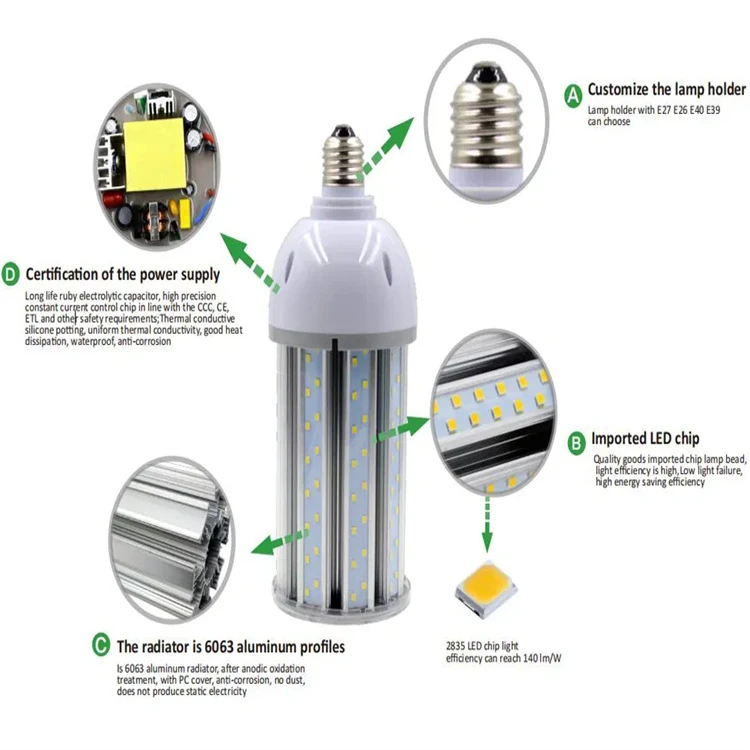

360° Omnidirectional Lighting Distribution Adopts multi-sided PCB layout with 2835 high-efficiency LED chips, achieving full 360-degree light emission. Uniform light distribution curve eliminates dark zones and hotspots, providing soft yet high-brightness output. Luminous efficacy reaches up to 140lm/W, drastically higher than conventional lighting sources.

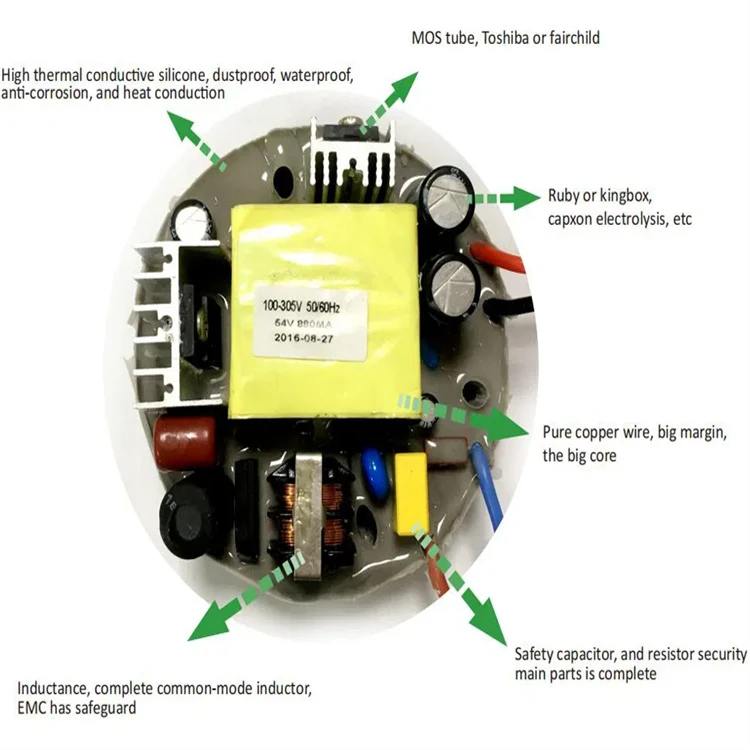

Driver is fully potted with high thermal conductive silicone, realizing dustproof, waterproof, anti-corrosion and excellent heat conduction simultaneously. Wide input voltage 100-305V AC, compatible with global grid voltage fluctuations.
Key Features
Heat Dissipation System & Service Life, Light Attenuation Performance
Heat sink adopts 6063 aluminum profile with anodic oxidation treatment, no static accumulation, dust-resistant and anti-corrosion. Fanless passive cooling design removes fan failure risk, reduces noise and mechanical wear.
High thermal conductivity silicone potting transfers internal heat rapidly from driver to aluminum radiator.
Key Features

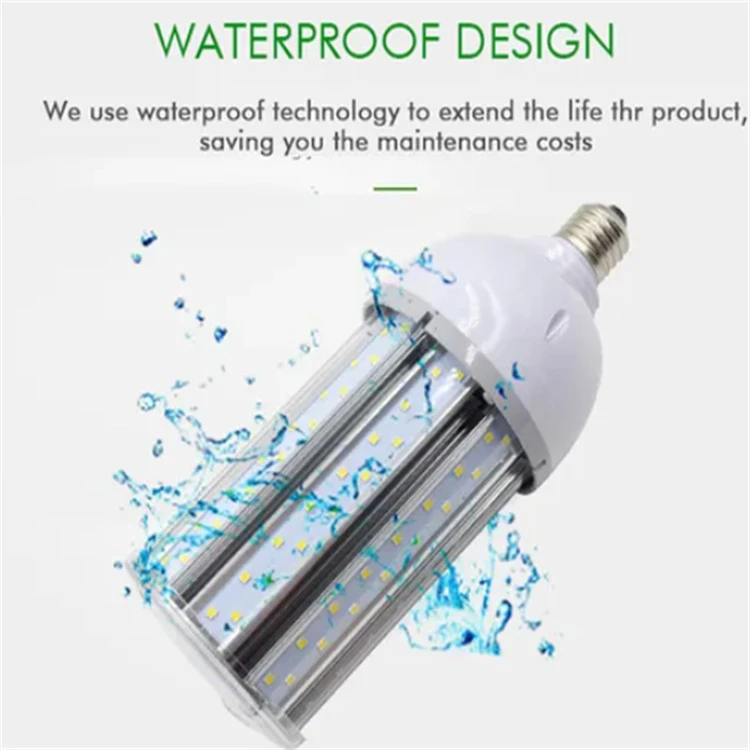

IP64 Protection Grade IP64 ingress protection rating. Fully sealed structure of the power driver. Dust-tight against solid particle infiltration; protected against splashing water from all directions. Suitable for humid, dusty, semi-outdoor and harsh industrial environments, greatly reducing lamp failure rate and maintenance frequency.
