60cm Batten Light

60cm Batten Light
Details:
Features:
1. Outstanding heat-dissipation capabilities. Excellent heat dissipation and a unique cooling structure design are features of the aluminium alloy cooling body.
2. several installation techniques. Support wall-mounted, suspended, embedded, ceiling, and other installation techniques to accommodate varying space needs.
3. modular architecture. Adopt a standardised modular structure that lowers the cost of future use and is simple to replace and maintain.
Send Inquiry
Description
Send Inquiry

Introduction

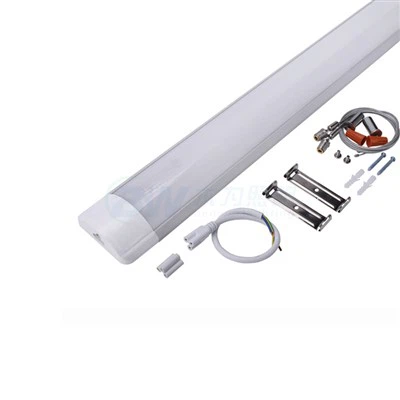

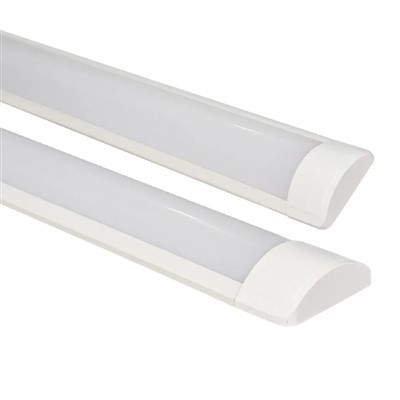

led batten light
Designed for commercial, industrial, and residential settings, LED batten lights are an effective modern lighting solution. Through the integrated construction, its straightforward strip appearance combines cutting-edge LED technology to produce consistent, glare-free lighting. With a service life of up to 50,000 hours and a power consumption reduction of more than 50%, LED batten lights offer significant energy savings over standard fluorescent tubes, lowering maintenance costs and replacement frequency. To guarantee steady light output over extended operating hours, the product uses an aluminium alloy housing with strong thermal conductivity and an optimised heat dissipation structural design. To accommodate varying space needs, support a range of mounting techniques, such as ceiling, embedded, and suspended installation.





Products Features

1. Outstanding heat-dissipation capabilities. Excellent heat dissipation and a unique cooling structure design are features of the aluminium alloy cooling body.


2. several installation techniques. Support wall-mounted, suspended, embedded, ceiling, and other installation techniques to accommodate varying space needs.


3. modular architecture. Adopt a standardised modular structure that lowers the cost of future use and is simple to replace and maintain.





Product specification



Power 20W 30W 40W 60W
Beam angle 120degree
Luminous Effciency (LM/W) 120LM/W 140LM/W 160LM/W
Color Rendering Index (Ra) 80-83RA Or 95-98RA
PF >0.95
Mlaterial Aluminum Body+ PC Cover
Input Voltage(W) AC85- -265V,AC100-277, 12V DC,24V DC
LED Driver Isolated with Rubycon capacitor
Flicker free No flickering
Lifespan (hours) 50000
warranty 5years
Led chip SMD 2835 ,Epistar,Samsung
Cover Milky cover
Feature IP44 non waterproof

Contact now





Usage

p20240509101429239a0







Office/conference space: High colour rendering enhances productivity and lessens eye strain.

Hotel/Restaurant: The dimmable design accommodates various ambiances, including chilled hallways and cosy dining places.





















Our company

Company profile


A seasoned manufacturer of LED lighting, Shenzhen Benwei Lighting Technology Co., Ltd. combines the design, development, manufacturing, and sales of high-tech products into one cohesive unit.

The Shenzhen-based factory was established in 2010. With more than 300 workers and with annual sales of over USD 60 million, we are now a market leader.
