IP 40 LED Batten Light

IP 40 LED Batten Light
Details:

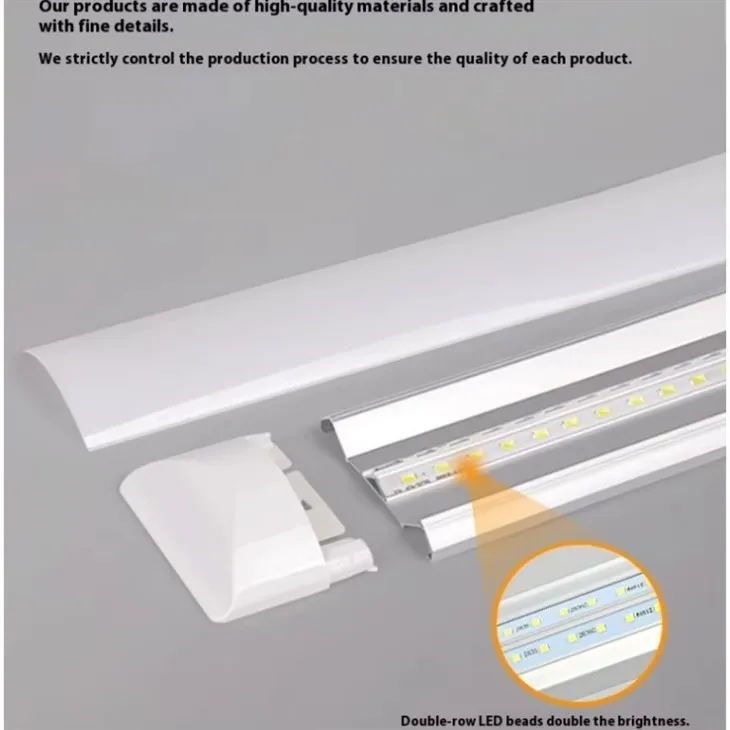

1. Combines a high-efficiency constant-current driver with a dual-row arrangement of 2835 SMD LED chips (Epistar or Samsung choices available). With a luminous effectiveness of 110–120 lm/W, this design doubles the brightness of conventional fluorescent lights while consuming less energy by more than 60%.
2. The fixture's full-power design prevents voltage fluctuations and guarantees flicker-free operation. It considerably lowers lighting electricity costs by efficiently preventing rapid brightness reduction even during extended use.
3. The fixture creates consistent, gentle illumination and provides excellent light transmission thanks to its high-transmittance PC diffuser. It avoids the uneven brightness problems sometimes associated with conventional lighting fixtures because it is free of glare and dark patches.
4. The diffuser has anti-yellowing qualities that make it resistant to ageing and yellowing even after prolonged use. It is perfect for settings that need frequent sanitisation, such hospitals and food processing plants, because of its smooth surface, which is simple to clean and allows for direct wiping.
Send Inquiry
Description
Send Inquiry

Product Attributes
IP Rating IP40 or IP65 Waterproof Certification TUV,CE, ROHS
Lifespan (Hours) 50000 Color Rendering Index(Ra) CRI>80 or CRI >95
Color Temperature(CCT) 3000K,4000K,5000K,6000K,Red, Blue,Green ,Yellow Light Source 240PCS 2835 LED , Epistar & Samsung
Warranty(Year) 5 Material PVC +LED
Beam angle 120° Input Voltage(V) 85-265V or 12/24V DC
Working Temperature(℃) -30 - 50 Control Remote control
IP 40 Batten Light

Product Description

1. The fixture's superior aluminium profile housing and thickened PC cover provide robust resistance to ageing and impact while maintaining a high degree of resistance to deformation or damage.

2. The LED beads are a great option for situations requiring continuous, extended illumination because they have a lifespan of more than 50,000 hours and are covered by a 5-year warranty. This avoids the need for regular light source changes, greatly lowering long-term maintenance expenses.

3. Its broad voltage input range of 85–265V allows it to smoothly adjust to power supply conditions in different locations and guarantee steady operation even in the face of voltage variations.

4. In addition to having integrated over-voltage and over-current protection features that provide users extra peace of mind, the product has international certifications including CE, RoHS, and TUV, guaranteeing electrical safety and compliance.

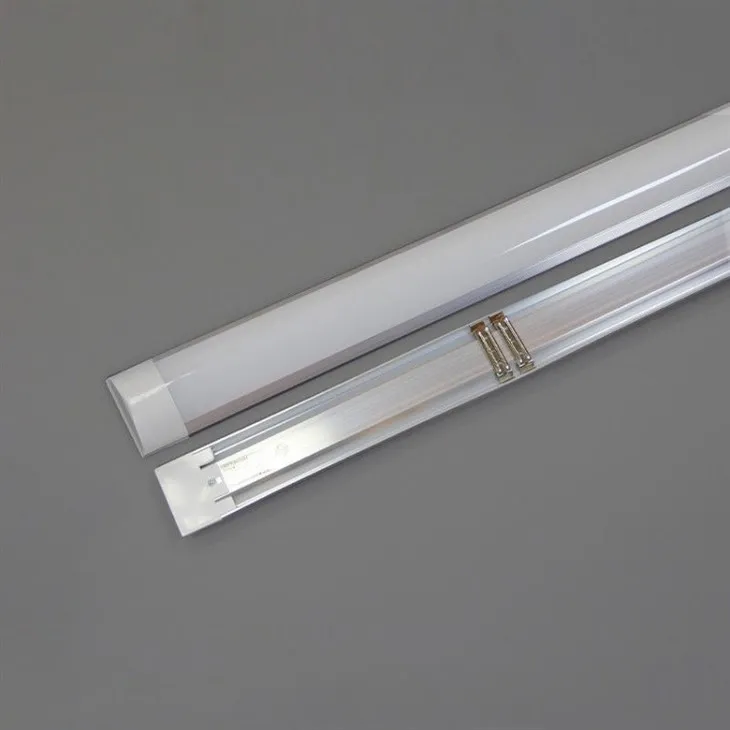

LED Batten Light

An improved lighting option to replace conventional fluorescent fixtures, this integrated LED Batten Light has a fully enclosed, all-in-one structural construction. The luminaire's main components are a full-aluminum profile housing, a high-transmittance PC diffuser cover, and a dual-row array of high-brightness LED beads. It offers dust-proof, anti-fog, and easily cleaned features along with excellent luminous efficacy and flicker-free operation. It is widely used in a variety of contexts, such as offices, hospitals, schools, cleanrooms, supermarkets, and warehouses. It is especially well-suited for places where stringent requirements for consistency in illumination and cleanliness are necessary.
