Products Description
1. The bracket features an angle adjustment knob, allowing for adjustable lamp tilt angles, suitable for pole and wall mounting, and flexible adjustment of the light projection coverage.
2. An independent external driver power supply with an isolated constant current solution resists voltage fluctuations, ensuring stable operation and reducing the probability of failure during long-term outdoor use.
3. Modular, separate design ensures that a failure in one module does not affect the overall operation, facilitating easy maintenance and replacement and reducing operating costs.
4. A wide range of power specifications are available, with lower energy consumption than traditional metal halide lamps, suitable for long-term lighting in stadiums, tunnels, factories, and large storage yards.
| Products Name | Aluminum LED Modular Floodlight | Input Voltage(V) | AC 220V( ± 10%) |
| Color Temperature(CCT) | 5000K (Daylight) | Lamp Luminous Efficiency(lm/w) | 130 |
| Application | Sports Stadiums | Design Style | morden |
| Lifespan (Hours) | 30000 | Warranty(Year) | 3-Year |
| Control | Switch Mode | Color Rendering Index(Ra) | 80 |
| Support Dimmer | no | Switch Type | Manual switch |
| Material | Aluminum profile+PC lens | Lighting solutions service |
Lighting And Circuitry Design |
| Light Source | led | Led chip | SMD3030 |
| Product Weight(kg) | 5.26 | Working Temperature(℃) | -25 - 50 |
| Lamp Luminous Flux(lm) | 6500 | Power Factor | >0.90 |
| Power | 9W | Item Type | Flood Light |
| Shape | square | IP Grade | IP65 |
| Installation | hang | Certification | CE, Ul, ETL |
More Detial

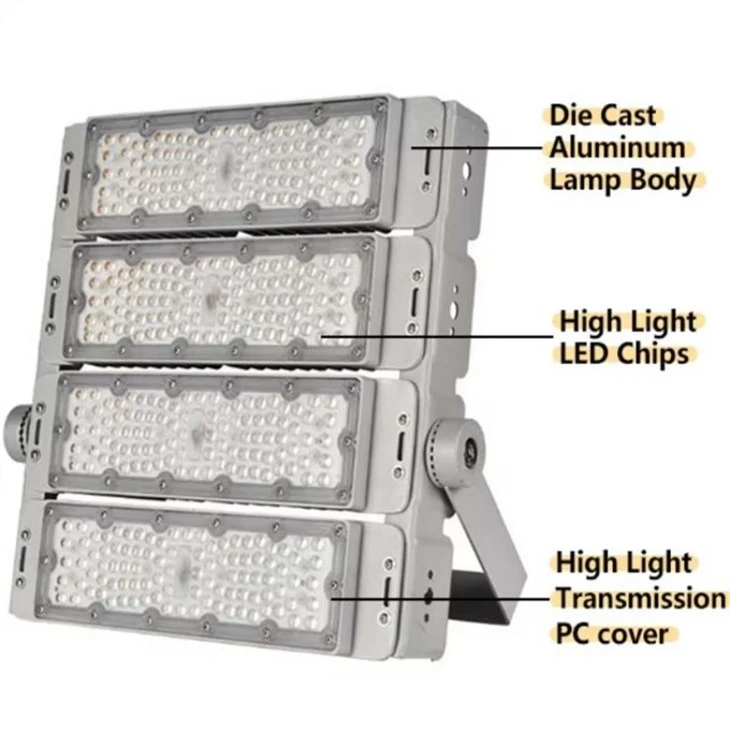

This modular LED floodlight is a high-power outdoor industrial lighting fixture. It features a modular, modular structure with flexible power options. The die-cast aluminum heat sink housing meets IP65 protection standards, making it suitable for various complex outdoor working conditions. The pressure-resistant PC light-transmitting cover is robust and durable, and the adjustable mounting bracket facilitates on-site lighting setup and adjustment. An external constant current driver ensures continuous and stable output. The modular design significantly simplifies maintenance; damaged individual modules can be replaced individually without replacing the entire light. It is widely used in sports stadiums, highway tunnels, industrial parks, logistics yards, large squares, construction sites, and other locations, providing both long-term daily lighting and nighttime work lighting.
