comparison of product parameters
|
Installation Style |
Recessed |
Input Voltage(V) |
AC 85-265V |
|
Application |
Indoor |
IP Rating |
IP33 |
|
Color Temperature(CCT) |
3000K-4000K-6000K |
Lamp Luminous Efficiency(lm/w) |
90 |
|
Lifespan (Hours) |
50000 |
Warranty(Year) |
1-2-Year |
|
Support Dimmer |
No |
Light Source |
LED |
|
Lamp Body Material |
Aluminum+PC |
Design Style |
Modern |
|
Feature |
Anti-Glare, High Brightness, Eco-Friendly, Durable, Easy Installation |
Switch Type |
Touch On/Off Switch |
|
Bulb Type |
LED |
Color Rendering Index(Ra) |
80 |
|
Beam Angle |
120 Degrees, Other |
Lighting solutions service |
Auto Cad Layout, Agi32 Layout, Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Project Installation |
|
Place of Origin |
Guangdong, China |
Lamp Luminous Flux(lm) |
90 |
|
Product Weight(kg) |
0.68 |
Product name |
Led Recessed Downlight |
|
Keyword |
Recessed Led Light Downlight |
Feature |
Adjustable Light Direction |
Core Performance & Optical Precision

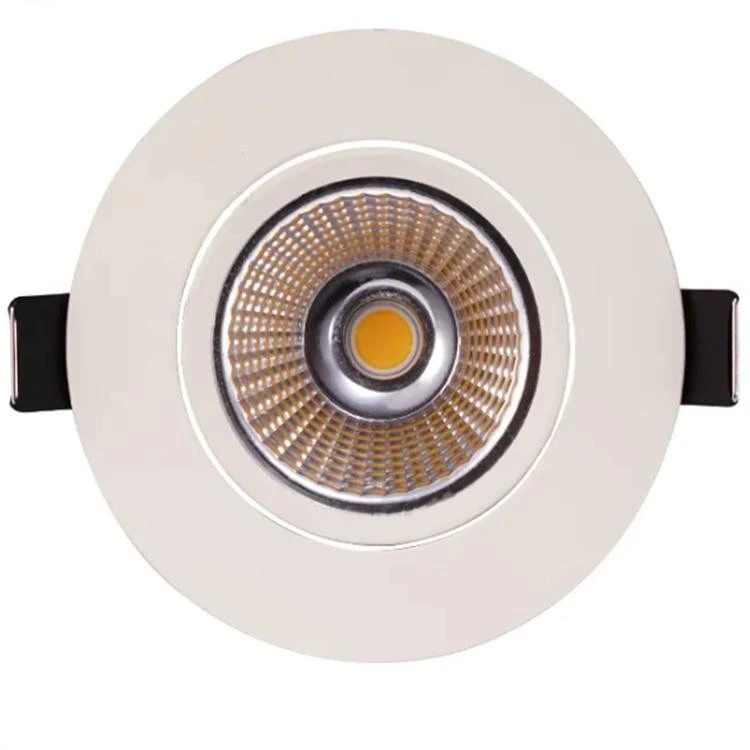

High-Brightness COB Core: At the heart of this luminaire is a premium COB (Chip-on-Board) LED array, driven by a constant-current system to ensure stable, flicker-free output. This architecture delivers high luminous efficacy with minimal power consumption, outperforming traditional halogen and compact fluorescent sources by a wide margin.
Advanced Anti-Glare Optics: Featuring a precision-engineered honeycomb lens, this downlight achieves a Unified Glare Rating (UGR) of <19, effectively eliminating harsh glare and secondary shadows. The result is soft, visually comfortable light that reduces eye strain-an essential criterion for offices, hospitality, and residential comfort.

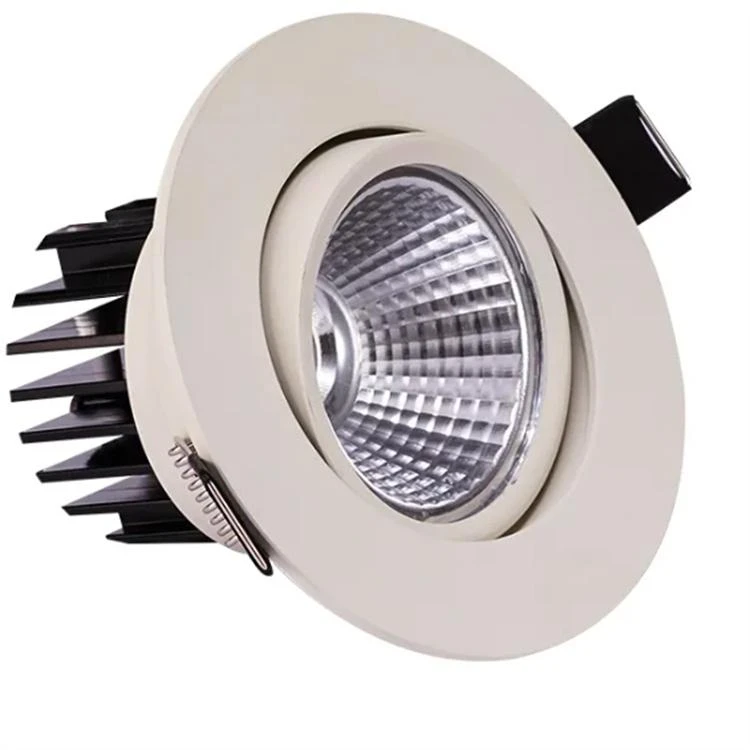

Optimized Beam Control: The deep-set optical design and textured lens provide controlled light distribution with uniform illuminance, preventing light spill and creating a clean, focused accent on walls, displays, or work surfaces.
Thermal Engineering & Lifespan

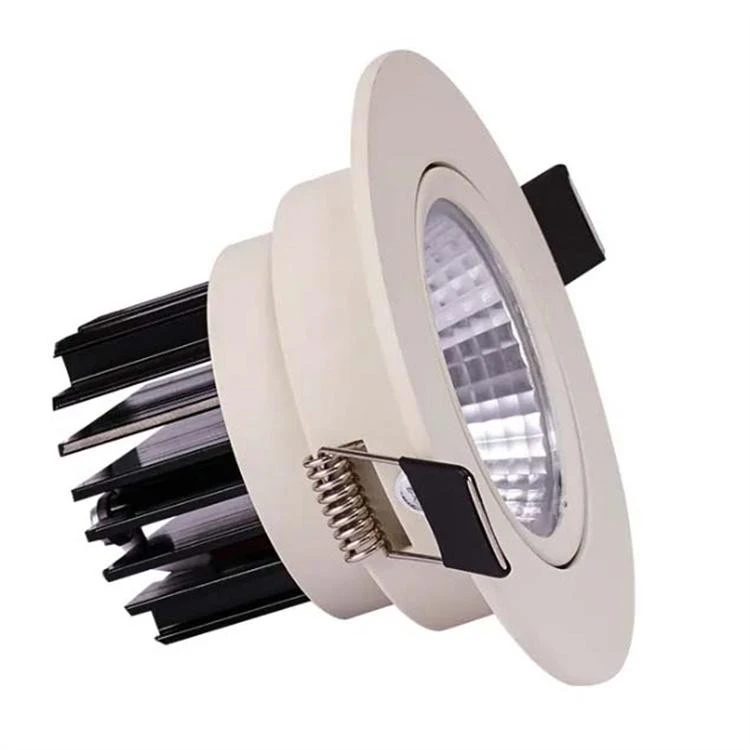

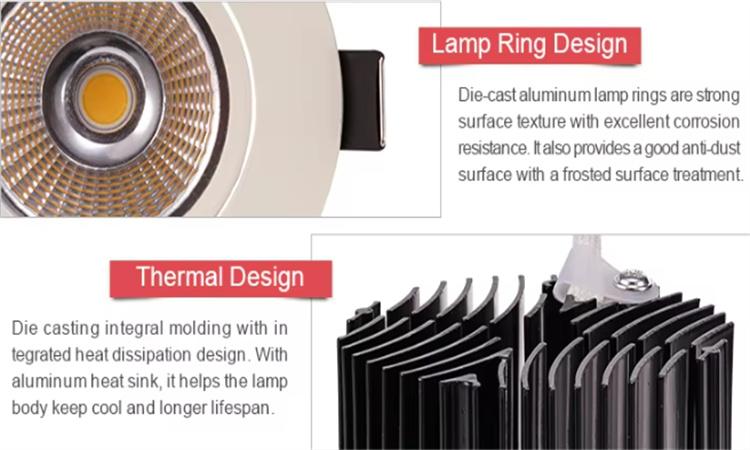

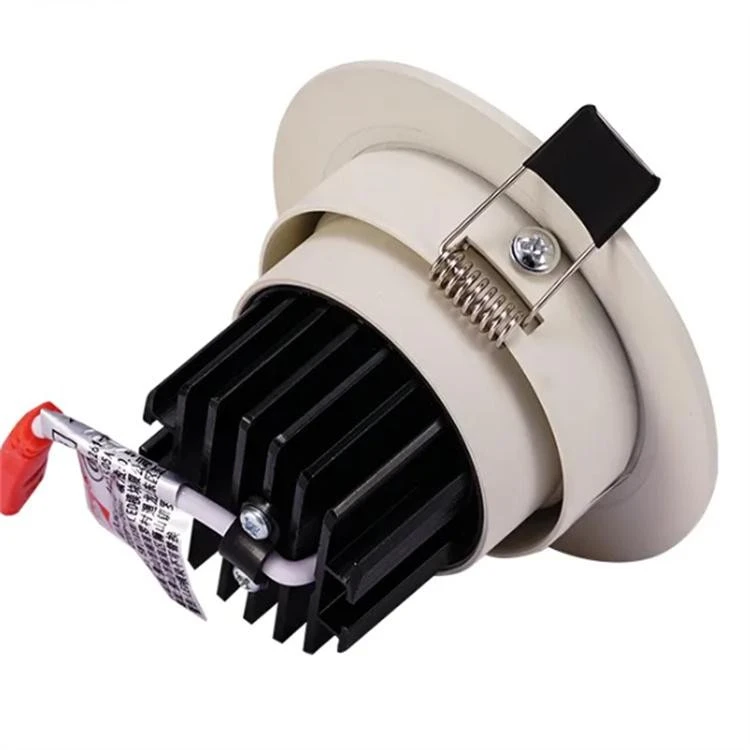

Die-Cast Aluminium Heat Sink: The lamp body features an integrated, finned heat sink crafted from high-purity die-cast aluminium. This design maximizes the surface area for rapid convective cooling, keeping the LED junction temperature well within optimal limits even during prolonged operation.
Extended Service Life: By effectively managing thermal load, the system drastically reduces degradation of the phosphor and chip. This fixture is rated for a lifetime of >50,000 hours (L70), meaning it maintains at least 70% of its initial luminous flux after five decades of typical nightly use. This translates to over a decade of maintenance-free operation in most commercial settings.
Low Light Decay & Energy Efficiency
Ultra-Low Lumen Depreciation: The synergy between the COB chip and thermal design results in exceptional lumen maintenance. Light decay is held to less than 3% after 1,000 hours and below 1.2% in validated configurations, ensuring your lighting design remains consistent and bright year after year.
High Power Factor & Low Loss: Operating with a power factor of >0.95 and a highly efficient driver, the fixture minimizes reactive power and internal losses, delivering more usable light per watt and reducing strain on electrical infrastructure.
