Key attributes
| Input Voltage(V) | AC 220V( ± 10%) | Color Temperature(CCT) | 3000K 4000K 6000K |
| Lamp Luminous Efficiency(lm/w) |
80 |
Warranty(Year) | 3-Year |
| Material | Aluminum | IP Rating | IP54 |
| Lighting solutions service | Dialux Evo Layout | Light Source | LED |
| Color Rendering Index(Ra) | 93 | Lifespan (Hours) | 25000 |
Product Feature：

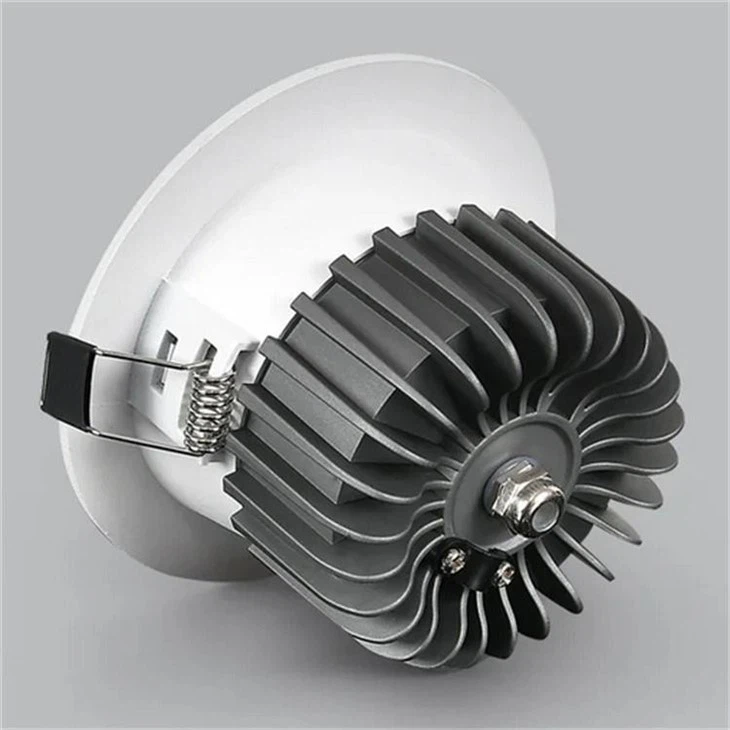

1. Superior Heat Dissipation with Integrated Aluminum Radiator
Featuring a high-efficiency thickened aluminum radiator with an air turbine design, it achieves rapid heat dissipation. This effectively lowers the operating temperature of the LED beads, ensuring stable performance and significantly extending the overall lifespan of the fixture.
2. Professional Deep Anti-Glare Design (Eye Protection)
Boasting a 55mm deep light source cavity and a shading angle of >30°, the light is deeply embedded to avoid direct exposure to the human line of sight. The refractive material deepened lampshade effectively eliminates glare, protecting your eyes from strain and providing a healthy, comfortable lighting experience.
3. High Color Rendering (Ra ≥ 93)
Equipped with premium quality LED chips, the downlight delivers an exceptional Color Rendering Index (Ra ≥ 93). It accurately restores true colors with low saturation distortion, making it ideal for spaces where color accuracy is crucial-such as kitchens, art galleries, and retail displays.
Product Feature：

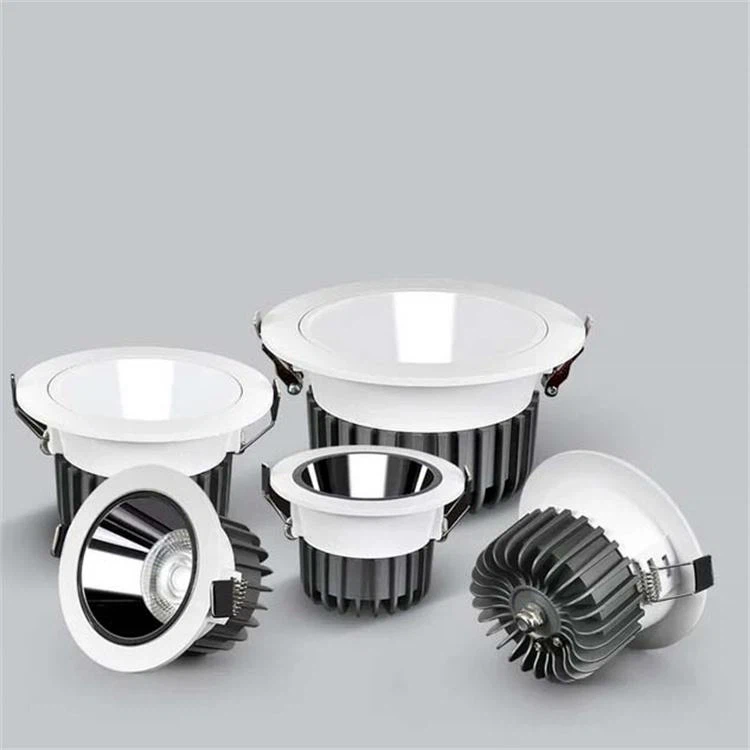

1. Multi-Color & Versual Aesthetic Options
Multi-color lamp cups (Bright white, Bright silver, Rose gold, etc.) are available for selection. You can customize the fixture's appearance to match different interior decoration styles, from minimalist modern to luxurious, adding a stylish touch to any space.
2. Dual-Mode Installation & Space-Saving
Supports both embedded (recessed) and surface mount installation methods. The recessed design creates a clean, flush look for standard ceilings, while the surface mount option is perfect for flat surfaces that don't allow cutting, making it highly versatile for various environments.
3. Efficient & Energy-Saving LED Source
Utilizing advanced COB LED technology, it provides bright, uniform illumination while consuming significantly less power than traditional lighting. It is energy-efficient, eco-friendly, and reduces long-term electricity costs.
4. Durable & Easy-to-Install Hardware
Equipped with spring card buckles (stainless steel spring clips), installation is quick, tool-free, and secure. The high-quality aluminum face ring and nano reflector cup ensure structural durability, corrosion resistance, and optimal light reflection.
Step-by-Step Usage & Installation Guide
📋 Pre-Installation Preparation
Safety First: Turn off the power supply at the circuit breaker to avoid electric shock.
Check Ceiling/ Surface:
For Recessed Installation: Confirm the ceiling cutout size matches the downlight and ensure sufficient space behind.
For Surface Mount: Ensure the surface is flat and sturdy to support the fixture.
Gather Tools: Basic screwdriver, wire strippers, and a voltage tester (for safety checks).
🔌 Installation Methods
Method 1: Recessed (Embedded) Installation
Cut the Hole: Drill a standard hole in the ceiling according to the fixture's size requirements.
Wiring Connection: Connect the AC power wires (live, neutral, ground) to the downlight's driver, following local electrical codes. Ensure all connections are secure and insulated.
Secure the Fixture: Compress the stainless steel spring clips on both sides of the downlight. Insert the fixture into the ceiling hole, then release the clips. The springs will expand and grip the ceiling tightly for a stable fit.
Final Check: Push the trim flush against the ceiling for a seamless finish.
Method 2: Surface Mount Installation
Mount the Base: Attach the surface-mount base plate to the flat surface (wall/ceiling) using screws, ensuring it is level and firmly fixed.
Wiring: Connect the power wires to the internal driver of the fixture.
Assemble the Fixture: Snap the downlight body onto the pre-installed base plate until it clicks into place.
💡 Post-Installation & Maintenance
Power On: Restore the power supply and test the light to ensure it functions correctly.
Adjust as Needed: Use the multi-color lamp cup options to customize the look, or adjust the brightness (if dimmable model) with a compatible dimmer switch.
Cleaning: Turn off the power before cleaning. Wipe the aluminum trim and lens with a soft, dry cloth. Avoid harsh chemicals to prevent damage to the finish and optical surfaces.
Inspection: Periodically check the spring clips and wiring connections to ensure the fixture remains secure and safe.
