Key attributes
| Input Voltage(V) | 230 | IP Rating | IP40 |
|
Lamp Luminous Efficiency(lm/w) |
100 | Lifespan (Hours) | 50000 |
| Color Temperature(CCT) | 3000-6000K | Color Rendering Index(Ra) | 80 |
| Lamp Body Material | Aluminum | Lighting solutions service | Dialux Evo Layout |
| Lamp Luminous Flux(lm) | 4000 | Working Temperature(℃) | -20 - 40 |
|
Color Temperature(CCT) |

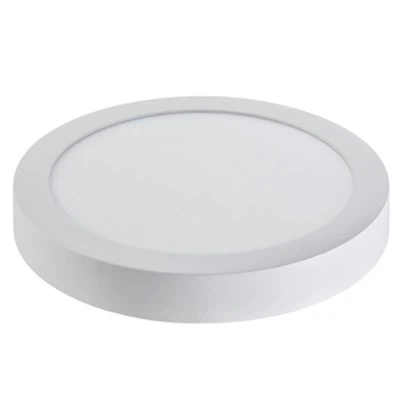

2700-6500k | Product name | Led Ceiling Panel Light |
1.Structure & Materials
Backplane: Constructed from a robust 0.3mm iron plate, the backplane undergoes precision surface spraying to enhance corrosion resistance and wear resistance. It fully complies with the ISO 2409: 2013 standard, guaranteeing excellent coating adhesion and long-term durability even in demanding environments.
Frame: Made from thickened 6063 aluminum alloy, the frame is fabricated with seamless welding technology to eliminate weak points and ensure structural integrity. The surface spraying finish not only gives it a sleek appearance but also aligns with ISO 2409: 2013, offering outstanding resistance to scratches, fading, and environmental corrosion.
Overall Thickness & Protection: With a slim profile of 32mm, the panel maintains a clean, modern aesthetic while providing an optional IP44 protection rating. This rating effectively prevents dust ingress and resists splashing water, making it suitable for a wider range of commercial and residential applications, including bathrooms, kitchens, and office spaces.
2. Optical Performance & Durability
Diffuser: Engineered for superior visual comfort, the diffuser boasts a low-glare design with UGR<22 or UGR<19, effectively reducing eye strain and creating a soft, uniform lighting environment. It has successfully passed the rigorous 0.2 N.m mechanical strength test, demonstrating exceptional resistance to impact and deformation, ensuring consistent light distribution without dark spots or uneven illumination across the entire panel surface.
Lens & Light Source: The panel is equipped with a high-performance Mitsubishi PMMA lens, securely bonded with kafuter glue to maintain optical precision over time. This lens system is specifically designed for a 20-year service life, delivering stable light output and excellent light transmittance. The SMD LED chips are evenly distributed to maximize luminous efficiency and ensure consistent, flicker-free illumination, reducing energy consumption while extending the product's operational lifespan.
1. Frame Details
The frame is made of high-quality thick aluminum, offering robust structural support and excellent heat dissipation.
The precise, angular corner design highlights the frame's durability and refined craftsmanship, contributing to the product's long service life.
2. Lighting Performance
The panel is engineered to deliver uniform light output without dark areas, ensuring even and consistent illumination across the entire surface.
The optimized light distribution eliminates harsh shadows, creating soft, comfortable lighting that reduces eye strain.
4. Light Source & Chip Design
The SMD LED chips are evenly distributed on both sides of the lamp body, which enhances luminous efficiency and guarantees stable, flicker-free light emission.
This dual-sided chip arrangement ensures balanced light spread, maximizing coverage while maintaining energy efficiency.
Our firm prides itself on owning its own factory, guaranteeing complete control over the production process and the quality of our goods. We are not only agents; we are manufacturers committed to offering our clients the most competitive rates available. We invite consumers to evaluate our samples first, as we are assured that the quality and pricing of our items are self-evident. Our dedication to excellence and client satisfaction compels us to consistently perform at our best and provide superior quality products.
Our address
3rd Floor, 5th Building, Hebei Industrial Park, Hualian Community, Longhua District, Shenzhen, China
01
High Quality
5 years warranty (even loger)
02
Advanced Equipment
That is why we can provide the best price for the customer.
03
Professional Team
Giving the best design plan for you at once!
04
Custom Service
Treat you like our family, in time, precise, professional and reliable.
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 30 days for order quantity more .
Q3. How do you ship the goods ?
A: By express, by air, by sea .
Q4. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on products ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
