Easy Installation Recessed Ceiling Lamp

Easy Installation Recessed Ceiling Lamp
Details:

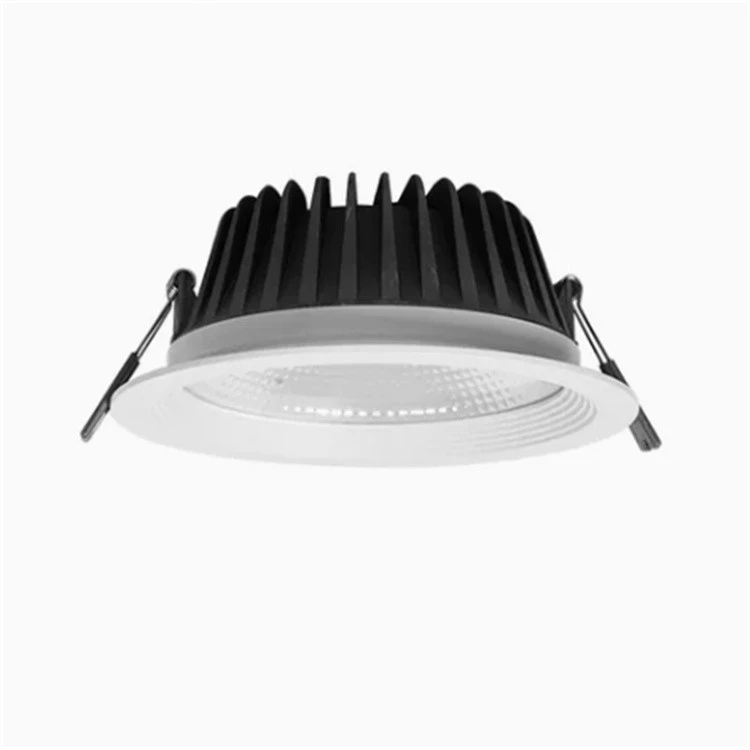

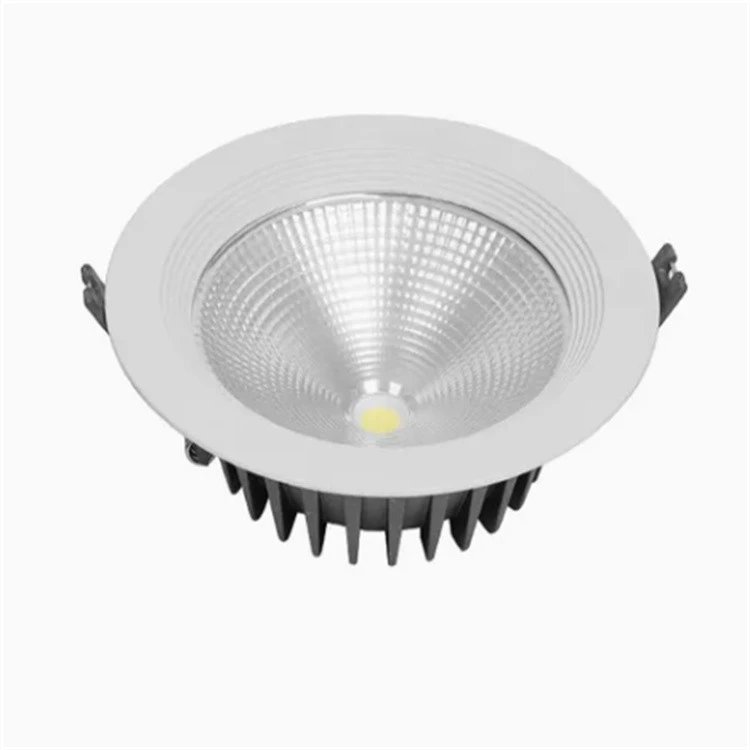

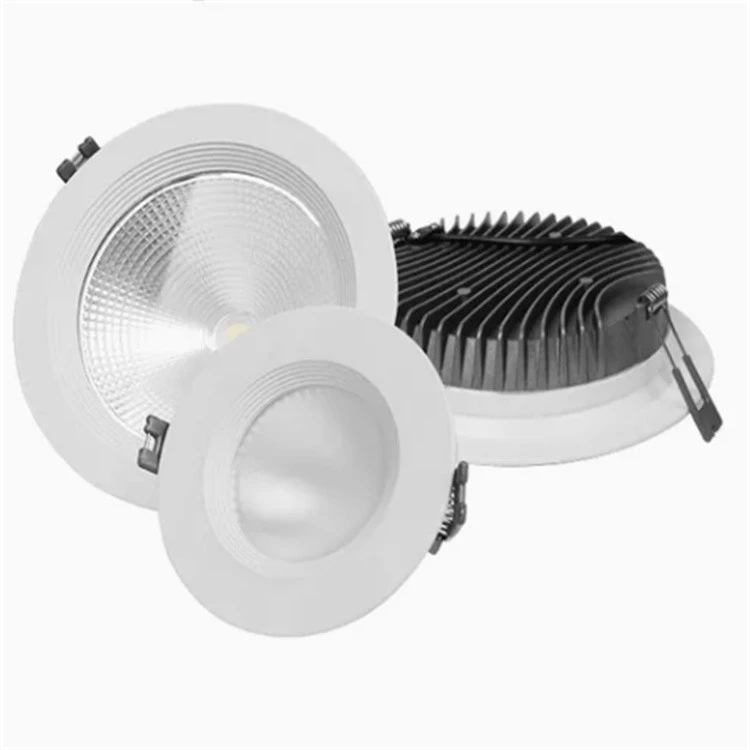

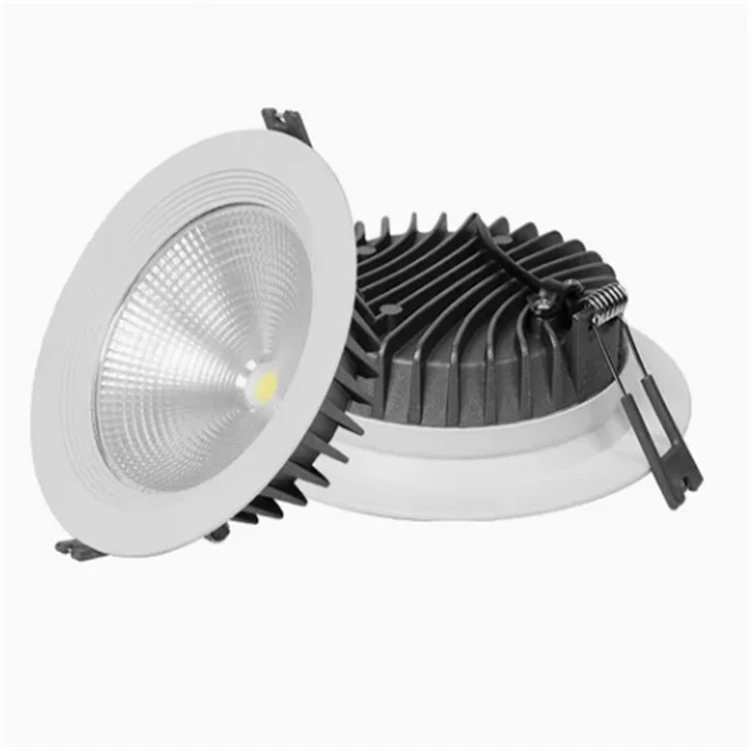

High‑performance recessed COB LED downlight built with die‑cast aluminum heat sink. Featuring high CRI≥90, excellent color rendering, reliable thermal dissipation, this ceiling downlight delivers stable, comfortable lighting for residential, hotel and commercial indoor projects. Quick spring‑clip recess mounting saves installation time; customized lamp cup colors are supported for diversified interior decoration demands.
Send Inquiry
Description
Send Inquiry


comparison of product parameters

Installation Style

Downlights

Input Voltage(V)

AC 200-240K

Application

Home Office

Color Temperature(CCT)

3000K/4000K/6000K

Lamp Luminous Efficiency(lm/w)

80

Lifespan (Hours)

30000

Warranty(Year)

3-Year

Support Dimmer

No

Light Source

LED

Lamp Body Material

Aluminum

Design Style

Modern

Switch Type

Touch On/Off Switch

Color Rendering Index(Ra)

80

Lighting solutions service

Lighting And Circuitry Design, Auto Cad Layout, Onsite Metering, Project Installation

Place of Origin

Guangdong, China

Lamp Luminous Flux(lm)

960

Product name

Linear SMD Down Light

Color

White

Material

Aluminum

LED

SMD

Installation

Recessed

Shape

Rectangle/Square

Beam Angle

60°

Power

12w



smart led downlights

Lighting Performance & Color Rendering

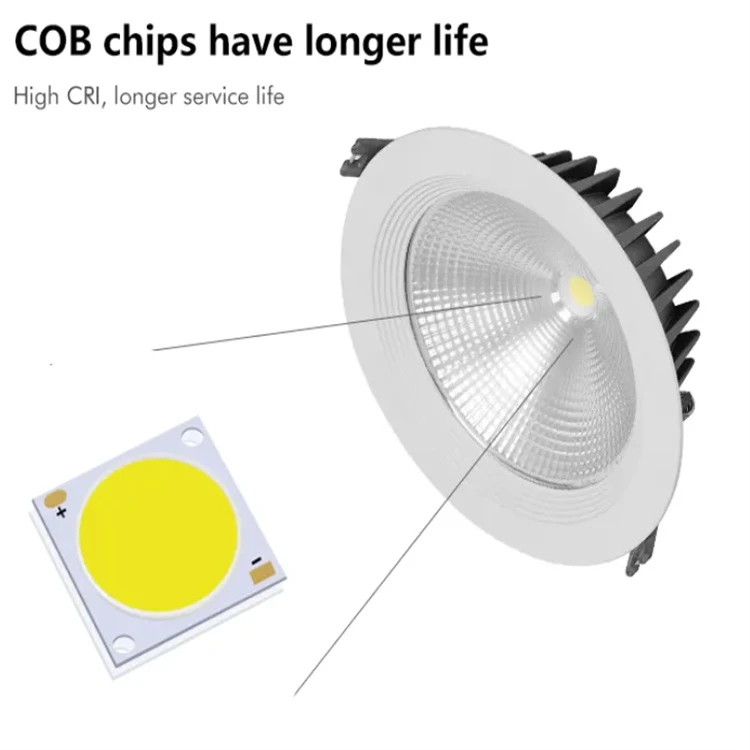

Utilises a COB integrated LED light source of advanced grade and premium quality. A colour rendering index (CRI) of 90 or above accurately recovers the original colour of items and clearly displays the texture of artwork, furniture, and ornamental surfaces. When compared to standard CRI80 downlights, it significantly reduces the amount of colour distortion that occurs. In order to provide a soft, anti-glare output, uniform beam distribution, and the absence of local hot spots, a high-transparency textured optical lampshade is used. In order to fulfilll the many needs for ambient lighting, there are several colour temperature choices available, including warm white, neutral white, and cool white. A high luminous efficiency reduces the amount of power that is used on a daily basis for lighting.



Heat Dissipation Structure, Light Decay & Service Life

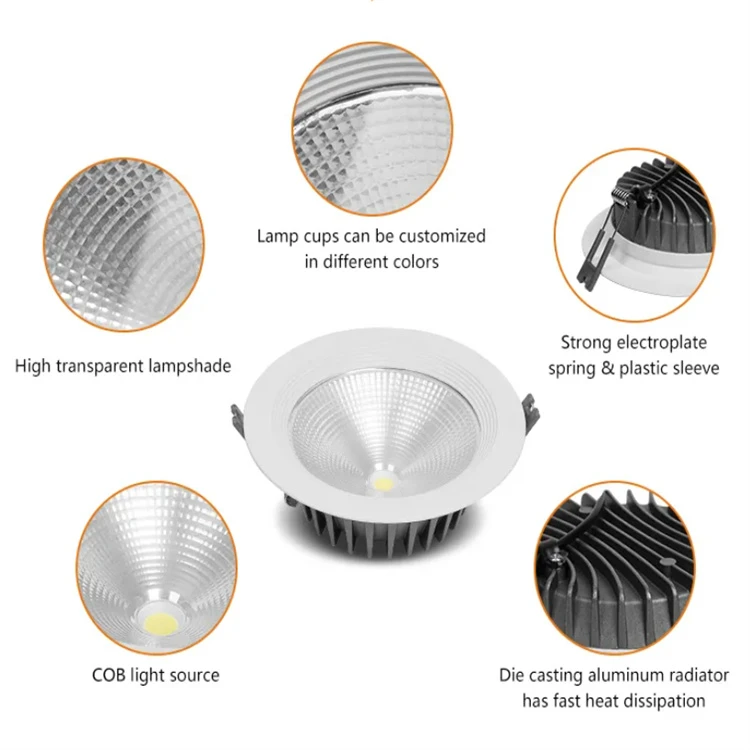

The use of a heavy-duty die-casting aluminium radiator that has a thick fin-shaped cooling structure greatly increases the surface area that is capable of dispersing heat. During long-time operation, the heat created by the COB chip is promptly dissipated via the use of heat conduction that is both efficient and speedy. An exceptional thermal management system prevents LED chips from overheating, which is the primary factor that slows down the luminous degradation process. The performance of controlled low light attenuation is such that during long-term continuous operation, the lumen maintenance stays at a very high level. A working lifetime of up to 50,000 hours is considered to be the typical rate. There is a significant reduction in the amount of labour required for maintenance and the expense of replacing lamps on a regular basis in commercial venues such as retail malls, hotels, and office buildings. The use of sturdy reinforced electroplated metal spring clips with plastic sleeves guarantees a secure locking mechanism inside the ceiling cut-out, so preventing the danger of falling after years of use.

shallow downlights



integral led downlight

Protection Grade & Safety Features



This product has an IP20 protection certification, making it ideal for dry indoor ceiling recessed installation. In addition to preventing inadvertent finger contact with interior live components, it is able to withstand solid foreign objects that are bigger than 12.5 millimetres. It is not meant for use in wet environments, such as bathrooms or outdoor settings. Strictly complies with standard electromagnetic compatibility and safety criteria, reliable anti-surge performance helps withstand voltage fluctuations that occur for short periods of time. Mercury-free, free of UV radiation, environmentally beneficial, and non-hazardous.
