comparison of product parameters
|
Cut Out |
110mm |
Installation Style |
Recessed |
|
Input Voltage(V) |
AC 220V( ± 10%) |
Application |
Indoor |
|
IP Rating |
IP20 |
Color Temperature(CCT) |
3000K/3500K/4000K |
|
Lamp Luminous Efficiency(lm/w) |
80 |
Lifespan (Hours) |
50000 |
|
Warranty(Year) |
3-Year |
Support Dimmer |
No |
|
Light Source |
LED |
Lamp Body Material |
Aluminum |
|
Design Style |
Modern |
Feature |
Anti-Glare, High Brightness, Eco-Friendly, Durable, Easy Installation |
|
Bulb Type |
LED |
Color Rendering Index(Ra) |
97 |
|
Beam Angle |
110° |
Lighting solutions service |
Lighting And Circuitry Design |
|
Place of Origin |
Guangdong, China |
Lamp Luminous Flux(lm) |
960 |
Core Optical Performance
1. Premium Multi-Ribbed PC Cover with UV Resistance
Imported anti-UV polycarbonate front cover, effectively blocks ultraviolet light from long-term light radiation, no yellowing, discoloration or surface cracking after years of continuous operation.
Uniform light diffusion treatment eliminates harsh glare, soft eye-friendly light output, zero stroboscopic flicker to relieve visual fatigue for long-time indoor activities.
2. Unique Lace Bubble PC Reflector Optical Structure
Custom lace bubble concave-convex reflection mold design optimizes light refraction path, boosting overall lumen efficiency by 18% vs ordinary flat downlights.
High reflectivity matte PC reflector maintains stable light output without brightness attenuation under 24/7 long-hour operation, no reflective layer peeling or fading.
Additional Commercial Value

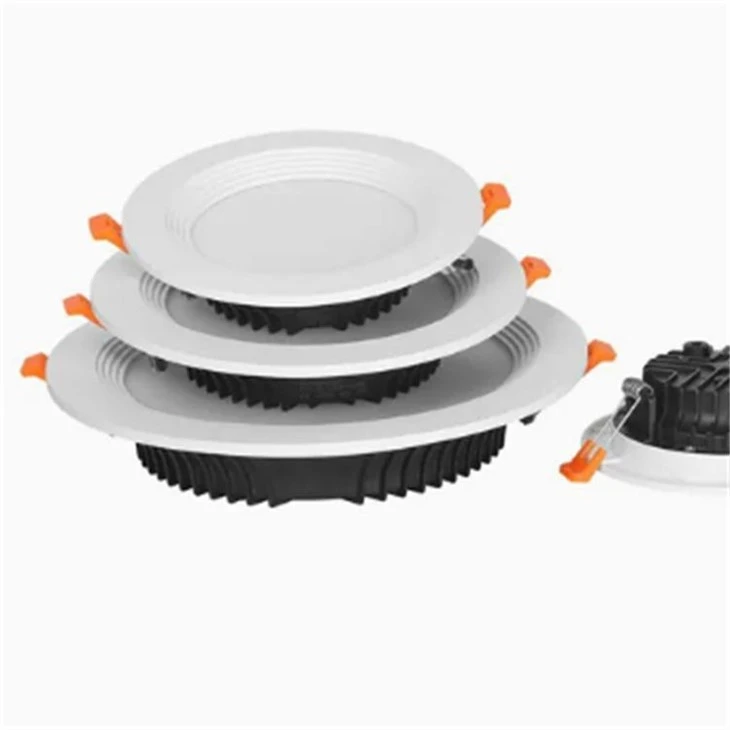

Three Sizes Universal Matching
Available in 3 different cutout diameters, covers small space auxiliary lighting, medium area main lighting and large-area commercial uniform lighting, one series meets all project size demands.
Simple & Fast Recessed Installation

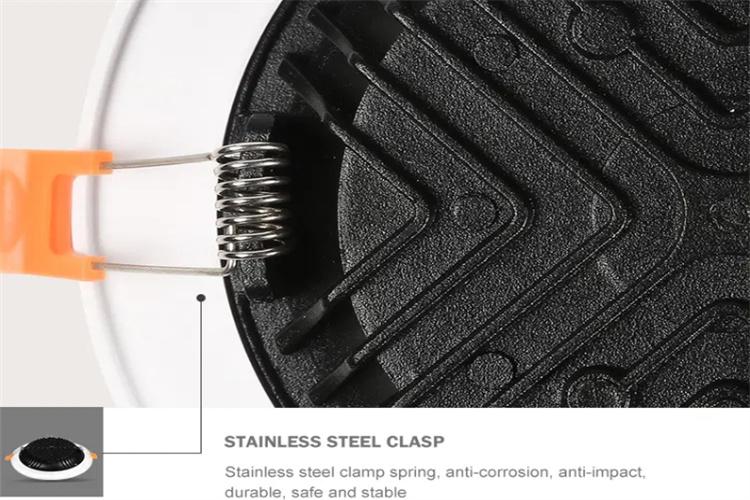

Spring buckle pop-in design, no extra fixed brackets required, single worker completes installation in 10 seconds per lamp, saves construction labor time and cost for large-scale engineering orders.
Zero Post-Installation Maintenance Cost
Long lifespan + ultra-low light decay + anti-dust anti-corrosion structure, no frequent lamp replacement, cleaning or part repair after project delivery, extremely high return on investment for hotel, mall, office long-term operation.
Protection Grade & Safety Structure Performance
Dust-Proof Protection Standard
Front light-emitting surface IP40 dust-proof rating, tight fitting between PC cover and aluminum frame, blocks floating dust, plaster debris and tiny particles from entering internal lamp cavity.
Dust accumulation prevention avoids dust covering light source and reflector which causes brightness drop and heat dissipation blockage, reduces cleaning maintenance loss.
Full Safety Wiring & Installation Protection Design
Patented crimp buckle wiring terminal: tool-free wire connection, firm crimp lock prevents wire loosening, poor contact and hidden fire hazards; stable and durable for repeated disassembly and installation.
Thickened high-temperature resistant silicone wire, heat-resistant up to 180℃, anti-aging insulation layer, no melting or cracking under long-term lamp heat radiation.
