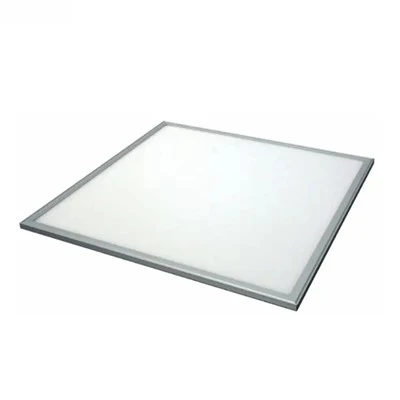

Frameless Panel Light

Lighting Performance

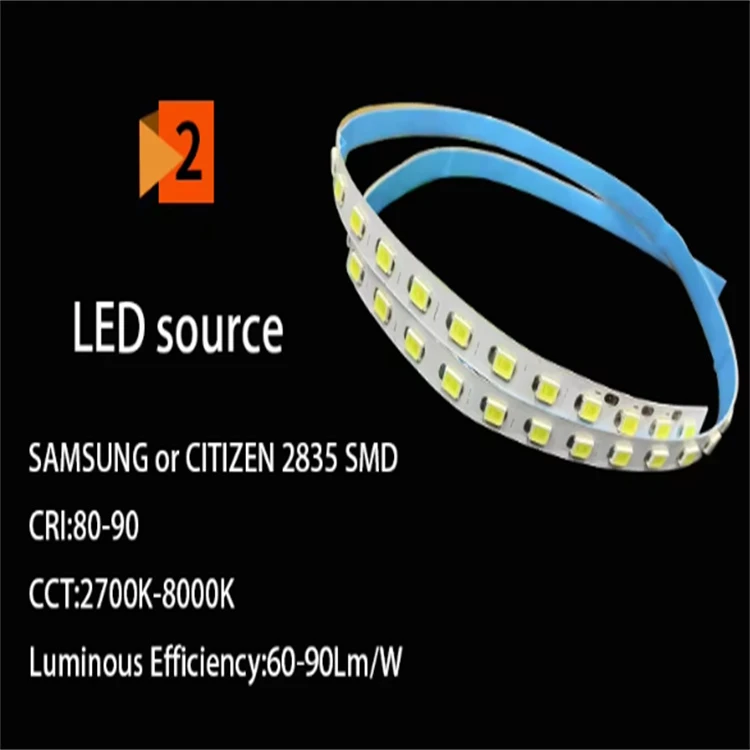

Utilising either Samsung or Citizen 2835 SMD LED chips, this premium LED light source is made available. A colour rendering index (CRI) value that is between 80 and 90 properly recovers the original colour of things.

High Luminous Efficiency: With a high luminous efficiency of 60 to 90 Lm/W, this device converts a greater amount of electric energy into visible light rather than waste heat.

Wide CCT Range: Colour temperature can be adjusted from 2700K warm yellow all the way up to 8000K cold daylight, which allows it to suit the diverse ambiance needs of a variety of interior décor styles.

The professional constant-current LED driver prevents apparent light flickering, effectively preserving human eyes and decreasing visual strain for long-term indoor working. This lighting solution is known as flicker-free lighting.

The multi-layer optical structure, which includes a lamp cover, a PC diffuser sheet, a glass panel, and luminescent paper, is responsible for achieving even and diffused illumination. This structure produces a light distribution that is soft, glare-free, and uniform, without any local bright spots.

Service Life & Light Decay(Loss) Performance

Optimized Aluminum Heat‑dissipation Housing: New high‑quality aluminum lamp body conducts working heat away rapidly. Lower internal operating temperature greatly slows down LED chip light attenuation speed.

Long Rated Lifespan: Expected working lifespan reaches up to 30,000‑40,000 hours under normal operating condition.

Slow Lumen Depreciation: Thanks to reliable constant‑current drive & outstanding thermal management, lumen loss is kept at low level. Only slight brightness drop after long‑term continuous use; no fast darkening in early usage phase.

Stable Circuit Performance: The dedicated LED constant‑current driver comes with 2‑year official warranty, stable power output prevents over‑current damage toward LED light board, extending the whole fixture service cycle.

Wide Input Voltage Tolerance: Accepts AC 165V‑265V input within 50/60Hz power grid. Strong anti‑fluctuation capacity against unstable mains voltage, avoiding premature ageing caused by voltage surge.

Protection Grade & Structural Reliability

Ingress Protection Rating: IP40. Effectively prevents large‑size solid dust particles from entering the inner lamp assembly. Suitable for dry indoor ceiling environments (living space, office, retail shop, hotel interior).

Robust multi‑layer optical assembly: The composite optical stack (Lamp cover + PC diffuser + glass sheet + luminescent paper) resists slight surface scratch, delivers steady light output over years.

Flexible orange spring‑loaded mounting clips: User‑friendly embedded installation for ceiling cut‑out openings; the spring clips hold the lamp firmly on gypsum ceiling panels without falling risk.

Ultra‑thin profile design: Minimal back‑body depth, perfectly fits shallow ceiling cavities where standard deep downlights cannot be installed.

**Safe isolation on internal driver circuit: built‑in filtering capacitor components suppress electrical interference, satisfying general indoor safety lighting requirements for commercial & household projects.
