comparison of product parameters
|
Installation Style |
Downlights |
Input Voltage(V) |
AC 85-265V |
|
Application |
Hotel Home Office Apartment |
IP Rating |
IP54 |
|
Color Temperature(CCT) |
3000K 4000K 6000K |
Lamp Luminous Efficiency(lm/w) |
85 |
|
Lifespan (Hours) |
50000 |
Warranty(Year) |
3-Year |
|
Support Dimmer |
No |
Light Source |
LED |
|
Lamp Body Material |
Aluminum |
Design Style |
Modern |
|
Switch Type |
Touch On/Off Switch |
Color Rendering Index(Ra) |
80 |
|
Lighting solutions service |
Lighting And Circuitry Design, Project Installation |
Place of Origin |
Guangdong, China |
|
Lamp Luminous Flux(lm) |
1080 |
Product Weight(kg) |
0.133 |
|
Application |
Hotel Home Office Apartment |
Product name |
Led Recessed Downlight |
|
Keyword |
Ceiling Spot Downlight |
Power |
5W7W12W20W30W |
|
Material |
Aluminum+Plastic |
Installation |
Embedded Installation |
Lighting & Optical Performance
Adopts advanced wafer‑grade COB light source module. It delivers evenly spread luminous output and significantly boosted overall brightness compared with conventional LED spotlights. There are no annoying local bright hot spots on the illuminated surface.

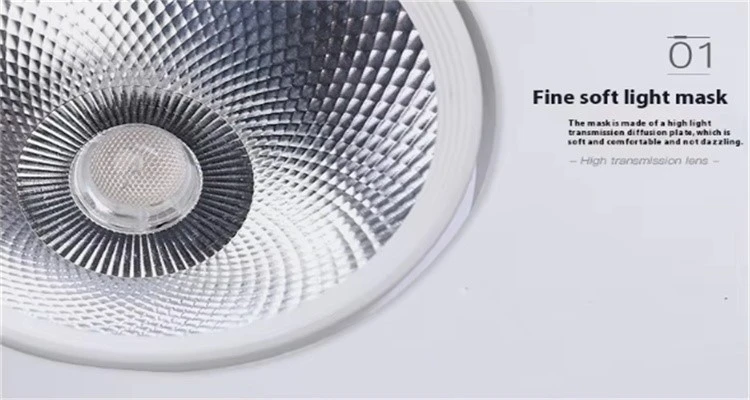

Specially‑designed fine soft‑light reflective mask with diamond‑shaped textured reflecting surface redirects light beam scientifically. Matched high‑transmittance optical lens diffuses harsh rays, realizing outstanding anti‑glare performance and comfortable eye‑friendly illumination effect.

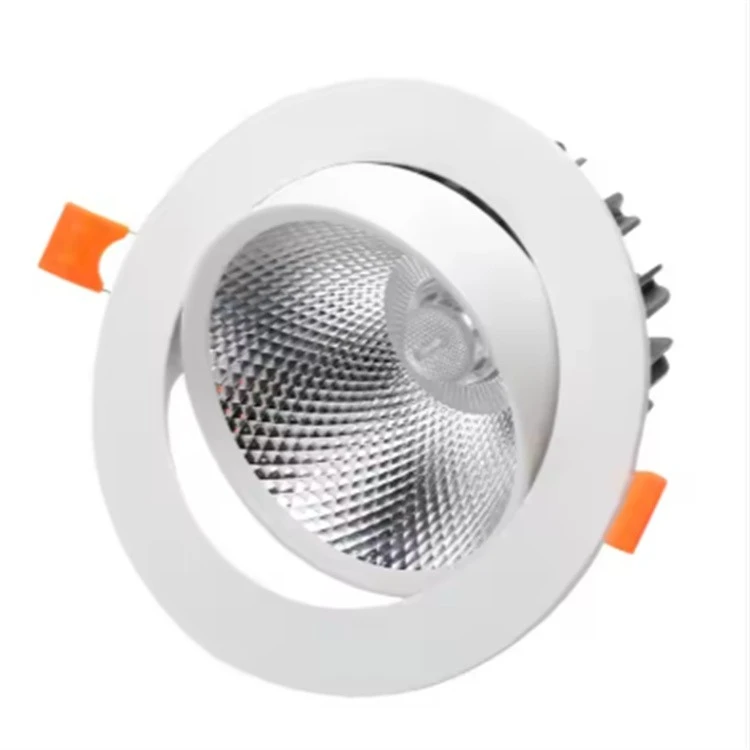

Rotatable inner lamp head structure allows users to adjust beam direction freely after installation, to realize targeted accent lighting for decorative walls, paintings and shelf displays.
Reliable color rendering capability helps restore real‑world color tones of objects, well‑suited for boutique retail and gallery‑style lighting requirements.
Thermal Dissipation Characteristic

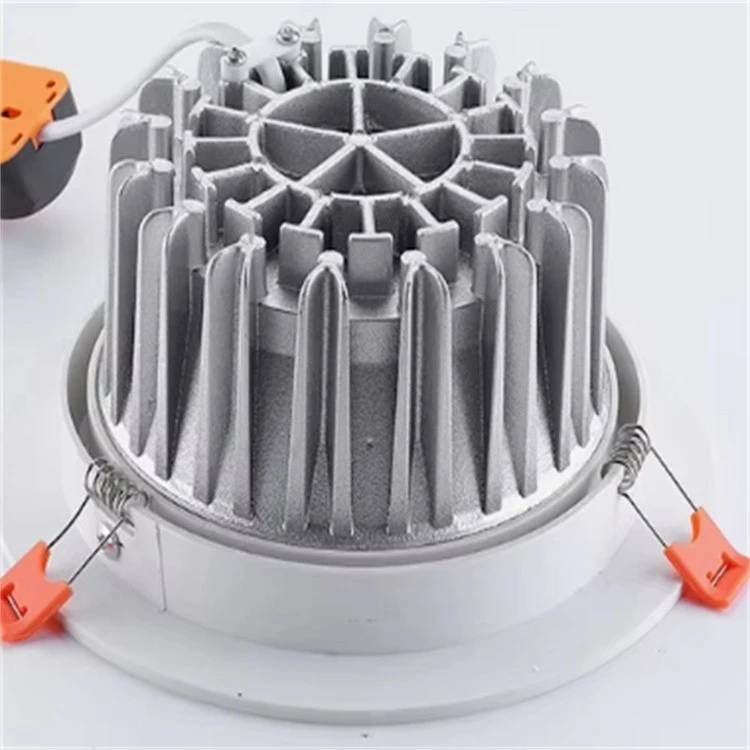

Robust one‑piece cast‑aluminum cooling radiator with multi‑rib radial cooling fins greatly expands effective heat‑dissipation surface. Excellent thermal conductivity rapidly dissipates heat generated from the operating COB chip outwards.
Optimized short lamp‑body height design is highly adaptable to shallow ceiling space constraints, removing installation obstacles for projects where ceiling cavity depth is insufficient.
Separated external driver design keeps power electronic components away from high‑temperature zone of lighting unit, lowering working temperature for driver circuit and extending overall fixture service cycle.
Lifespan & Luminous Attenuation (Light Decay / Brightness Loss)
Benefiting from excellent thermal management system and premium wafer COB emitter, the rated service life of this recessed spotlight reaches up to 50,000 working hours under correct voltage and ambient indoor conditions.
Low luminous depreciation performance: Stable low junction‑temperature working environment for LED chip effectively slows down the aging progress of semiconductor light source. After continuous operation of 30,000 hours, the fixture still retains ≥70% of its original initial luminous flux (L70 lifespan standard for LED lighting).
Constant‑current driving circuit protects LED chip against sudden current fluctuations, effectively reducing the risk of premature light‑source burnout even during non‑stop long‑time running for commercial applications.
Consistent color temperature output over the whole usage cycle; there will be no obvious color shifting or yellowish light after years of service.
