product Specification
| Input Voltage(V) | 120-277V | Light Source | LED |
| Lamp Luminous Efficiency(lm/w) | 100 | Lifespan (Hours) | 50000 |
| Color Temperature(CCT) | 2700-6500K | Color Rendering Index(Ra) | 98 |
| Support Dimmer | No | IP Rating | IP22 |
| Warranty(Year) | 3-Year | Lamp Body Material | Aluminum |
| Lamp Luminous Flux(lm) | 900 | Lighting solutions service | Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout, Auto Cad Layout, Onsite Metering, Project Installation |
Core Product Features
System for the Dissipation of Heat Number One An industry-leading thermal management system is provided by this downlight, which is constructed with a heatsink made of cold-forged 1070 aluminium. It is possible to achieve maximum heat dissipation efficiency via the finned aluminium construction, which efficiently lowers the temperature of the LED junction, minimises light decay, and guarantees consistent and long-lasting performance even when the device is operating continuously. Two designs that are both flexible and adjustable.
In order to provide to a wide range of illumination requirements, it provides both fixed and adjustable angle variants. The adjustable model allows for fine beam direction adjustment, making it ideal for accent lighting. On the other hand, the fixed version provides constant and uniform illumination for general ambient lighting, making it suitable for a variety of functional needs in residential and commercial areas.
Three High-Performance Drivers That Are Isolated Featuring a quality isolated LED driver that guarantees a flicker-free and consistent light output with a power factor (PF) greater than 0.95. Additionally, the driver avoids eye strain caused by flickering, provides dependable and energy-efficient performance, and has quick-connect terminals for convenient installation.
Core Product Features
Anti-glare optics are equipped with a variety of beam angles.
The anti-glare lighting provided by the reflector, which was developed with accuracy, is available with beam angles of 24 degrees, 38 degrees, and 60 degrees. Light may be distributed in a variety of ways, including narrow 24 degrees for accent lighting, medium 38 degrees for work lighting, and broad 60 degrees for general ambient lighting. All of this is accomplished while simultaneously eliminating severe glare for your visual comfort.
Connections that are both Simple and Secure
Featuring male and female plug connections that are certified IP65, allowing for a tool-free and speedy installation process. Enhanced safety for both installation and long-term usage is provided by the fire-rated and waterproof connectors, which facilitate wiring in ceiling cavities, enable secure and dependable electrical connections, and simplify the wiring process.

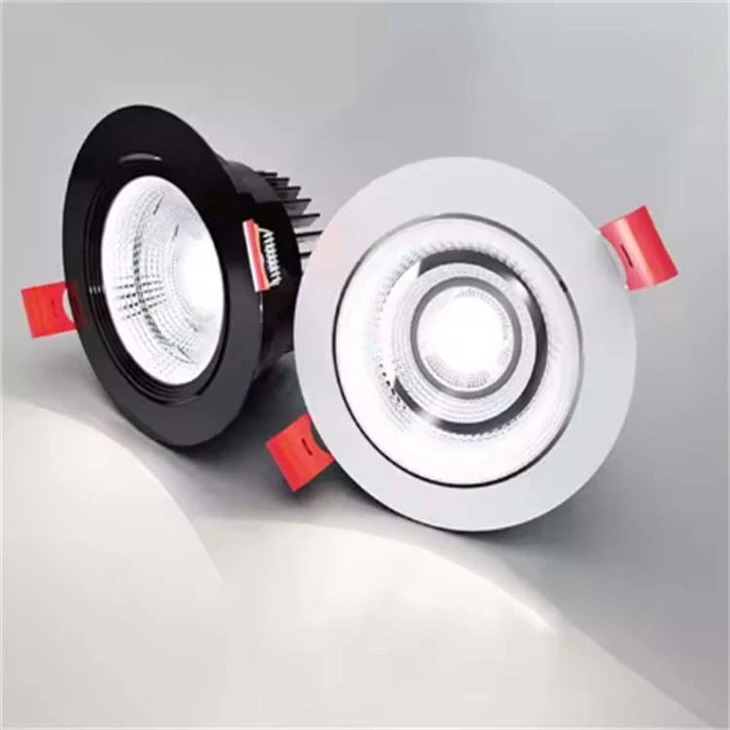

Housing That Is Both Tough And Stylish
The outer and inner bezels are made of die-cast aluminium ADC12, and the construction is available in three different finishes: white, black, and silver. In addition to being resistant to corrosion and damage, the sturdy aluminium housing is also designed to fit in smoothly with any ceiling type. This provides a sleek and contemporary appearance that is a perfect match to any home design.
Illumination from COB LEDs with High Efficiency
In addition to having a high colour rendering index (CRI) that allows for accurate colour reproduction, the downlight is powered by high-quality COB LED chips, which allow it to produce great luminous efficacy, brilliant, consistent light output, and a high colour rendering index. The design of the COB guarantees that the illumination is focused and shadow-free, making it suitable for accent lighting and task lighting.
Installation Instructions
1 Pre-Installation Safety Preparation
Power Safety First: Always completely disconnect the main power supply before installation, wiring, or maintenance to avoid electric shock hazards.
Product Inspection: Check the downlight, heatsink, spring clips, and connectors for damage, deformation, or loose components. Do not use a damaged unit.
Ceiling Compatibility: Confirm the ceiling cutout size matches the downlight's dimensions, and ensure the ceiling material can support the fixture's weight.
Environment Check: Install in a well-ventilated ceiling cavity to maintain heatsink performance. Do not install near flammable materials or in enclosed, unventilated spaces.
2 Step-by-Step Installation
Prepare Ceiling Cutout: Cut a hole in the ceiling matching the downlight's required opening size.
Wiring Connection: Use the IP65 male/female quick connectors to link the downlight to the isolated driver, then connect the driver to the main power supply (follow L/N/PE markings for live, neutral, and ground wires).
Secure the Fixture: Squeeze the red spring clips upward, insert the downlight into the ceiling cutout, and release the clips to lock the fixture firmly against the ceiling.
Angle Adjustment (For Adjustable Models): Loosen the adjustment screw on the fixture, tilt the light to the desired beam angle, then retighten the screw to secure the position.
Power Test: Restore power to verify the light turns on normally, with no flickering or abnormal operation.
