comparison of product parameters
|
Installation Style |
Downlights |
Input Voltage(V) |
12-18V 300mA |
|
Application |
Indoor, Hotel, Living room, |
IP Rating |
IP44 |
|
Color Temperature(CCT) |
DTW2000-3000K |
Lamp Luminous Efficiency(lm/w) |
78 |
|
Lifespan (Hours) |
40000 |
Warranty(Year) |
5-Year |
|
Support Dimmer |
Yes |
Light Source |
LED |
|
Lamp Body Material |
Aluminum |
Design Style |
European |
|
Color Rendering Index(Ra) |
90 |
Lighting solutions service |
Lighting And Circuitry Design, Dialux Evo Layout |
|
Place of Origin |
Guangdong, China |
Lamp Luminous Flux(lm) |
630 |
|
Type |

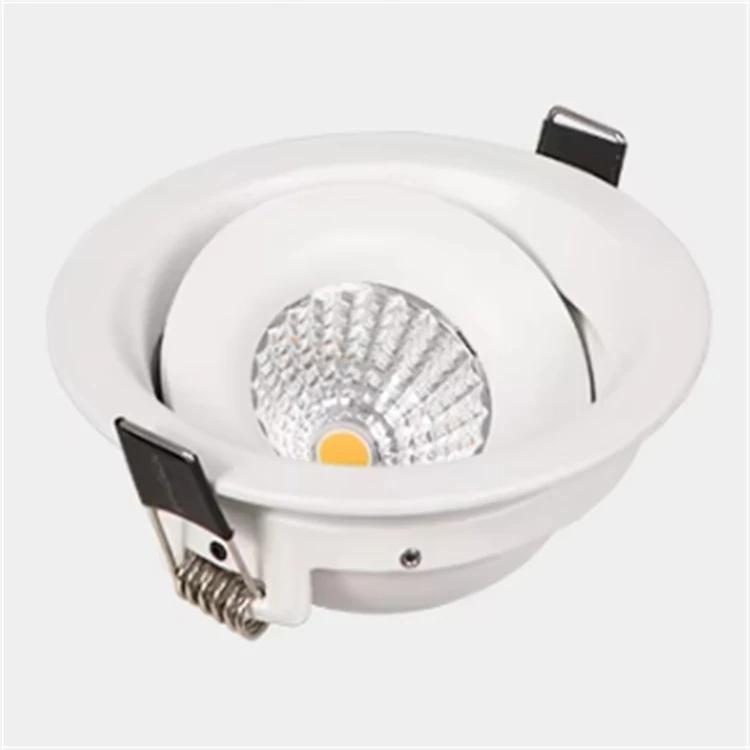

Round Adjustable Downlight |
Size |
105*48mm |
|
Item Type |
95mm |
Beam angle |
38° |
|
Dimmable |
Triac/0-10V/DALI |
LED Chip |
COB LED |
|
Power |
8w |
Feature |
Ultra Thin Slim |
Key Feature
Built with high‑density pure aluminum lamp body and aluminum trim ring, adopting integrated heat‑dissipation architecture. Rapidly conducts internal heat generated by COB chip outward, effectively lowering junction temperature and preventing thermal accumulation that damages the light source and driver.
Features a precision‑engineered deep concave reflector cup combined with optical lens, realizing high light utilization rate, soft and even light output without harsh glare or speckled light spots. It achieves outstanding wall washing effects and outstanding color rendering performance to restore the true texture of displayed objects and wall decorations.

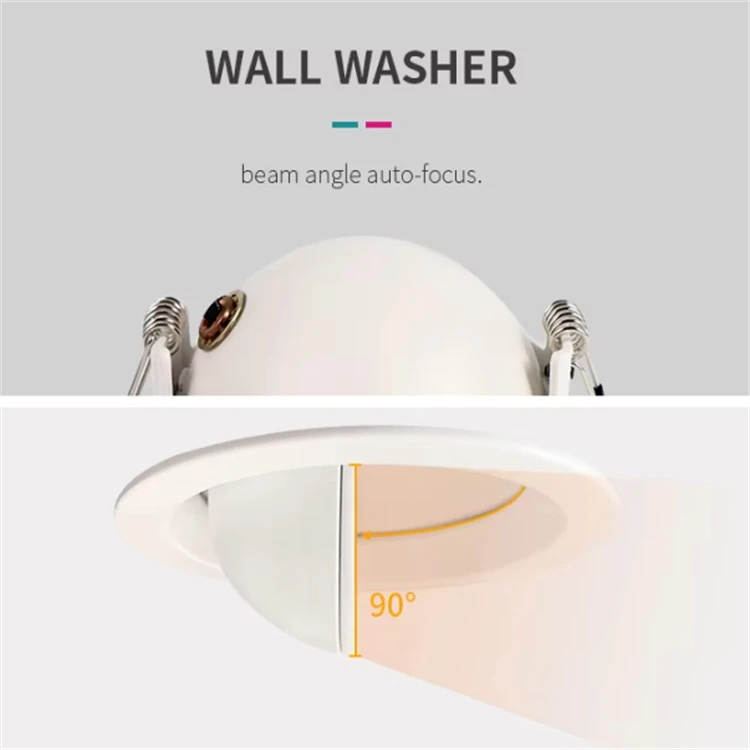

The lamp head supports 90° free rotation, allowing flexible adjustment of the beam direction at will. No need to change the ceiling cutout position, which greatly improves lighting layout flexibility for accent lighting, background wall lighting and artwork highlighting.
Key Feature
Equipped with high‑quality reliable constant‑current LED driver, offering stable constant‑current power supply, resisting instantaneous voltage fluctuation and current surge. It avoids stroboscopic and flickering problems completely and provides eye‑friendly continuous illumination.
Adopts high‑grade COB integrated light source with ultra‑long rated service life up to 50,000 hours under standard operating conditions. Under normal use of 8‑10 hours per day, it can maintain stable lighting performance for more than 13 years, drastically cutting frequent lamp replacement and maintenance expenses.
Excellent anti‑aging and low light attenuation characteristics. After 30,000 hours of continuous operation, the luminous flux retention rate remains higher than 82%. Slow light decay ensures consistent brightness in long‑term use, avoiding obvious dimming within a short service cycle.
Key Feature
Reasonable sealed internal structure, dust‑proof inner cavity design. The protection grade reaches IP40, effectively blocking dust, tiny solid particles and foreign debris from entering the lamp interior. It protects optical components and electronic driver from dust pollution and extends the whole fixture service life.

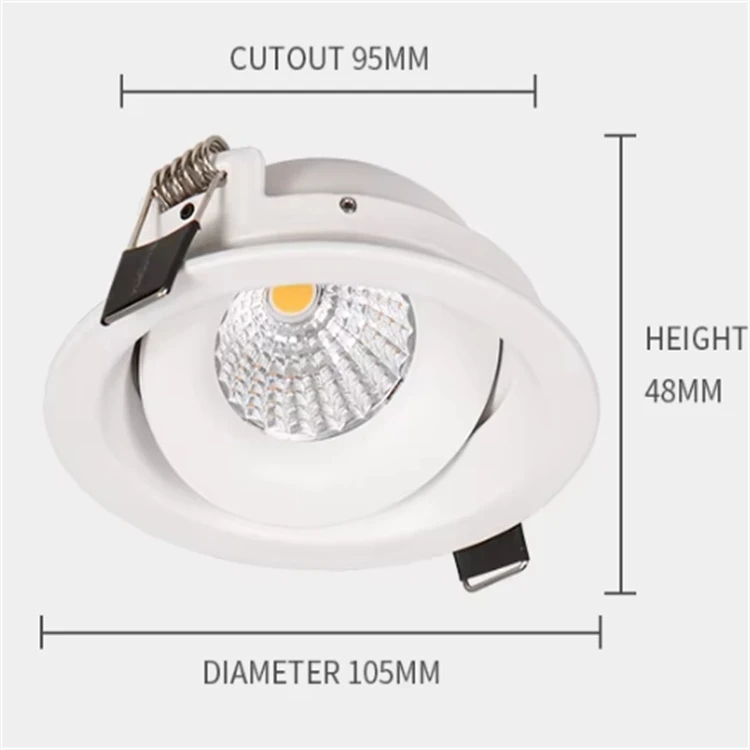

Spring buckle quick‑mounting design, compatible with 95mm ceiling cutout size. It can be firmly clamped on gypsum ceilings without complicated auxiliary fixing accessories, greatly shortening on‑site installation time and lowering construction labor cost.
Ultra‑thin overall body with only 48mm height after embedding, perfectly adapted to thin suspended ceilings with limited reserved space, solving the installation difficulty of shallow ceiling cavities.
