product Specification
| Input Voltage(V) | 15V/500MA | Light Source | LED |
| Lamp Luminous Efficiency(lm/w) | 88 | Lifespan (Hours) | 50000 |
| Color Temperature(CCT) | 3000K | Color Rendering Index(Ra) | 90 |
| Lighting solutions service | IES file | Power |
9.5w |
| Warranty(Year) | 3-Year | Lamp Body Material | Aluminum |
| Beam Angle(°) | 38° | Switch Type | Touch On/Off Switch |
Core Product Features
With a gyro rotation of 355 degrees and a tilt of 90 degrees, the light may be directed precisely where you want it. Forget about lighting that seems to suit everyone!
This downlight allows you to direct the beam precisely where you need it to go, whether you are emphasising artwork, brightening a kitchen counter, or washing a wall with even light. It has a complete 355-degree horizontal rotation and a 90-degree vertical tilt. This fixture is ideal for accent lighting, job lighting, or ambient glow since it combines the functions of a spotlight and a general light into a single installation.
IP44 Waterproof, Dust-Proof, and Fog-Proof: Designed to withstand the most challenging environments This particular light is suitable for use in kitchens, bathrooms, and even laundry rooms since it is able to deal with greasy smoke, steam, and even dampness. Its sealed structure prevents water, dust, and filth from entering, ensuring that it shines brightly in every nook and cranny of your house, without exception. This means that you no longer have to worry about humidity damage or smoke accumulation.

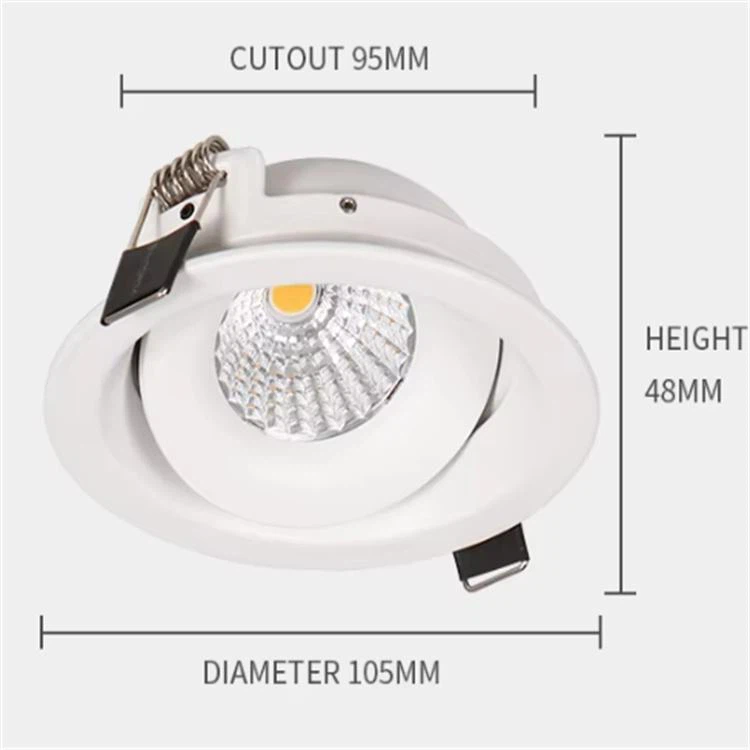

Exceptionally Slim Profile: Adaptable to Any Ceiling and Any Space This light is designed to be flush and elegant in any ceiling, since it has a total height of just 48 millimetres and a typical cutout of 95 millimetres. Because of its clean, contemporary white finish, it mixes in well with any décor, whether it be contemporary or minimalist. It is thin enough to function in narrow joists, and it never seems out of place.
Core Product Features

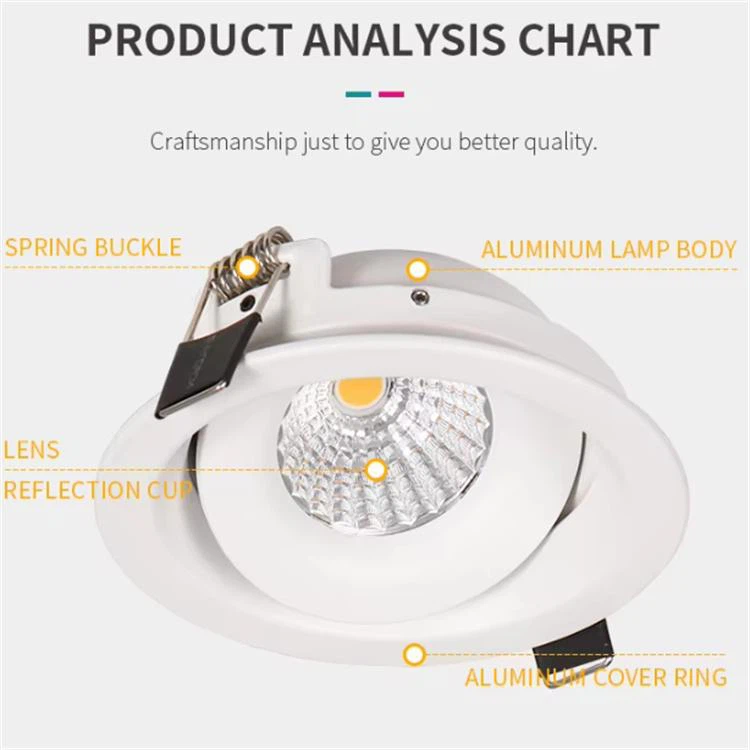

Build Quality Made of Premium Aluminium: Cool, Efficient, and Built to Last In addition to being crafted with a lamp body and cover ring made of high-quality aluminium, this downlight is also known for its remarkable heat dissipation. That means your LED will operate at a lower temperature, will live longer, and will keep its brightness steady for many years.
There will be no flickering, no overheating, and no frequent replacements; simply dependable, long-lasting performance that you can rely entirely on. Lenses that are crystal clear and precision optics that are bright, uniform, and glare-free No harsh glare or uneven illumination is produced by the sophisticated lens and reflection cup, which together provide a beam that is crisp and focused. To ensure that every nook and cranny receives even, crisp light that helps colours stand out and places seem warm and welcoming, this lighting is ideal for a wide range of applications, from bright business areas to cosy living rooms.

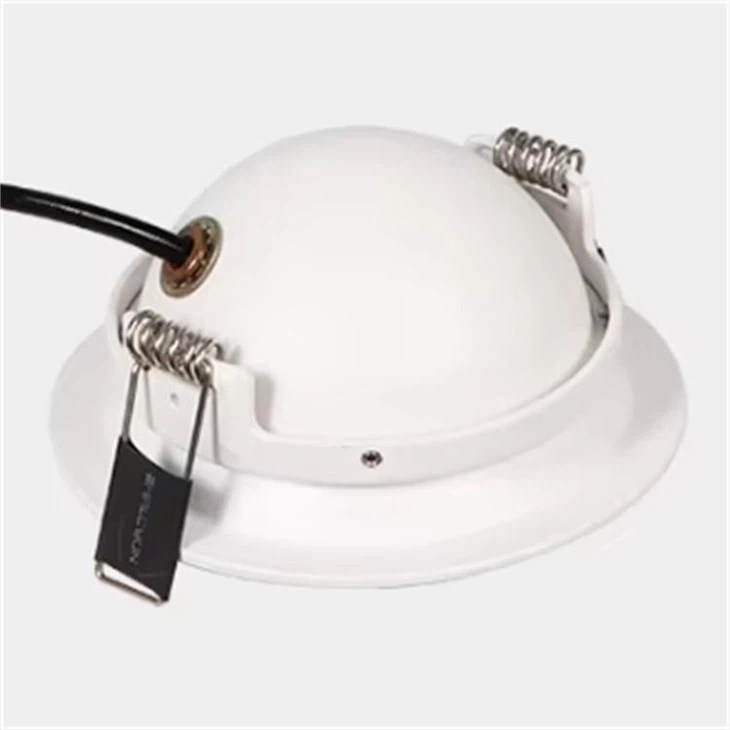

Installation with Spring Loading: No Tools, No Fuss, and Completed in a Matter of Seconds In a matter of moments, the spring buckles that are incorporated in will snap firmly into the cutout in your ceiling. It is not need to use complex mounting hardware or brackets; all you need to do is squeeze the clips, insert it, and you are finished. It is stress-free and easy to do yourself!
🛠️ Step-by-Step Installation Guide – Get It Up & Running in Minutes
What You'll Need:
Your new adjustable LED downlight + driver
A screwdriver (if needed for wire connections)
Wire strippers (if your wires are un-stripped)
A voltage tester (to confirm power is off!)
Step 1: Prep the Space & Power
Turn off the power to the ceiling circuit at your home's main electrical panel. Use a voltage tester to double-check the wires are dead-safety always comes first!
Confirm your ceiling cutout matches the 95mm required opening size. If it's too small, carefully trim the hole; if too large, use a ceiling trim ring (sold separately) for a perfect fit.
Step 2: Wire the Light & Driver
Open the LED driver's terminal cover (if applicable).
Connect the driver's input wires to your home's power wires (live/neutral/ground, marked clearly on the driver). Secure the connections with wire nuts or the included connectors to avoid loose wires.
Connect the driver's output wires to the downlight's corresponding wires, following the polarity markings (positive to positive, negative to negative).
Tuck the driver neatly into the ceiling cavity above the cutout, making sure it's not pinched or crammed.
Step 3: Install the Downlight
Squeeze the two spring clips on the sides of the light inward, then insert the fixture into the ceiling cutout.
Release the clips-they'll expand outward, gripping the ceiling and holding the light flush in place.
Give the light a gentle tug to confirm it's securely installed and won't shift or fall out.
Step 4: Adjust & Aim Your Light
Turn the power back on at the main panel and flip the light switch.
Once the light is on, gently rotate the lamp head 355° and tilt it up to 90° to aim the beam exactly where you want it. Perfect for highlighting decor, lighting workspaces, or creating dramatic wall-washing effects!
Our firm prides itself on owning its own factory, guaranteeing complete control over the production process and the quality of our goods. We are not only agents; we are manufacturers committed to offering our clients the most competitive rates available. We invite consumers to evaluate our samples first, as we are assured that the quality and pricing of our items are self-evident. Our dedication to excellence and client satisfaction compels us to consistently perform at our best and provide superior quality products.
