comparison of product parameters
| Input Voltage(V) | AC100-240V | IP Rating | IP20 |
| Lamp Luminous Efficiency(lm/w) | 90 | Lifespan (Hours) | 4000 |
| Color Temperature(CCT) | changeable | Color Rendering Index(Ra) | 80 |
| Support Dimmer | No | Warranty(Year) | 5-Year |
| Lamp Body Material | PC | Application | Living Room |
| Design Style | Modern | Lighting solutions service | Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout |
| Light Source | LED | Place of Origin | Guangdong, China |
| Lamp Luminous Flux(lm) | 1620 | Product Weight(kg) | 1 |
| Working Temperature(℃) | -20-40 | Product | Multi-Function CIRCULAR LED Panel |
| CCT | CCT Adjustable, 3000K, 4000K, 6000K | Installation | Surface Mounted |
| Dimension | 225*20mm | Cut-out | 70-170mm |
| Wattage | 9W/12W/18W/24W | Beam Angle | 120° |

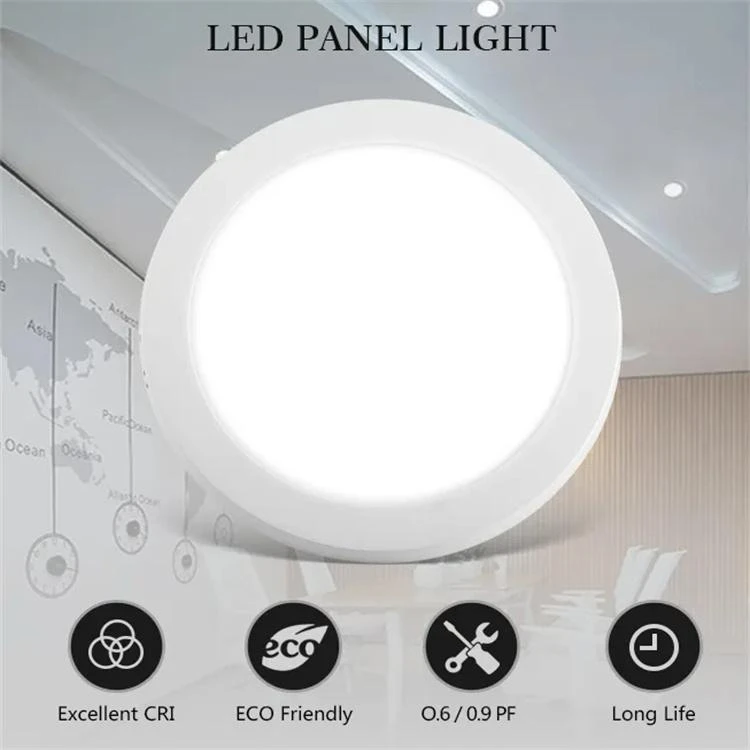

Ultra-Thin Exterior & Surface Mount Structure
Super slim lamp body profile minimizes ceiling occupation space, creating a neat minimalist interior visual effect
Surface-mounted design eliminates the need for ceiling hole cutting, compatible with gypsum board, PVC ceiling, concrete ceiling and suspended ceiling
Dual shape options available: classic round panel & modern square panel to match diverse interior decoration styles
Integrated seamless frame structure, no gaps between frame and light diffuser for integrated aesthetic
Full Aluminum Housing, Superior Heat Dissipation & Low Light Decay
Adopts high-purity die-cast aluminum lamp housing with built-in loop heat sink channel, rapid heat conduction and emission
Continuous stable heat dissipation effectively controls LED chip operating temperature within safe range
Suppresses light attenuation drastically: only ≤12% lumen depreciation after 50,000 hours of full-power operation
Avoids heat accumulation caused by plastic housing; prevents yellowing, chip burnout and premature lamp failure
Solid aluminum frame improves overall structural rigidity, anti-deformation during long-time ceiling mounting
Anti Light-Leakage Optical Design, Uniform Soft Lighting
New upgraded light guide & diffuser assembly with full edge shading structure, zero side light leakage
High-transmittance matte PMMA diffuser plate, converts point LED light source into even surface lighting
Eliminates glare, shadow spots and dazzling hot spots; comfortable eye-protective illumination for long-time working environment
180° wide uniform beam angle, no dark corners in room lighting coverage
Anti-yellowing optical material, maintains consistent light output color temperature throughout service life
