comparison of product parameters
|
Application |
Sports Stadiums |
IP Rating |
IP65 |
|
Input Voltage(V) |
100-277VAC/50-60HZ |
Control Mode |
Touch Control, App Control, Remote Control, Switch Control, Sensor Control |
|
Lamp Luminous Efficiency(lm/w) |
130 |
Lifespan (Hours) |
50000 |
|
Color Temperature(CCT) |
5000K (Daylight) |
Lamp Body Material |
Aluminum |
|
Color Rendering Index(Ra) |
80 |
Support Dimmer |
Yes |
|
Warranty(Year) |
5-Year |
Lighting solutions service |
Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout, Auto Cad Layout, Onsite Metering, Project Installation |
| Certification |
CCC, CE, Emc, ETL, FCC, RoHS, Saa |
Light Source |
LED |
|
Place of Origin |
Guangdong, China |
Beam Angle(°) |
-40 to 45 |
|
Lamp Luminous Flux(lm) |
130000lm |
Color Temperature(CCT) |
2700K SW / 3000K WW / 4100K NW / 5000K DW / 5700K CW |
|
Lamp Luminous Efficiency(lm/w) |
130 |
Sensor |
Microwave sensor Daily sensor available |
|
Other Wattage |
500w 600w 1000w 1200w |
Power Efficiency |
>95% |
| Cover |
Black or Silver,optional |
Baffle |
With baffle or without baffle,optional |
Performance & Optical Excellence
Blazing Efficiency: Powered by premium LED chips, this fixture delivers an incredible 150LM/W, producing a massive, shadow-free illumination output that turns night into day.
Crystal Clear Vision: Features a 5700K daylight color temperature and a focused 60° beam angle, perfectly engineered for long-distance projection without light spillage or glare.

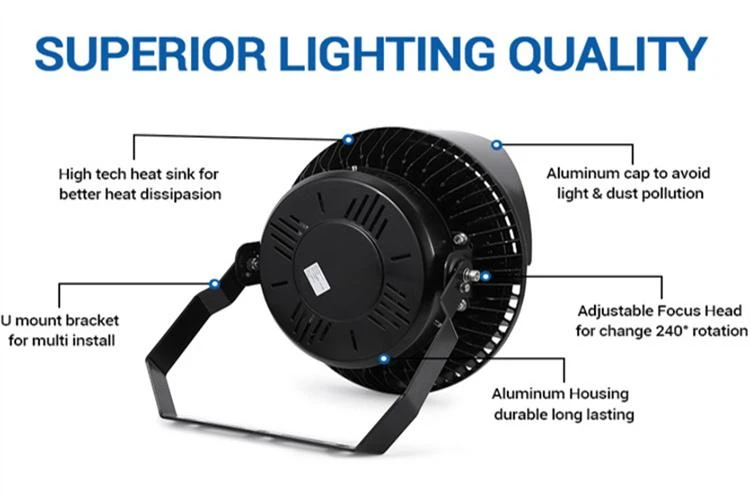

240° Adjustable Focus Head: Customize your lighting coverage effortlessly. The flexible head allows for a 240° rotation, ensuring precise directional lighting for any stadium configuration or mounting height.
Smart Thermal Design: Equipped with a high-tech heat sink and an advanced aluminum cap that effectively prevents light and dust pollution while maximizing heat dissipation.
Universal Compatibility: Built with a wide AC100-277V input range, making it highly adaptable to various power grids without compromising performance.
Lifespan & Lumen Depreciation
Built to Last: Encased in a heavy-duty, thickened aluminum housing, this light is constructed to resist physical impacts and severe weather, drastically extending its operational lifespan (typically exceeding 50,000+ hours).
Ultra-Low Lumen Depreciation: The robust thermal management system prevents the LEDs from overheating. This is crucial because maintaining cooler operating temperatures directly correlates to minimal lumen depreciation-meaning your stadium will remain brilliantly lit year after year without fading.
Zero Maintenance Overhead: Say goodbye to frequent bulb replacements. Its solid-state design and premium heat sink ensure consistent, maintenance-free operation, saving you significant labor and replacement costs over time.
Installation & Maintenance

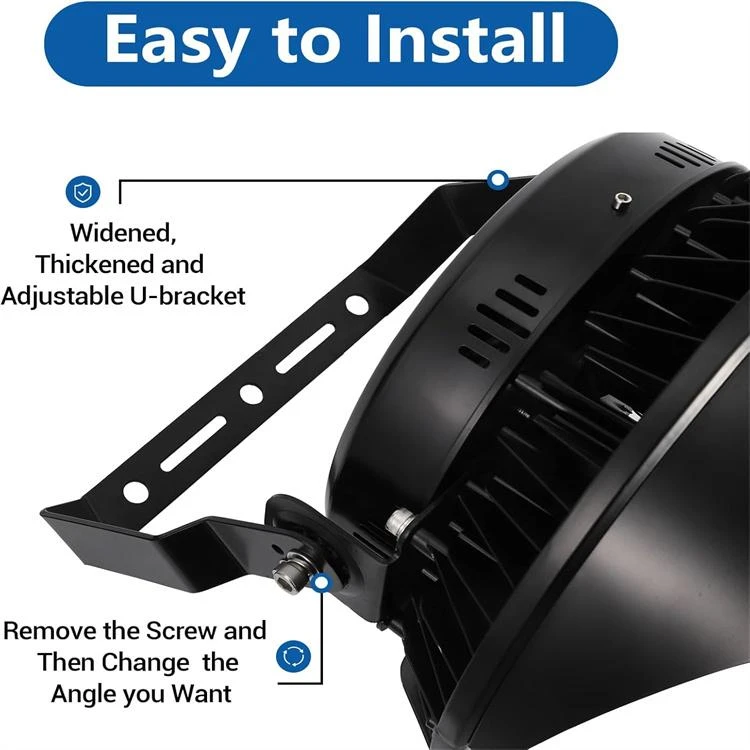

Heavy-Duty U-Bracket: Features a widened, thickened, and adjustable U-bracket designed for multi-installation setups, providing rock-solid stability on poles, walls, or trusses.

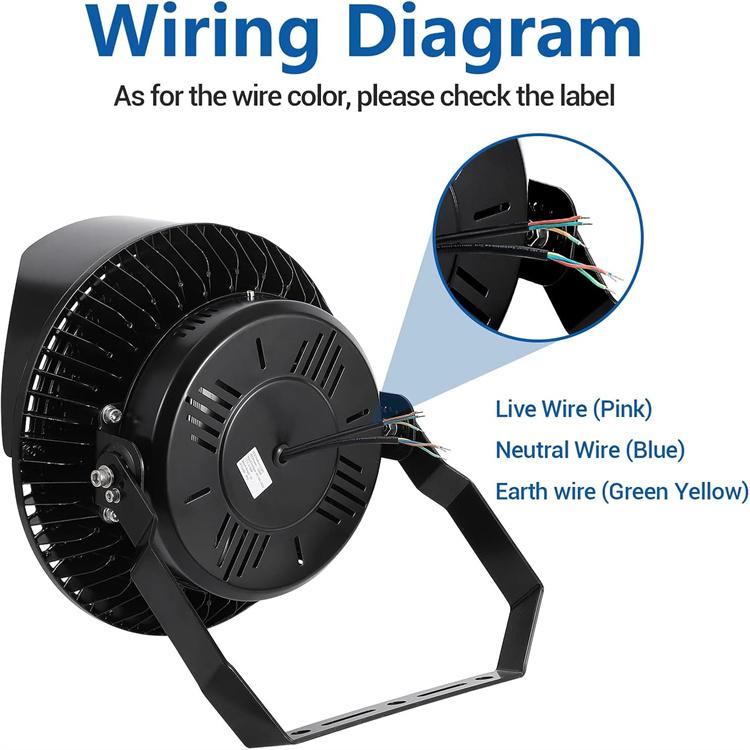

Hassle-Free Wiring: Thoughtfully designed for electricians. The wiring diagram is simple and safe: Pink (Live Wire), Blue (Neutral Wire), and Green/Yellow (Earth Wire).
Tool-Free Angle Adjustment: Simply remove the designated screws to quickly change the lighting angle you want, making on-site adjustments fast and efficient.
