product Specification
| Input Voltage(V) | AC 85-265V | Material | Aluminum |
| Lamp Luminous Efficiency(lm/w) | 100 | Lifespan (Hours) | 50000 |
| Color Temperature(CCT) | 2700-6500k | Color Rendering Index(Ra) | 70 |
| Lighting solutions service | Lighting And Circuitry Design, Onsite Metering, Dialux Evo Layout, Litepro Dlx Layout, Auto Cad Layout, Agi32 Layout, Project Installation | Product Weight(kg) | 0.6 |
| Warranty(Year) | 3-Year | Working Temperature(℃) | -20 - 40 |
| Lamp Luminous Flux(lm) | 1000-30000 | CRI (Ra>) | 70 |
| Application | garden, courtyard, road, outdoor, etc | Beam angle | 120 degree |
Product Features
1. Sturdy and Long-Lasting Design

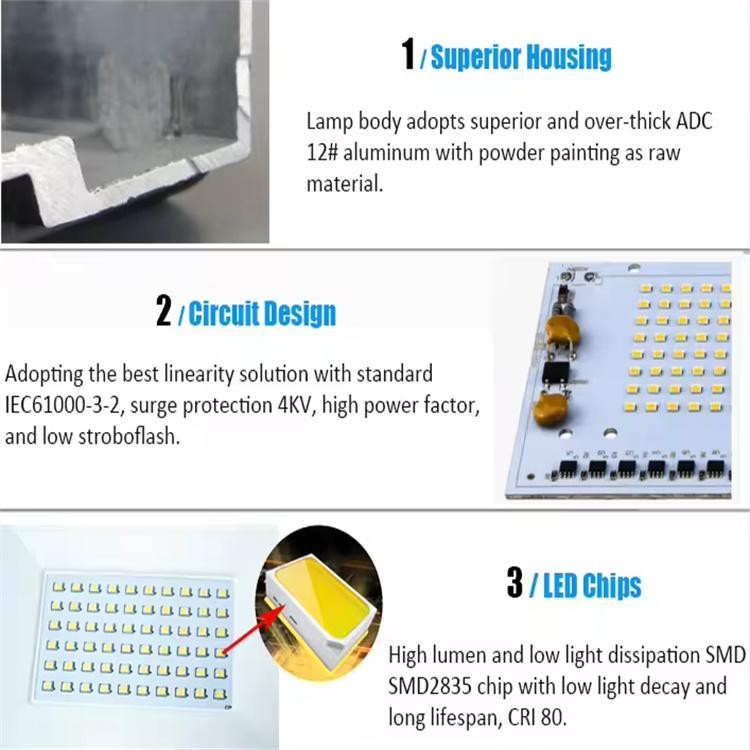

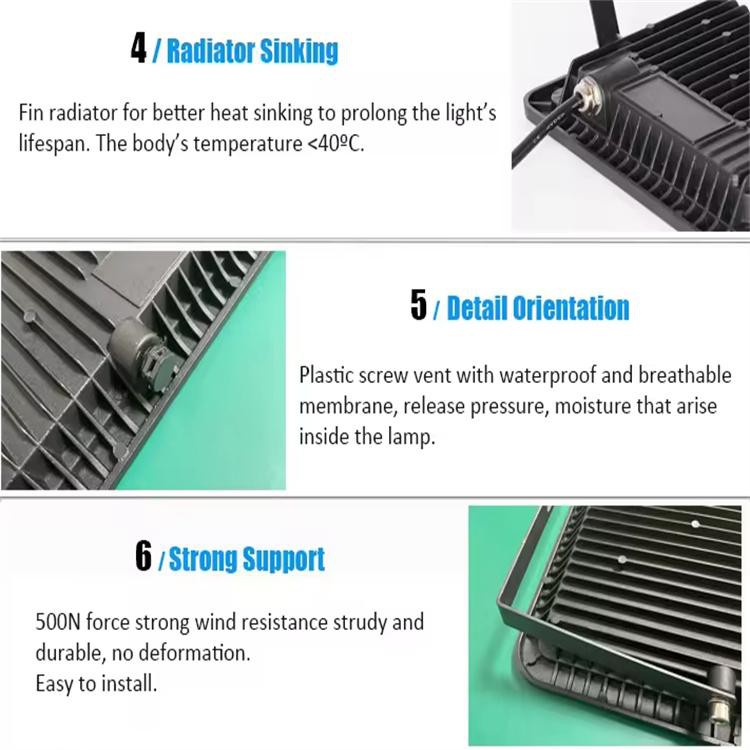

This floodlight has remarkable strength and corrosion resistance since it is made of thick ADC#12 die-cast aluminium casing with a powder-coated finish. By effectively dispersing heat, its incorporated fin-style heat sink maintains the lamp body temperature below 40°C, significantly increasing the LED's lifetime. In addition, rust-proof hardware and 304 stainless steel screws guarantee long-term performance free from deterioration.
The impact-resistant 4mm high-hardness IK07 tempered glass front is ideal for harsh outdoor environments since it can withstand hail, debris, and unintentional impacts.
2. Vibrant, Flicker-Free Lighting
It ensures vibrant, natural light with a brilliant, consistent output of 90–100lm/W and a CRI of 80 thanks to its superior SMD2835 LED chips. The sophisticated linear circuit design offers minimal strobing, a high power factor, and 4KV surge protection while adhering to the IEC61000-3-2 standard. This results in steady, aesthetically pleasing illumination that is perfect for extended periods of usage and free of flickering or voltage swings.
3. All-Ready & Weatherproof
This floodlight is ideal for gardens, yards, parking lots, and industrial locations because of its IP66 waterproof classification, which provides complete protection against heavy rain, splashes, dust, and moisture. The light is protected from the weather all year round thanks to the patent-pending waterproof connector and breathable vent valve, which stop internal pressure and moisture buildup.
Product Features
4. Constructed to Resist the Weather
Its heavy-duty adjustable bracket, which can endure 500N of strain, is designed to survive hard climates and high winds without deforming. Even in stormy or windy conditions, the light will remain firmly in place thanks to the bracket's strong design.
5. Superior Parts

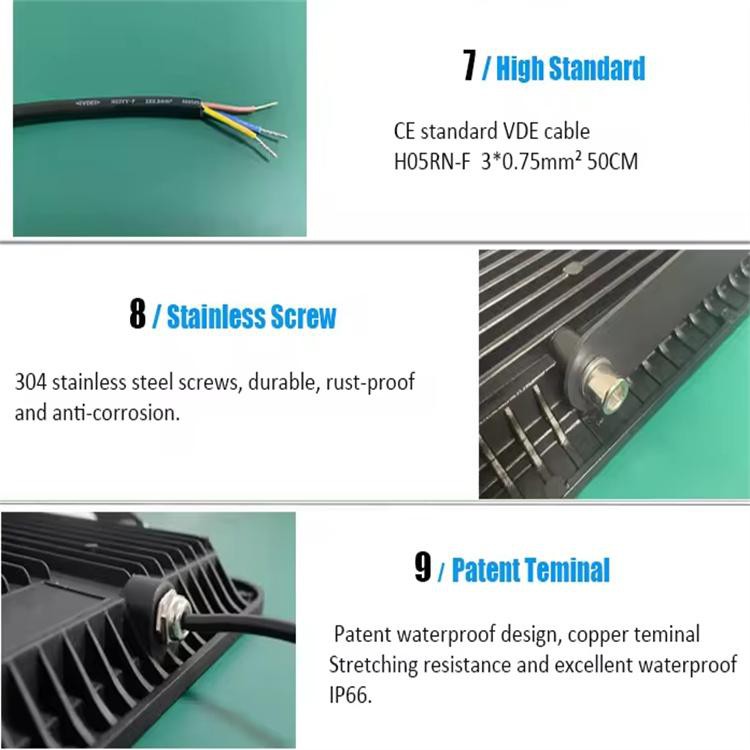

The H05RN-F 3*0.75mm² rubber cable (50cm length), which is designed for flexibility and long-term outdoor usage, is CE-certified and VDE-approved. Over time, the yellowing-resistant PC reflector preserves ideal light distribution, guaranteeing that your room remains brilliantly lighted without fading or discoloration.
6. Adaptable & Useful
You can brand the light for personal or business usage thanks to its dedicated branding space. Its low-maintenance construction eliminates the need for regular maintenance or replacements, and its sleek, compact appearance complements any outdoor style.
🛠️ Installation & Usage Guide
Step 1: Prep the Mounting Surface
Choose a flat, stable surface (wall, pole, or ground bracket) with the right weight-bearing capacity. Mark the mounting holes using the adjustable bracket as a guide, then drill pilot holes if needed.
Step 2: Secure the Bracket
Fasten the floodlight's bracket to the surface with suitable hardware (screws/bolts not included, depending on your surface type). The bracket is fully adjustable, so you can easily tilt and swivel the light to aim exactly where you need it-up, down, or side to side.
Step 3: Electrical Connection
Connect the VDE-approved power cable to a compatible power source (follow local electrical codes and turn off the power before wiring). The IP66-rated terminal ensures a tight, waterproof seal, preventing water from seeping into the connection point.
Step 4: Aim & Test the Light
Adjust the floodlight's angle to your desired coverage area (ideal for driveways, patios, warehouses, or event spaces). Turn on the power to test the light-enjoy instant, bright illumination with no warm-up time.
Pro Tips for Longevity
Install the light in a well-ventilated area to maximize heat dissipation.
Avoid aiming the light directly at sensitive electronics or glass surfaces to prevent glare or damage.
For extra safety, pair it with a surge protector to shield the circuit from voltage spikes.
