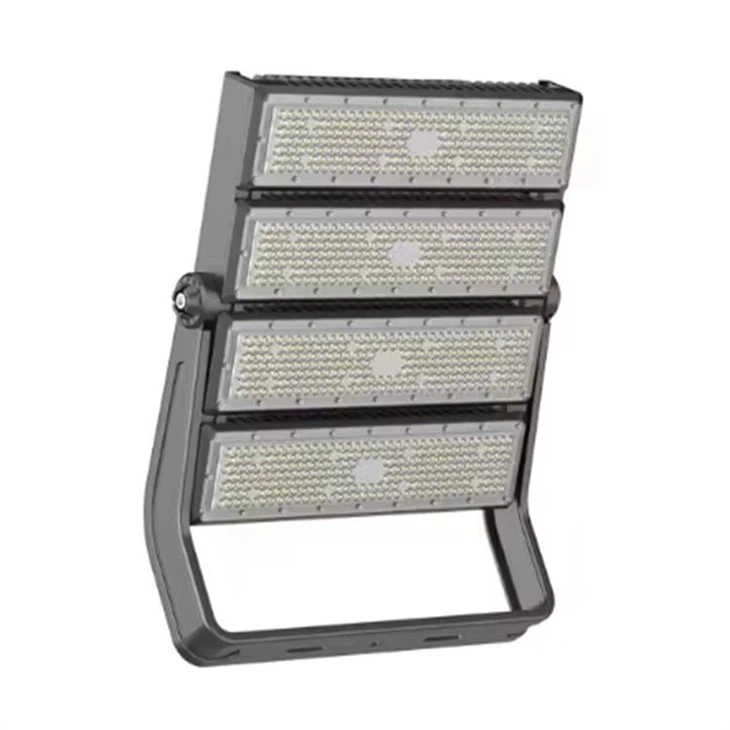

Football Field Tennis Court Stadium Flood Light

Core Product Features

1. Stadium-Grade Brightness & Uniform Illumination

Powered by dense arrays of high-brightness LED chips, this floodlight delivers exceptional lumen output with even distribution across the entire beam pattern.

Modular Power Flexibility: Available in 250W, 500W, 750W, and 1000W configurations to match any project scale - from small parking lots to full-size stadiums.

Wide, Uniform Coverage: Evenly spaced LED chips eliminate hotspots and dark corners, creating consistent, glare-free illumination that meets professional sports and industrial safety standards.

Customizable CCT & CRI: Choose from cool white (5000K–6500K) for high-visibility industrial work, or neutral white (4000K) for retail and event spaces, with high CRI options for accurate color rendering.

2. Scientific Thermal Management for Unrivaled Longevity

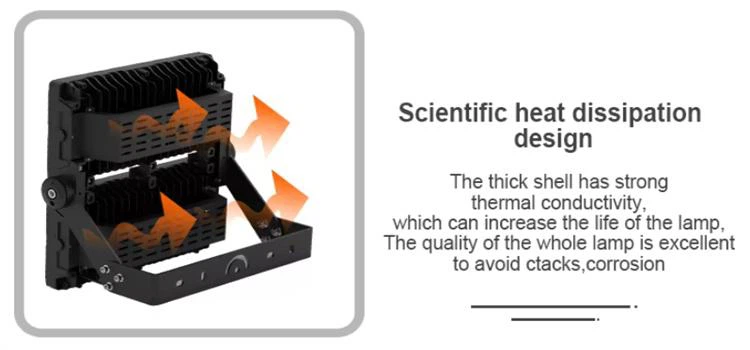

Built with a precision-engineered aluminum heat sink, this floodlight solves the biggest challenge of high-power LEDs: heat buildup.

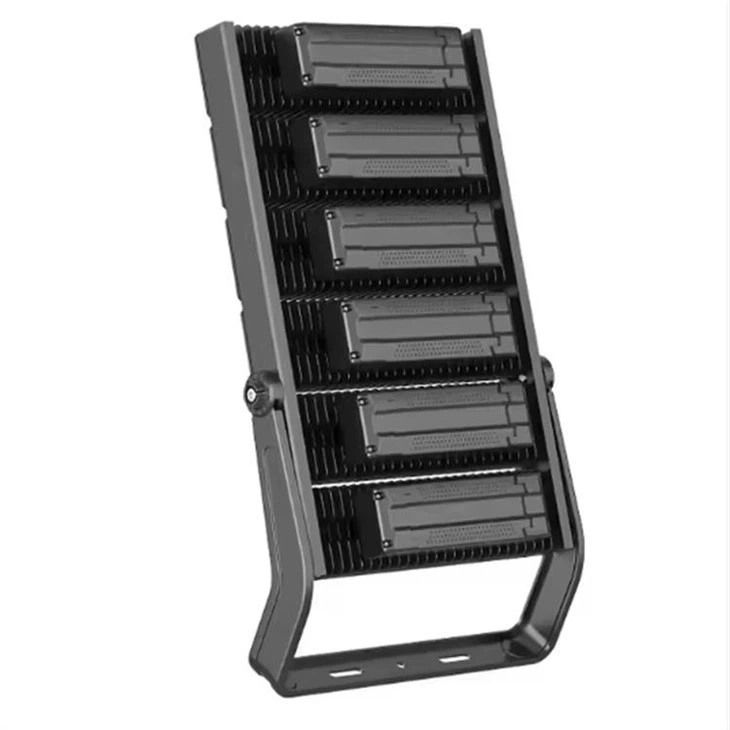

Thick, High-Conductivity Aluminum Housing: The robust, ribbed shell acts as a massive heat sink, rapidly dissipating heat away from the LED modules to maintain optimal operating temperatures.

Optimized Airflow Design: Open ventilation channels promote natural convection, preventing heat stagnation and ensuring the LEDs and driver run cool, even in 24/7 continuous operation.

50,000+ Hour Lifespan: Effective thermal management drastically reduces component degradation, delivering years of reliable performance with minimal light decay - far exceeding the lifespan of traditional metal halide or HID fixtures.

Core Product Features

3. Heavy-Duty Build for Any Environment

Engineered for the harshest outdoor and industrial conditions, this floodlight is built to withstand everything nature and heavy use can throw at it.

Corrosion-Resistant Construction: The die-cast aluminum housing features a durable, anti-corrosion coating that resists rust, salt spray, and chemical exposure - perfect for coastal areas, ports, and industrial facilities.

Impact & Vibration Resistant: Reinforced modular housing and secure chip mounting protect against physical shocks and vibration, making it ideal for construction sites and heavy machinery zones.

IP65/IP67 Weatherproof Rating: Fully sealed against rain, snow, dust, and water jets, ensuring reliable operation in extreme weather conditions, from heavy downpours to sweltering heat.

4. Precision Control & Flexible Mounting

Designed for adaptability, this floodlight gives you complete control over your lighting setup.

180° Adjustable Bracket with Gear-Lock: The heavy-duty mounting bracket features a smooth 180° rotation with positive gear-locking, allowing you to aim the light exactly where you need it. No more slipping or shifting - your beam stays in place, even under strong winds.

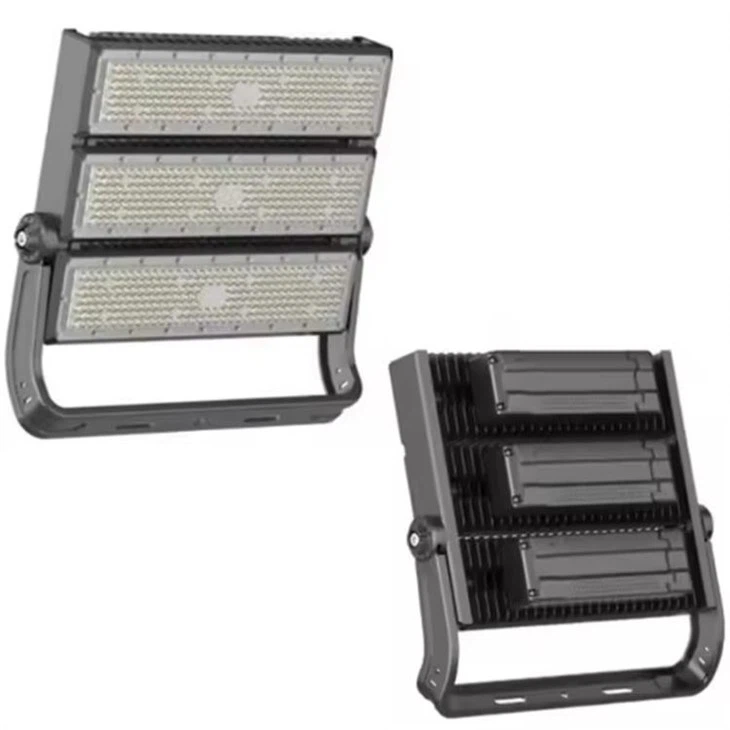

Modular Design: The segmented LED modules allow for easy maintenance or power upgrades without replacing the entire fixture, reducing long-term service costs.

Universal Compatibility: Works with standard mounting poles, walls, and trusses, making it suitable for new installations or retrofits of existing lighting systems.

5. Massive Energy & Cost Savings

Replace inefficient metal halide or HID fixtures with this LED floodlight and slash your operational costs.

Up to 75% Energy Reduction: Uses far less power to deliver the same or higher lumen output, drastically cutting electricity bills for large-scale facilities.

Zero Maintenance Hassle: No bulb replacements, no ballast failures, no warm-up time - just instant-on, instant-off performance that eliminates downtime and service calls.

Long-Term ROI: The combination of low energy use, zero maintenance, and a 5-year warranty ensures the floodlight pays for itself in just a few years.

🛠️ Professional Installation & Usage Guide

Step 1: Pre-Installation Preparation

Safety First: Turn off power at the circuit breaker and lock out/tag out the electrical supply to avoid shock. Verify power is off with a multimeter.

Assess the Mounting Location: Choose a stable, load-bearing surface (pole, wall, truss) that can support the weight of the floodlight. Ensure the location provides adequate airflow around the fixture for heat dissipation.

Confirm Compatibility: Check the power supply voltage matches the floodlight's specifications (typically 100–277V AC or 277–480V AC for industrial models). Use a certified electrician for all high-voltage connections.

Step 2: Installation Process

Mount the Bracket: Secure the U-shaped mounting bracket to the surface using the included stainless steel bolts. Tighten the bolts to the recommended torque to ensure a rigid, vibration-free fit.

Adjust the Angle: Loosen the gear-lock bolts on the side of the bracket, rotate the floodlight to your desired angle, then retighten the bolts to lock it in place. The gear-locking mechanism ensures the angle won't shift under wind or vibration.

Wire the Fixture: Run the power cable through a certified waterproof conduit to the floodlight's junction box. Connect the wires to the driver terminals, following the wiring diagram. Seal the junction box to maintain weatherproofing.

Test the Light: Restore power and verify the floodlight turns on instantly at full brightness. Check the beam pattern and adjust the angle if needed.

Step 3: Maintenance & Care

Regular Cleaning: Periodically clean the lens and heat sink with a soft brush or low-pressure water spray to remove dust and debris, which can block light and reduce heat dissipation.

Inspect Connections: Every 6–12 months, check the mounting bolts and wiring connections for corrosion or looseness, especially in coastal or high-vibration environments.

Module Replacement (If Needed): If a single LED module fails, simply replace the affected segment - no need to remove or replace the entire fixture, saving time and cost.
