comparison of product parameters
| Application |
Street |
Input Voltage(V) |
AC100-277V |
|
Certification |
RoHS, Saso, CCC |
IP Rating |
IP66 |
|
Light Source |
LED |
Lamp Luminous Efficiency(lm/w) |
140 |
|
Light Distribution Shape |
Type II, Type III, Type Iv Wide, type v, Type V Wide |
Color Temperature(CCT) |
4000K |
|
Color Rendering Index(Ra) |
80 |
Lamp Body Material |
Aluminum alloy |
|
Shade material |
Glass |
Lifespan (Hours) |
100000 |
|
Warranty(Year) |
5-Year |
Support Dimmer |
Yes |
|
Control Method |
Motion Sensor, Remote Control, photocell, Zhaga, Dali, Nema |
Power Supply |
AC |
|
Compatibility |
Smartthings |
Lighting solutions service |
Agi32 Layout, Dialux Evo Layout, Auto Cad Layout, Lighting And Circuitry Design |
|
Required Assembly |
No |
Material |
Aluminium |
|
Place of Origin |
China | Lamp Luminous Flux(lm) | 18000 |
|
Product Weight(kg) |
8.2kg |
Working Temperature(℃) |
-35~+50 |
Core Advantages

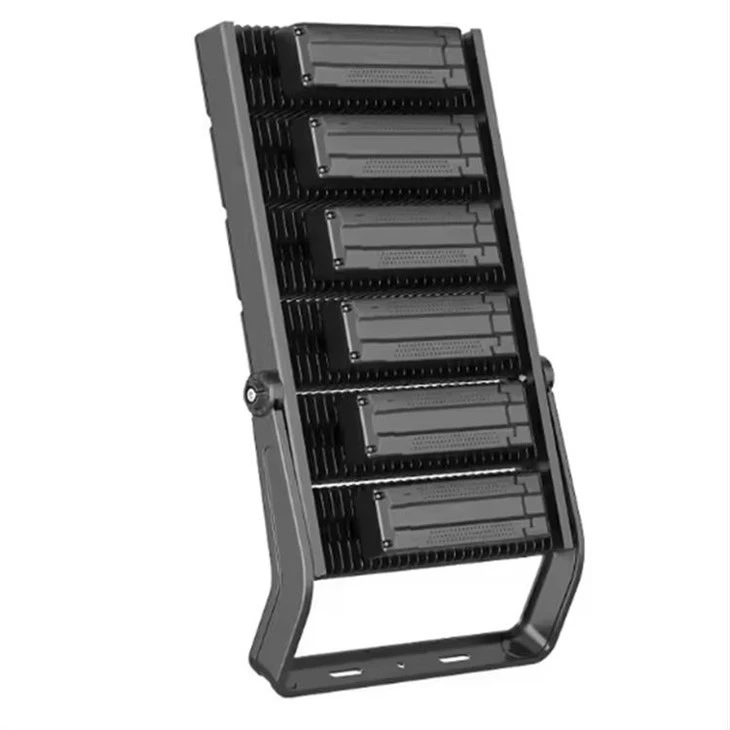

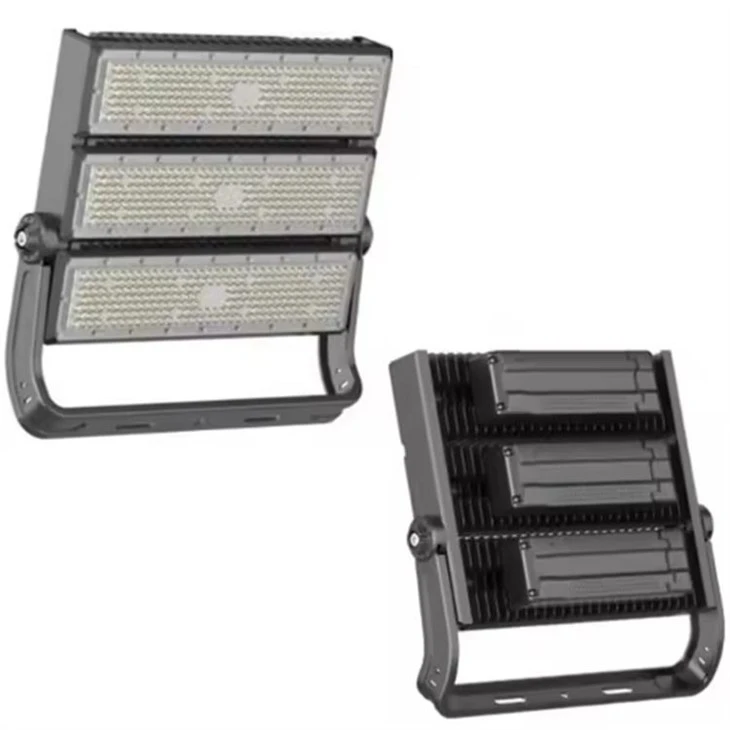

✅ Modular Split Structure Design Independent light module unit design, each module works separately. Fault of single module will not affect the whole luminaire. Easy for later maintenance, module replacement without removing the entire lamp, greatly cut maintenance cost. Multiple modules can be freely combined to realize 250W / 500W / 750W / 1000W flexible power matching.

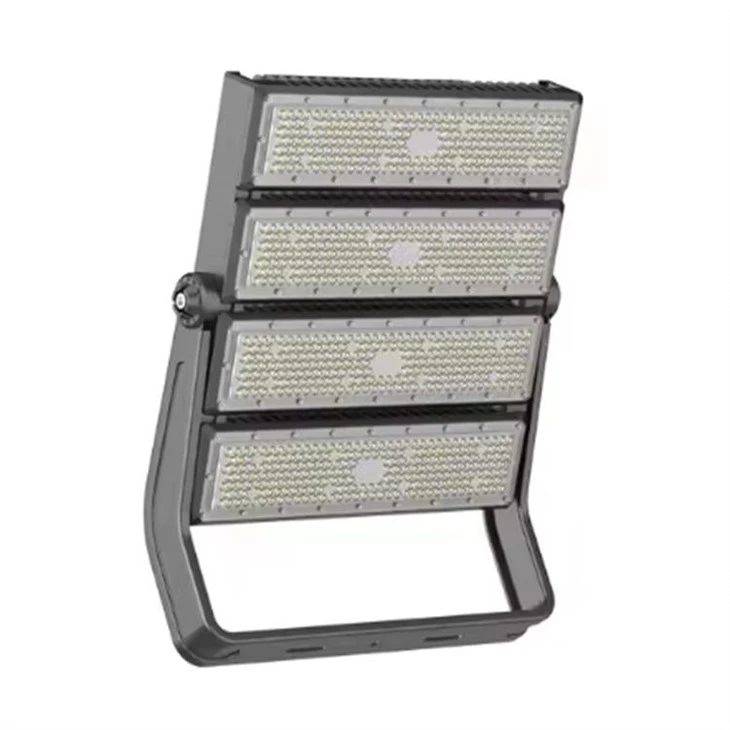

✅ High-Brightness Original LED Chips, Superior Lighting Performance Equipped with high-quality high-lumen LED chips, uniformly arranged inside the light panel. High luminous efficiency, low light attenuation. Uniform light output, wide illumination range, soft and glare-controlled lighting effect. Effectively avoid local dark zones for large-area scene lighting. Supports customized color temperature (3000K~6500K) as project demands.
Core Advantages
✅ Scientific Air Convection Heat Dissipation System Whole lamp housing made of thick die-cast aluminum alloy with dense fin heat sink structure. Excellent thermal conductivity. Accelerate air circulation to rapidly export heat generated by LED chips. Keep LED working temperature within safe range, restrain light decay fundamentally. The thick aluminum structure also prevents lamp shell deformation, oxidation and corrosion under long-term outdoor operation.
✅ Low Light Attenuation & Ultra Long Service Life Reasonable temperature control greatly slows down LED light decay rate. Rated service life reaches over 50,000 hours under standard working conditions. Far longer than traditional halogen lamps and metal halide lamps. Reduce frequent lamp replacement frequency, lower overall project operation cost.
Core Advantages
✅ Premium Protection Grade, Adapt to Harsh Outdoor Environment Whole lamp reaches IP66 waterproof & dustproof rating. Fully sealed internal light cavity structure, effectively block rainwater, dust, fog and moisture intrusion. Can work steadily in rainy, snowy, coastal high-salt spray and dusty industrial environments. Impact-resistant lamp housing, anti-aging surface treatment, strong UV resistance.

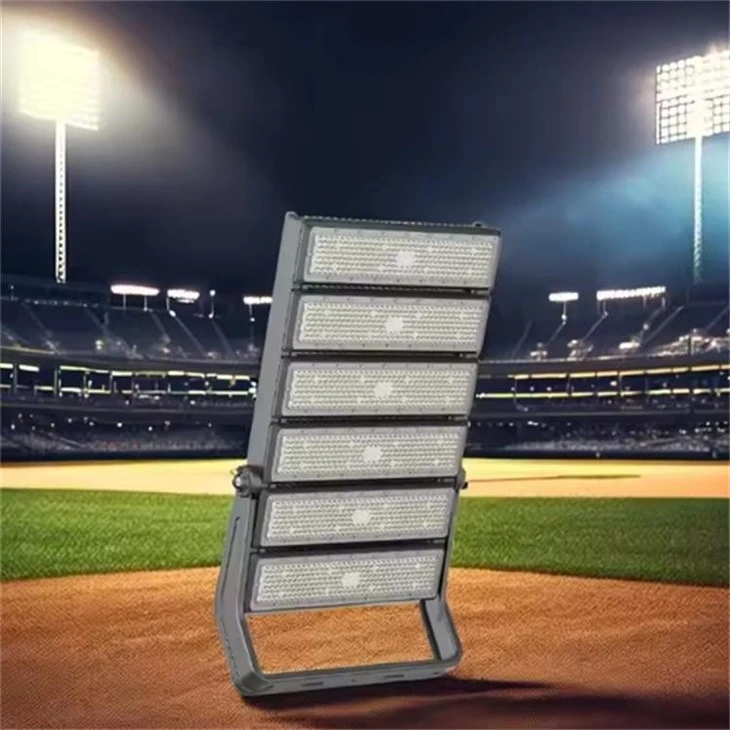

✅ Adjustable Installation Bracket & Flexible Installation Equipped with heavy-duty U-shaped mounting bracket. Support multi-angle tilt adjustment, realize precise light angle aiming. Compatible with pole top mounting, wall mounting and ground fixed installation. Suitable for high mast lighting, stadium light poles and outdoor fixed lighting occasions.
