comparison of product parameters
|
Input Voltage(V) |
AC100-277V |
IP Rating |
Ip67 |
|
Lamp Luminous Efficiency(lm/w) |
150 |
Application |
Stadium, Street, Landscape |
|
Certification |
CE, Emc, LVD, RoHS, FCC, Reach |
Lifespan (Hours) |
50000 |
|
Warranty(Year) |
3-Year |
Color Temperature(CCT) |
3000K/4000K/6000K |
|
Color Rendering Index(Ra) |
80 |
Support Dimmer |
Optional |
|
Material |
Aluminum |
Working Time (hours) |
50000 |
|
Lighting solutions service |
Lighting And Circuitry Design |
Light Source |
LED |
|
Beam Angle(°) |
30°/60°/90°/120°/T2M/T3M |
Lamp Luminous Flux(lm) |
4500-120000LM |
|
Place of Origin |
Guangdong, China |
CRI (Ra>) |
80 |
|
Working Temperature(℃) |
-30 - 50 |
Working Lifetime(Hour) |
50000 |
|
Appplications |
Stadium/Street/Landscape/Shop |
Applicable Distance |
3-100 Meters |
|
LED Driver |
MeanWell/Sosen/Moso etc. |
Surge Protector |
10KV / 4KV Optional |

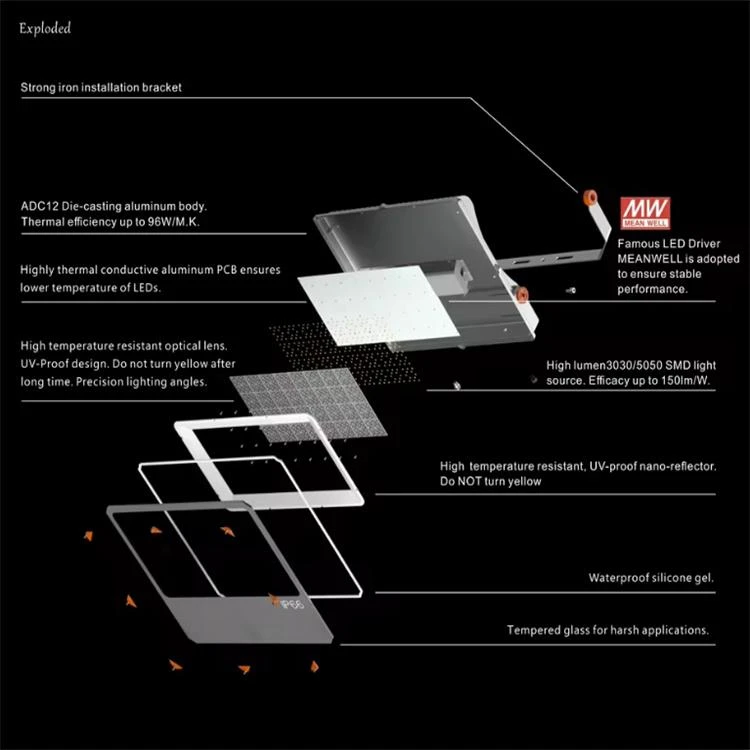

Superior Luminous Performance
Equipped with high‑quality 3030 / 5050 SMD LED light sources, luminous efficacy reaches up to 150lm/W, outputting stable high‑brightness illumination.
Customizable precision optical lens options deliver targeted beam angles, cutting light waste and maximizing ground utilization of luminous flux.
Nano‑plastic UV‑proof reflector resists yellowing under long‑term sun exposure, maintaining consistent optical performance over years of operation.

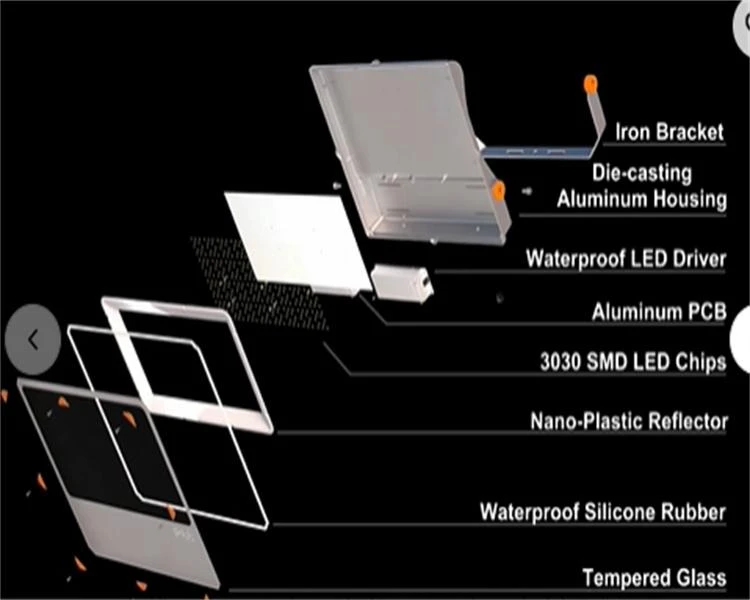

Heavy‑Duty Heat Dissipation System
Housing constructed from ADC12 die‑casting aluminum material, thermal conductivity up to 96W/M·K.

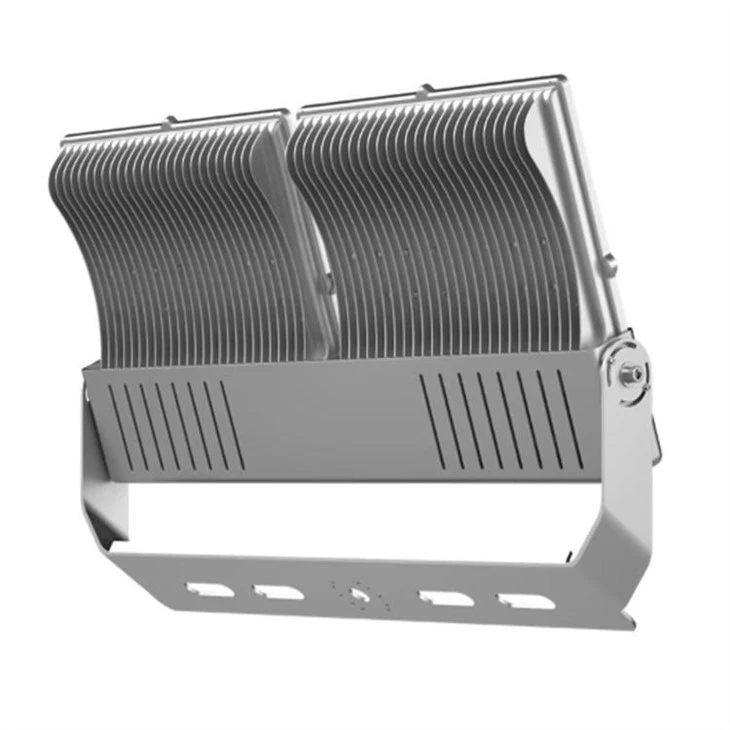

Curved fin‑type heat sink structure expands heat‑dissipating surface area, rapidly conducting internal heat out of lamp body.
Optimized air convection channel avoids heat accumulation inside fixture, prevents LED over‑aging caused by high operating temperature.

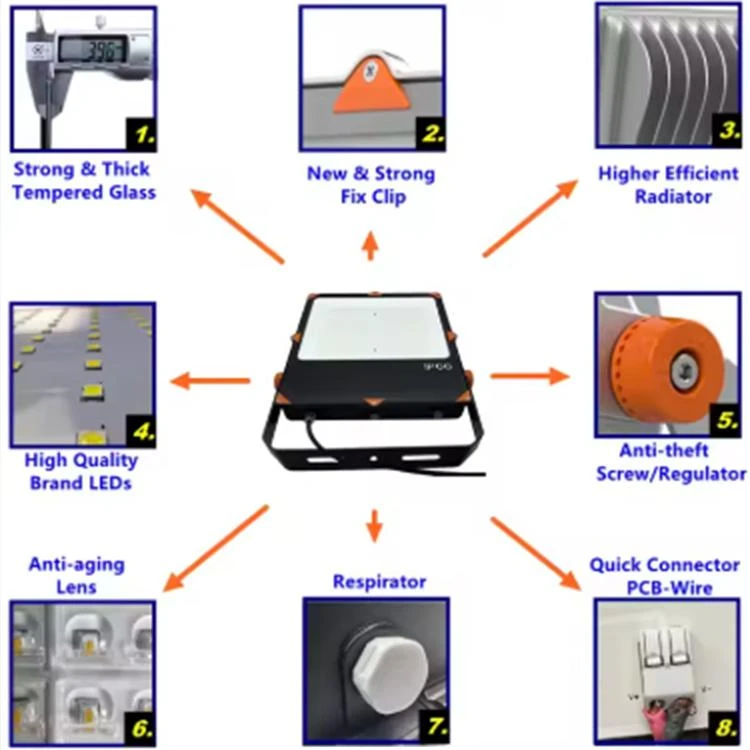

Protection Rating & Rugged Build Quality
IP66 Ingress Protection Grade: fully dust‑tight, resistant against powerful high‑pressure water jet splashing, adapts to rainy days, coastal salt‑spray environment and dusty construction sites.
4mm+ thickened tempered glass, anti‑impact and shock‑resistant, withstands external hard‑object strike for harsh outdoor working conditions.
Full‑circle waterproof silicone rubber sealing ring blocks moisture and humid air from penetrating inside lamp cavity.
Built‑in breathable respirator valve balances internal‑external air pressure, eliminates condensation risk inside lamp housing.
Anti‑theft adjustable locking regulator, supports multi‑angle positioning, prevents unauthorized tampering after installation.
Reinforced iron mounting bracket with multiple mounting slots, convenient for wall‑mount, pole‑mount and high‑pole installation.
Reinforced fixing clips secure glass and panels firmly, anti‑loosening under long‑term vibration scenarios.
Quick‑connect PCB‑wire connector simplifies on‑site wiring work, enhances connection stability.
