Products Description
| IP Rating | IP66 | Input Voltage(V) | AC90-305V |
| Light Source | LED | Lamp Luminous Efficiency(lm/w) | 130 |
| Lifespan (Hours) | 50000 | Color Rendering Index(Ra) | 75 |
| Color Temperature(CCT) | 2700-6500k | Warranty(Year) | 3 |
| Support Dimmer | Yes | Lighting solutions service | Lighting And Circuitry Design |
| Lamp Luminous Flux(lm) | 38920 | Place of Origin | Guangdong, China |
| Working Temperature(℃) | -30 - 60 | Lamp Luminous Efficiency(lm/w) | 130 |
| Lamp Power Options | 50-1000 watt | LED Chip |
Lumileds SMD 3030 |
| Power Factor | >0.9 | Beam Angle | 60°/90° |
| Lamp Body Material | Aluminum Alloy | Lamp Power Options | 50-1000 watt |
Product Feature

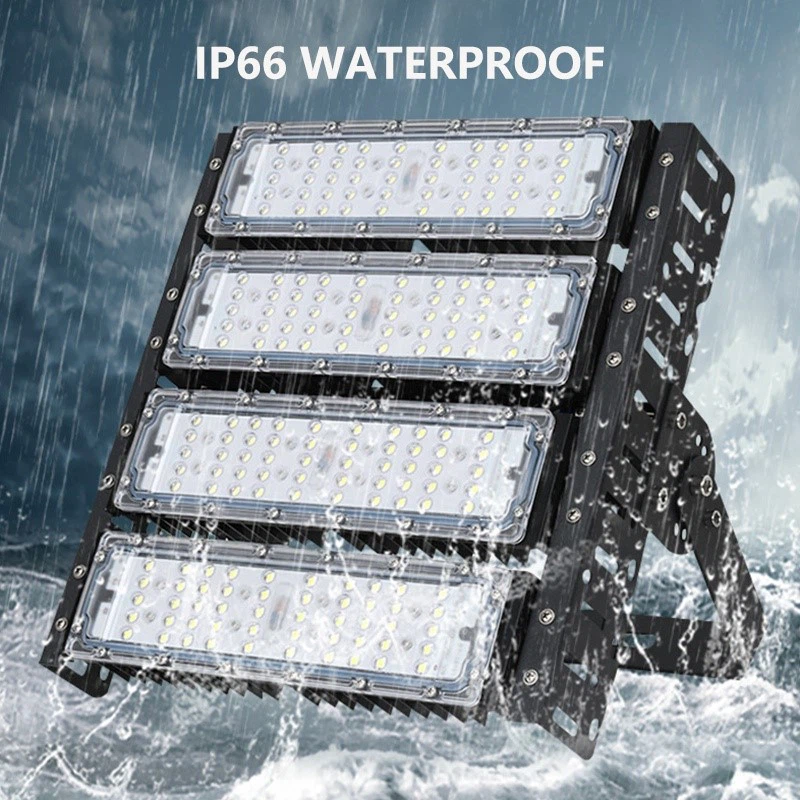

1. IP66 Industrial-Grade Waterproof & Weatherproof
Built to withstand the worst Mother Nature can throw at it, this flood light features a fully sealed IP66-rated housing. Every joint, screw and lens is protected by high-quality silicone gaskets, creating an impenetrable barrier against heavy rain, snow, dust, sand and even high-pressure water jets. It will keep shining bright through storms, blizzards and dusty construction sites, eliminating downtime and costly repairs caused by water or dust damage.

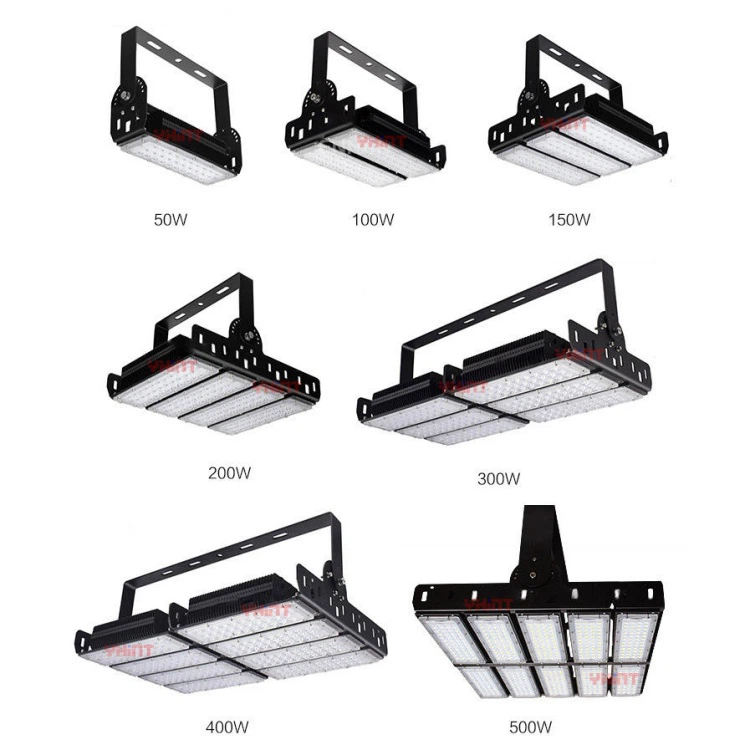

2. Modular Scalable Design (50W to 500W Power Range)
The revolutionary modular design is the biggest advantage of this flood light, giving you complete flexibility to match your exact lighting needs:
Choose from 6 power options: 50W, 100W, 150W, 200W, 300W, 400W and 500W, all using the same base frame.
Each LED module operates independently, so if one module fails, you only need to replace that single unit instead of the entire fixture-saving you hundreds in maintenance and replacement costs.
Scale up your lighting as your needs grow: start with a 100W fixture and add modules later to reach 200W or 300W without buying a whole new light.

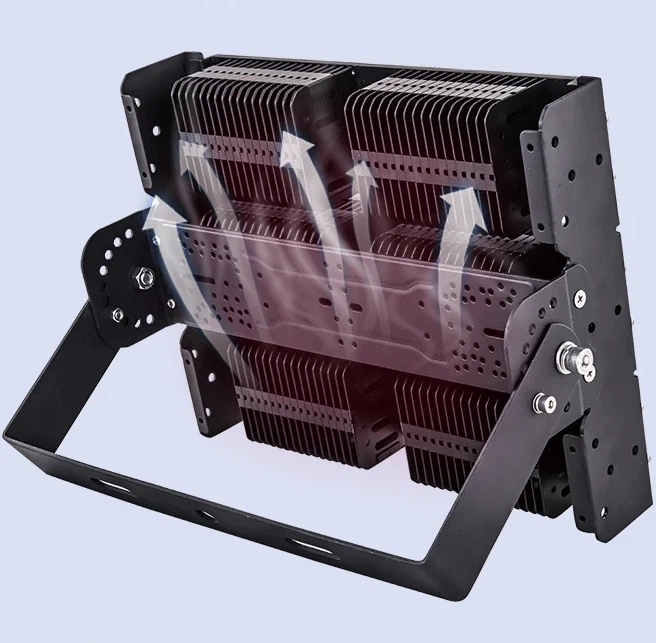

3. Advanced Fin Heat Dissipation for 50,000+ Hours of Life
Overheating is the #1 cause of LED failure, and this flood light solves that problem with a precision-engineered all-aluminum fin heat sink. The dense, vertical fins maximize surface area for natural convection cooling, drawing heat away from the LED chips 3x faster than standard flat-back designs. This keeps the LEDs running at optimal temperatures, extending their lifespan to over 50,000 hours-meaning you'll go years without needing to replace a bulb.
Product Feature

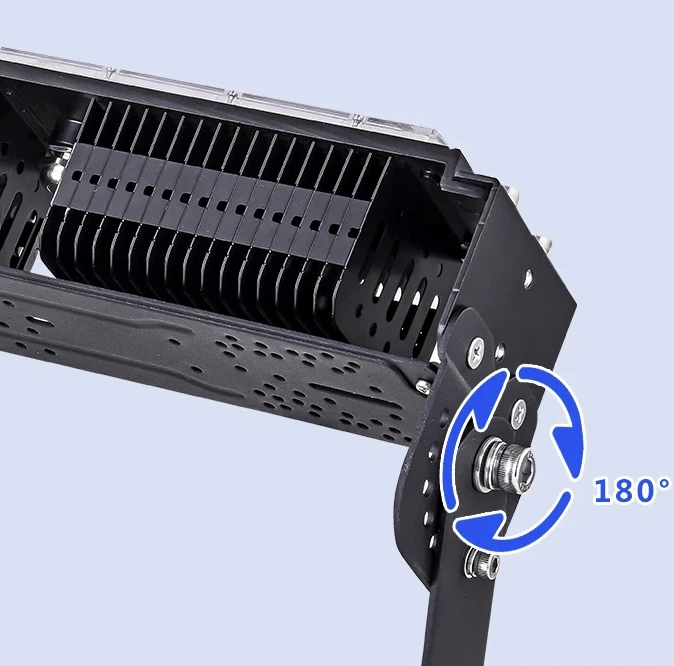

4. 180° Adjustable Mounting Bracket for Precision Lighting
No more wasted light! The heavy-duty steel mounting bracket allows the entire fixture to tilt a full 180 degrees, so you can direct the beam exactly where you need it. Whether you're illuminating a tall billboard, a narrow driveway or a wide sports field, you can fine-tune the angle to eliminate dark spots and ensure uniform coverage. The bracket features pre-drilled mounting holes for quick and secure installation on walls, poles, ceilings or any flat surface.
5. Ultra-Bright, Energy-Efficient Performance
Equipped with high-efficiency SMD LED chips, this flood light delivers an impressive 130 lumens per watt-producing the same brightness as a 2500W halogen bulb while using 80% less electricity. The wide beam angle provides even, shadow-free illumination across large areas, reducing the number of fixtures you need to install and slashing your monthly energy bills. The 5000K daylight white light is crisp and clear, perfect for tasks that require high visibility and safety.
6. Rugged, Impact-Resistant Construction
Built for industrial use, this flood light features a thick die-cast aluminum housing and shatterproof PC lens that can withstand impacts, vibrations and extreme temperature fluctuations (-40°F to 140°F). It's designed to take the abuse of construction sites, warehouses and industrial facilities, ensuring years of reliable service even in the toughest working conditions.
🛠️ Quick & Easy Installation & Usage Guide
This flood light is designed for hassle-free installation, requiring no special tools or professional training:
Step 1: Prepare the Installation Site
Choose a sturdy mounting surface (wall, pole, ceiling or bracket) that can safely support the weight of the fixture (up to 15 lbs for the 500W model).
Mark the mounting holes using the bracket as a template, then drill pilot holes into the surface.
Step 2: Mount the Bracket
Secure the mounting bracket to the surface using the included heavy-duty screws and anchors.
Tighten all screws firmly to ensure the bracket is stable and will not shift over time.
Step 3: Adjust the Lighting Angle
Loosen the two adjustment bolts on the sides of the bracket.
Tilt the fixture to your desired angle (0° to 180°), then retighten the bolts to lock it in place.
Step 4: Wire the Fixture
Connect the black (live), white (neutral) and green (ground) wires from the fixture to your building's electrical system.
For outdoor installations, use a waterproof junction box to seal the wiring connections and prevent water intrusion.
Double-check all wiring to ensure there are no loose connections or exposed wires.
Step 5: Test & Fine-Tune
Turn on the power and test the light to ensure it is working properly.
Make any final adjustments to the angle to achieve the perfect lighting coverage.
Maintenance Tips
Clean the lens periodically with a soft cloth to remove dust and dirt, which can reduce light output.
If a module fails, simply unscrew the four screws holding the module in place, disconnect the wiring, and replace it with a new module-no need to remove the entire fixture from the wall.
