Description

Main components:

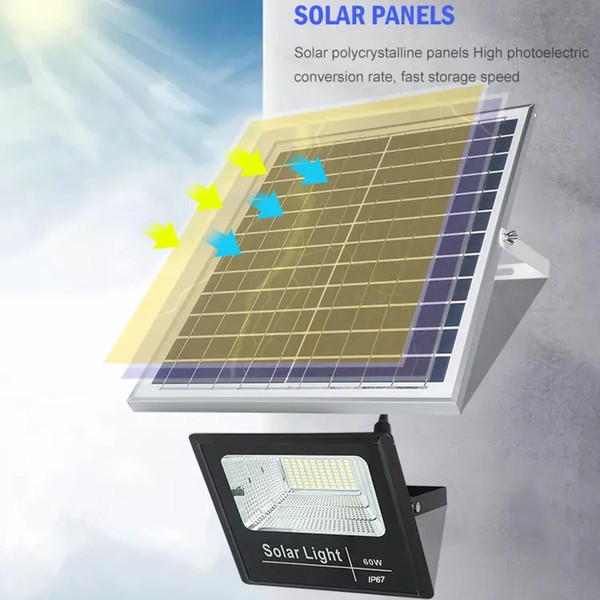

Solar panel: Responsible for absorbing solar energy. Some are integrated with the lamp body, while others are in a separate design (connected by wires). The separate design allows for more flexible orientation of the panel towards the direction with the most sunlight.
Lithium battery: Usually, it refers to rechargeable lithium-ion batteries, which are the energy core of the equipment. The capacity size (unit: Ah or mAh) directly determines the duration of lighting.
LED light beads: Light source, usually using highly efficient and energy-saving LED chips, with high brightness and long lifespan. The number and power of the light beads determine the brightness.
Intelligent controller: The brain of the system. It is responsible for managing charging, discharging, light control (automatically turns on when it gets dark), and human sensing (becomes brighter when someone passes by).
Shell and lamp body: Usually have waterproof and dustproof functions (depending on the IP rating, such as IP65), ensuring they can adapt to various outdoor weather conditions.
Installation bracket: Facilitates the installation of the lamp on walls, pillars, etc., and allows for adjustment of the illumination angle.
Specification
|
Power |
50W |
100W |
150W |
200W |
|
Lamp Size |
250*200*68mm |
330*255*85mm |
360*285*93 mm |
400*325*108 mm |
|
Solar Panel |
18V 15W Polycrystalline |
9V 25W, Polycrystalline |
18V 30W, Polycrystalline |
18V 50W, Polycrystalline |
|
Battery Type |
LiFePO4 12.8V 5AH |
LiFePO4 6.4V 15AH |
LiFePO4 12.8V 10AH |
LiFePO4 12.8V 15AH |
|
Charging time |
6-8 hours |
|||
| Discharging time | 12-15 Hours | 30-36 hours | ||
|
IP Rating |
IP67 |
|||
|
Lumen |
160lm/w |
|||
|
Material |
Die-casting Aluminium |
|||
|
Warranty |
5 yesrs |
|||
Products Details



Applications
Outdoor areas of the home: patios, gardens, garage entrances, fences, balconies.
Security lighting: Perimeter lighting and security monitoring supplementary lighting for warehouses, factories, construction sites, farms, and livestock farms.
Public areas: Park paths, parking lot, community square, billboard lighting.
Powerless areas: remote guard posts, signal towers, temporary construction sites, etc.
