comparison of product parameters
| Input Voltage(V) | AC 85-265V/DC 12V/24V | IP Rating | IP66 |
| Lamp Luminous Efficiency(lm/w) | 100 | Application | ROAD garden landscape warehouse |
| Certification | Emc | Light Distribution Shape | Adjustable |
| Lifespan (Hours) | 30000 | Warranty(Year) | 2-Year |
| Color Temperature(CCT) | 6000K (Daylight Alert) | Color Rendering Index(Ra) | 80 |
| Installation | Surface Mounted | Material | Aluminum |
| Lighting solutions service | Lighting And Circuitry Design | Special Feature | waterproof |
| Light Source | LED | Led chip | Cob, 5054 |
| Beam Angle(°) | 120 | Lamp Luminous Flux(lm) | 4500 |
| Place of Origin | Guangdong, China | Working Temperature(℃) | -20 - 50 |
| Product Name | Led flood light | Power | 10W/20W/30W/50W/100W/150W/200W/300W |
| Color Temperature(CCT) | 2700-8000K | Material | Aluminum+Glass |
Premium Structural & Core Optical Performance

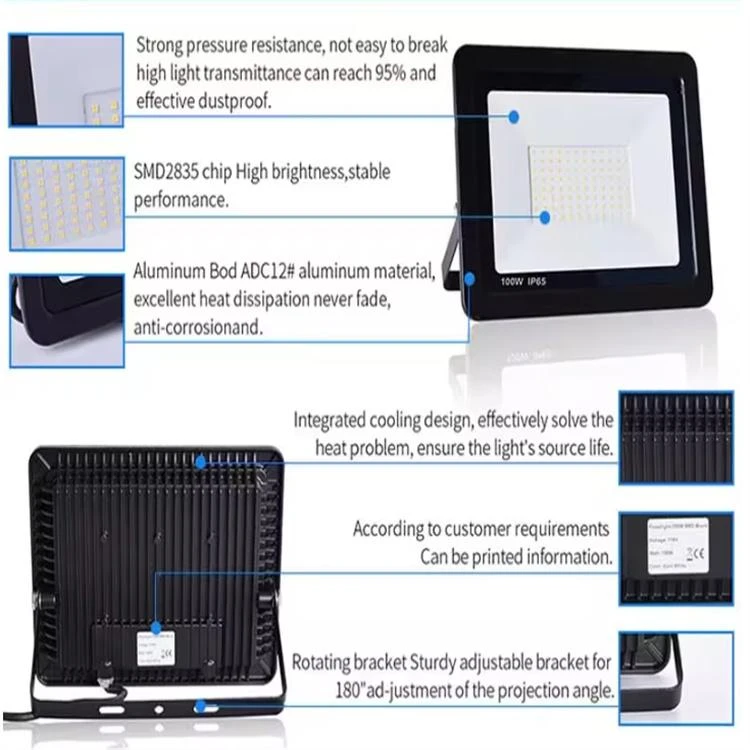

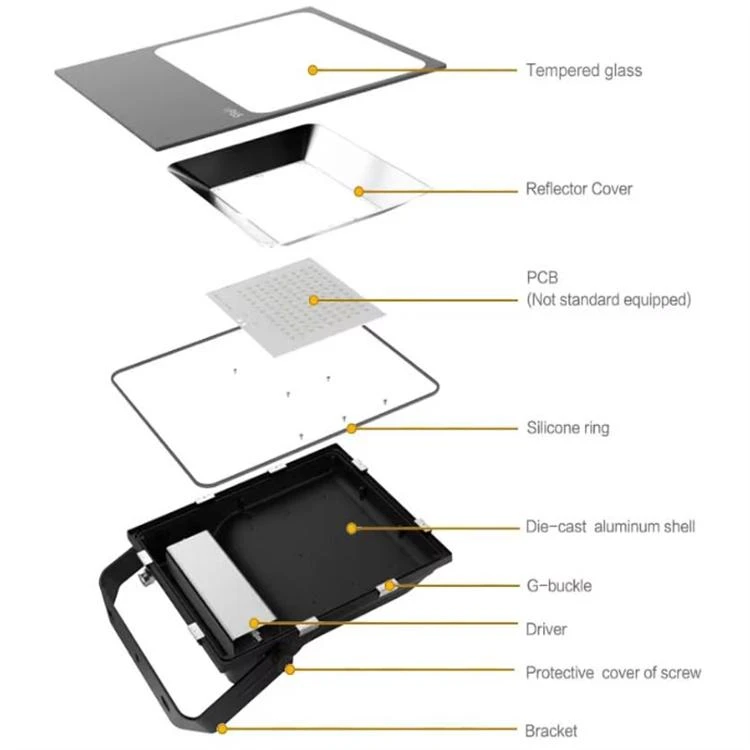

Robust ADC12 Die-Cast Aluminium Housing & Ribbed Heat Sink One-piece die-cast ADC12 aluminium alloy with an incorporated dense fin heat sink structure is used for the lamp body. The increased ribbed cooling surface quickly drains heat produced by the driver and LED chips, keeping the core working temperature low to prevent light deterioration. Excellent anti-corrosion performance against rain, sea salt mist, and industrial dust is provided by oxidation and anti-rust surface treatment, which also prevents shell deformation and fading even after years of outdoor exposure.
Thickened impact-resistant tempered glass with up to 95% light transmittance is used in the High Light Transmittance Tempered Safety Glass Lens Front panel to maximise light output efficiency without sacrificing brightness. It has a smooth surface coating for simple rain self-cleaning to prevent dust accumulation obstructing light, high pressure resistance, and shatterproof performance against hail, flying debris, and unintentional collisions.
Aluminium Reflector Cover with High Reflectivity An integrated polished aluminium reflector bowl maximises light distribution by focusing light output to remove dispersed light waste, resulting in a more concentrated and expansive lighting range without light spillage. Uniform light output eliminates the uneven brightness and dark patches that are typical with inexpensive flood lights.
SMD5054/SMD2835 LED PCB Light Source with High Stability For secondary heat dissipation, high-brightness, low-heat SMD LED chips are stacked neatly on a thick aluminium PCB board. Consistent brightness output during extended continuous working hours; constant luminous efficiency without dead pixels or flickering; far better than subpar COB chips that are prone to overheated burnout.
G-Buckle Lock Design + Full Density Silicone Sealing Ring Tight metal G-buckles securely fasten the whole lamp body, and a high-elasticity food-grade silicone gasket completely covers the space between the glass lens and the aluminium housing. A zero internal gap keeps water, dust, fog, and microscopic insects out of the interior chamber, preventing short circuits and circuit damage from outside moisture penetration.
Isolated Constant Current Driver Independent built-in driver module with multi-layer circuit protection; kept apart from the LED light board to prevent heat transmission that speeds up chip ageing. The driver operates steadily under large voltage fluctuations since it is encased within an aluminium chamber with additional heat insulation.
Heavy-Duty Metal Mount Bracket with 180° Full Adjustment Flexible directional lighting is supported by a rotating bracket made of thickened galvanised steel with a stronger locking screw construction that allows for 180° vertical angle adjustment. The light fixture is securely fixed against high wind and vibration without changing angle thanks to many extended mounting slots that fit wall, pole, ground, and ceiling installations.
Protective Screw Cover for Complete Sealing All assembly fasteners are covered by dedicated plastic screw covers, which further enhance the lamp body's overall waterproof and dustproof integrity while avoiding screw corrosion brought on by rainfall and salt spray.
Service Lifespan, Lumen Decay & Energy Loss Advantages
Extremely Long Rated Service Life of 50,000 Hours A 50,000-hour rated service lifetime is provided by an optimised dual heat dissipation system (aluminium PCB + ribbed die-cast housing) that maintains the operating temperature of LED chips below a safe level. The fixture has been providing daily 8-hour outside illumination for more than 17 years without needing to be replaced, saving facility managers money on labour maintenance and recurring bulb purchases.
Extremely Low Rate of Long-Term Lumen Depreciation After 50,000 hours of operation, lumen loss is kept below 30% thanks to an advanced heat management system. Within 20,000 hours, inexpensive uncooled flood lights lose more than 45% of their brightness; our model, on the other hand, maintains a consistent high brightness without any noticeable darkening or light attenuation.
Low Power Waste & High Energy Conversion Efficiency When compared to antiquated halogen and metal halide flood lights, high-lumen SMD LED chips reach power conversion efficiency up to 90%, reducing energy usage by 70%. During continuous nightly outdoor illumination, an isolated constant-current driver reduces invalid heat energy loss and eliminates further power waste.
Multi-Layer Intelligent Circuit Defence Against Premature Failure Overvoltage, overcurrent, short circuit, surge, and overtemperature protection are all integrated into the built-in driver integrated circuit. prevents premature bulb scrapping caused by power fluctuation at distant construction sites and rural regions by automatically cutting power to protect LED chips during thunderstorm voltage spikes and unstable grid power.
Almost No Transport and On-Site Breakage Loss Fragile component damage during ocean transport and on-site installation is prevented by a rigid die-cast aluminium frame and shatter-resistant tempered glass. For large-scale commercial and industrial applications, there are no readily damaged consumable parts within the lamp cavity, resulting in almost negligible follow-up replacement loss.
Humanized Optical & Functional Advantages
Various Power Wattage Choices (30W, 100W, and 200W) Low-power 30W for tiny garden yards, medium-power 100W for parking lots and shopfronts, and high-power 200W for huge warehouses, stadiums, and construction sites are just a few of the power specs available to meet various lighting coverage needs.
Three colour temperature options are available: 3000K Warm White, 4000K Neutral White, and 6000K Cool White. Cool white provides ultra-clear high visibility for industrial security and construction lighting, neutral white balances visibility for commercial shopfronts, and warm white produces soothing landscape ornamental illumination.
No Warm-Up Delay, Instantaneous Full Bright Startup Ideal for regularly switched security lighting systems and motion sensor matching, it rapidly turns on to full brightness upon power connection without delayed preheating.
Glare-Reduced & Flicker-Free Optical Design In accordance with worldwide eye-protection lighting regulations, low-frequency stroboscopic flicker is eliminated via high-frequency constant-current driving. For security personnel working lengthy night shifts, an optimised reflector reduces visual strain by avoiding strong glare.
Mercury-Free Eco-Friendly Light Source Completely RoHS compliant, with no mercury, UV, or infrared radiation. Safe for public outdoor areas, food processing zones, and residential yards without the danger of harmful material leaks during disposal.
