comparison of product parameters
|
Input Voltage(V) |
AC110V / 220V |
IP Rating |
IP66 |
| Lamp Luminous Efficiency(lm/w) | 80 |
Application |
Garden |
|
Certification |
CE, Emc, RoHS |
Lifespan (Hours) |
30000 |
|
Warranty(Year) |
2-Year |
Color Temperature(CCT) |
2700K (Soft Warm White), 6000K (Daylight Alert), 5000K (Daylight), 4100K (Neutral White) |
|
Color Rendering Index(Ra) |
70 |
Installation |
Wall Mount, Surface Mounted |
|
Support Dimmer |
No |
Material |
Die-cast Aluminum |
|
Lighting solutions service |
Lighting And Circuitry Design, Onsite Metering, Dialux Evo Layout, Litepro Dlx Layout, Auto Cad Layout, Agi32 Layout, Project Installation |
Special Feature |
High Bright |
|
Light Source |
LED |
Led chip |
SMD |
|
Beam Angle(°) |
120 |
Lamp Luminous Flux(lm) |
80lm/W |
|
Place of Origin |
Guangdong, China |
CRI (Ra>) |
70 |
|
Working Temperature(℃) |
-25-50 |
Working Lifetime(Hour) |
30000 |
|
Product Name |

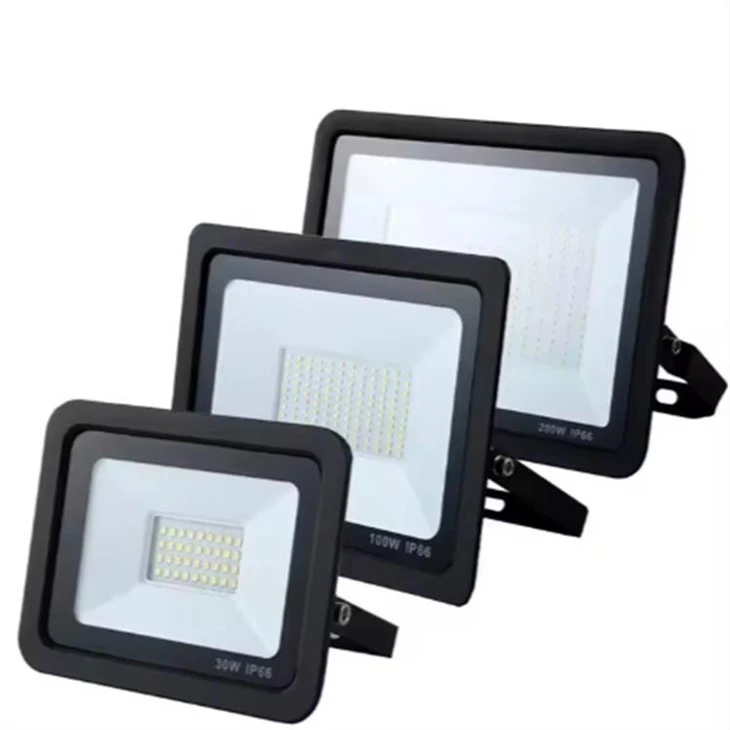

30W 50w 100w 200w 300w Flood Light |
LED Driver |
Integrated Led driver |
Core Structure & Build Quality
Premium Die-cast ADC12 Aluminum Shell High-strength integrated die-casting aluminum housing with fin-type heat sink structure. Optimized convection cooling design rapidly conducts internal heat away from LED chips, effectively lowering working temperature, preventing light decay and protecting internal electrical components. The housing features anti-corrosion, anti-rust coating, adapting to coastal, humid and dusty harsh outdoor environments.
High-transmittance Tempered Glass Cover Pressure-resistant, impact-proof tempered glass with up to 95% light transmittance. Hard surface resists scratches, water erosion and accidental impact; excellent dustproof performance ensures consistent light output without brightness loss caused by surface fouling.
Silicone Sealing Ring & Full Waterproof Construction High elasticity silicone gasket is installed between glass panel and lamp housing. Combined with precise assembly structure, it realizes reliable sealing performance to block rainwater, fog and fine dust penetration.
180° Rotatable Adjustable Metal Bracket Heavy-duty metal mounting bracket supports 180° angle adjustment freely. Customers can flexibly set the lighting projection angle to match different installation scenarios, including wall mounting, ground mounting and pole mounting. Reinforced locking screws keep the lamp fixed firmly without slipping after angle adjustment.
High-efficiency Reflector Cover Built-in precision reflector optimizes light distribution curve, reduces light waste, improves light utilization rate and achieves uniform wide-area illumination without obvious dark zones.
Protection Rating & Environmental Adaptability
IP66 Ingress Protection Rating Official IP66 waterproof and dustproof grade.
Dust tight: No dust ingress into the lamp interior;
Water resistant: Protected against powerful high-pressure water jet from any direction. The flood light can work normally in heavy rain, spray, humid weather. Not suitable for long-term full submersion underwater.
Wide Operating Temperature Range Capable of stable operation within -30℃ ~ +55℃ ambient temperature. It works normally in cold winter and high-temperature summer without sudden brightness drop or startup failure.
Anti-Corrosion & Anti-UV Performance Surface electrostatic spraying treatment prevents oxidation and UV aging. The lamp housing will not fade, crack or deform under long-time outdoor sunlight exposure.
Energy Efficiency & Application Advantages
Outstanding Energy Saving Effect Up to 80% energy saving compared with traditional halogen floodlights. It cuts long-term electricity expenditure significantly for commercial and industrial users.
Instant On, No Warm-up Time Turn on to reach full brightness immediately; no repeated startup limitation, suitable for sensor lighting and frequent switch-on scenes.
Customization Support Custom silk-screen logo, customized power, color temperature, cable length are acceptable to meet bulk project and brand resale requirements.
Wide Application Scenarios Perfect for warehouse lighting, factory workshop, parking lot, garden, courtyard, stadium, billboard lighting, construction site, plaza, road side outdoor lighting and other commercial & residential outdoor lighting projects.
