Products Description

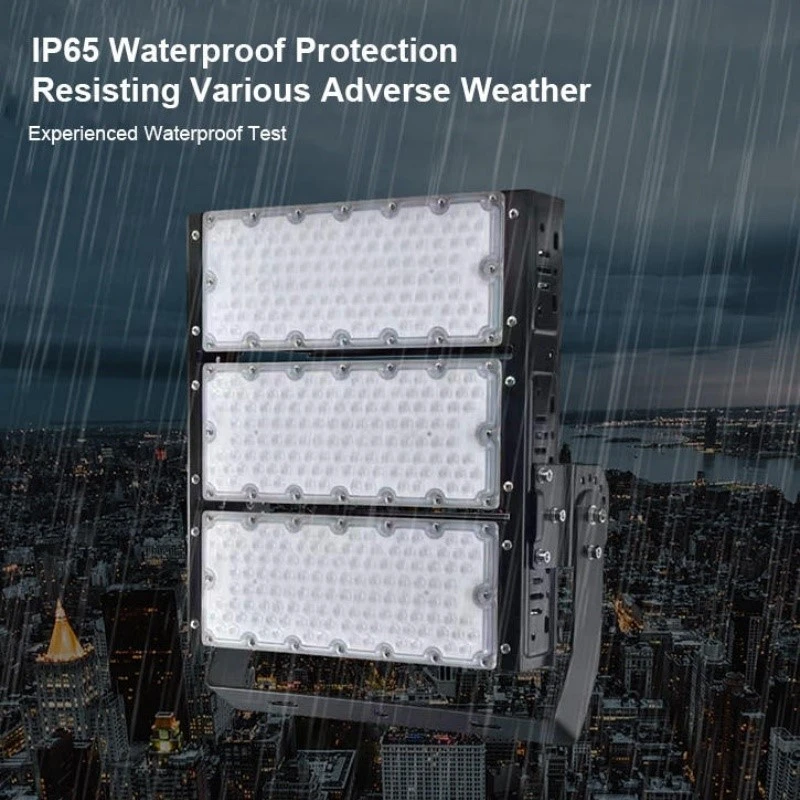

1. The entire light fixture is sealed for waterproofing and dustproofing, achieving an IP65 protection rating. This prevents dust from entering the fixture and protects against heavy rain and high-pressure water jets. An integrated 8kV/10kV surge protection module minimizes the risk of lightning strikes during thunderstorms, ensuring stable operation year-round in unobstructed outdoor environments such as open-air stadiums and factories.
2. It comes with a thickened, adjustable mounting bracket with multiple pre-drilled holes. This allows for horizontal mounting to the top of high poles for stadium applications, as well as wall mounting or pole mounting on walls and columns. The screw-locking mechanism allows for precise adjustment of the light's projection angle, ensuring accurate control of the illumination coverage. Installation is simple.

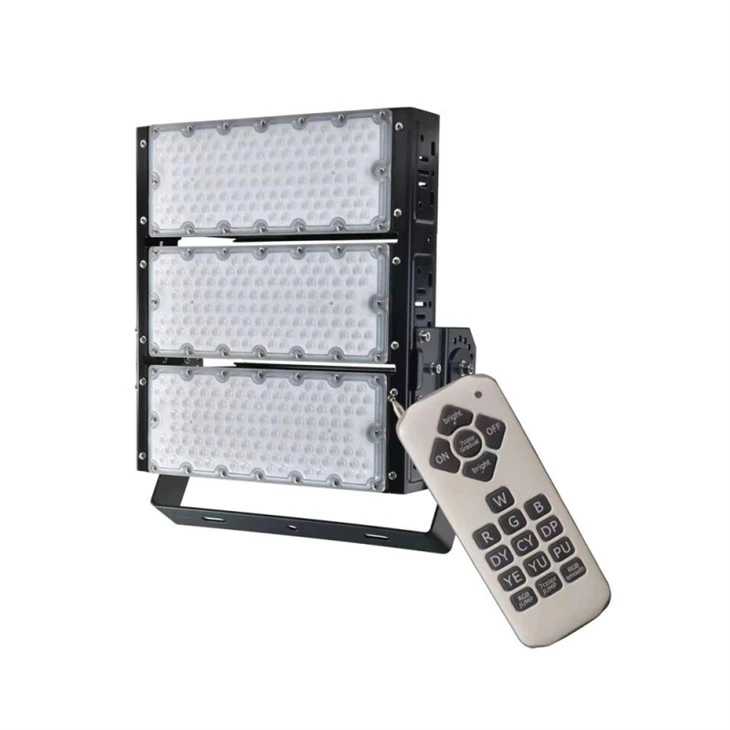

3. The standard white light version can be directly powered on by connecting to the corresponding rated power supply. The RGB color version comes with a wireless remote control, allowing for remote on/off operation, brightness adjustment, and switching between various light colors. This eliminates the need to climb the pole for remote control, enabling flexible adjustments to lighting effects for sports events and outdoor landscapes.
| Products Name | Outdoor Sport Fields Led Floodlight | Input Voltage(V) | AC 85-265V |
| IP Rating | IP65 | Lamp Luminous Efficiency(lm/w) | 150 |

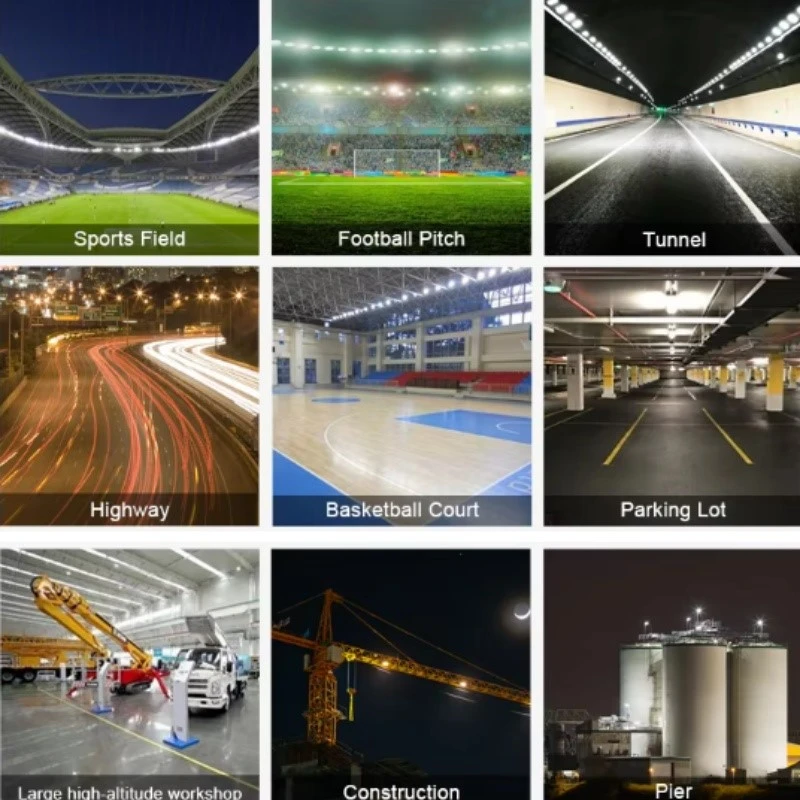

| Application | Outdoor, Tunnel | Certification | Emc, RoHS, CE |
| Lifespan (Hours) | 50000 | Warranty(Year) | 3-Year |
| Color Temperature(CCT) | 6000K (Daylight Alert) | Color Rendering Index(Ra) | 80 |
| Support Dimmer | yes | Material | Aluminum+ PC |
| Led chip | smd | Lighting solutions service | Project Installation |
| Light Source | LED | Beam Angle(°) | 20, 40, 60, 90 degree |
| Control Method | Switch | Feature | Anti-Glare, High Brightness, Eco-Friendly, Durable, Easy Installation |
| Lamp Luminous Flux(lm) | 45000 | Working Temperature(℃) | -40 - 50 |
| Design Style | Modern | Power Factor | >0.9 |
| Power | 400w 500w 600w 100w 200w 300w | Installation | Surface Mounted |
| Color | Black | Product Weight(kg) | 7.2 |
More Detial

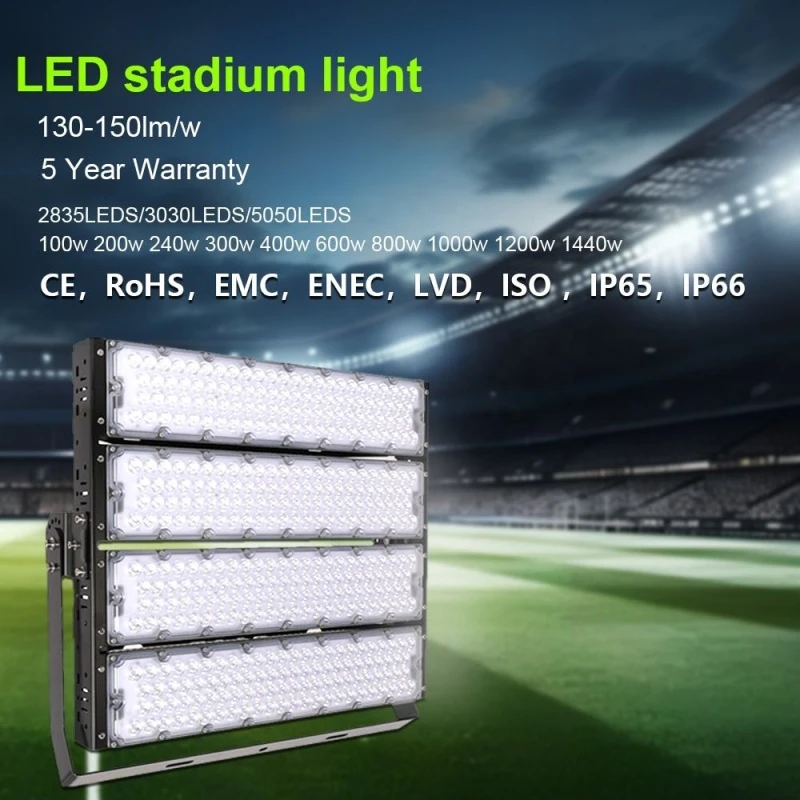

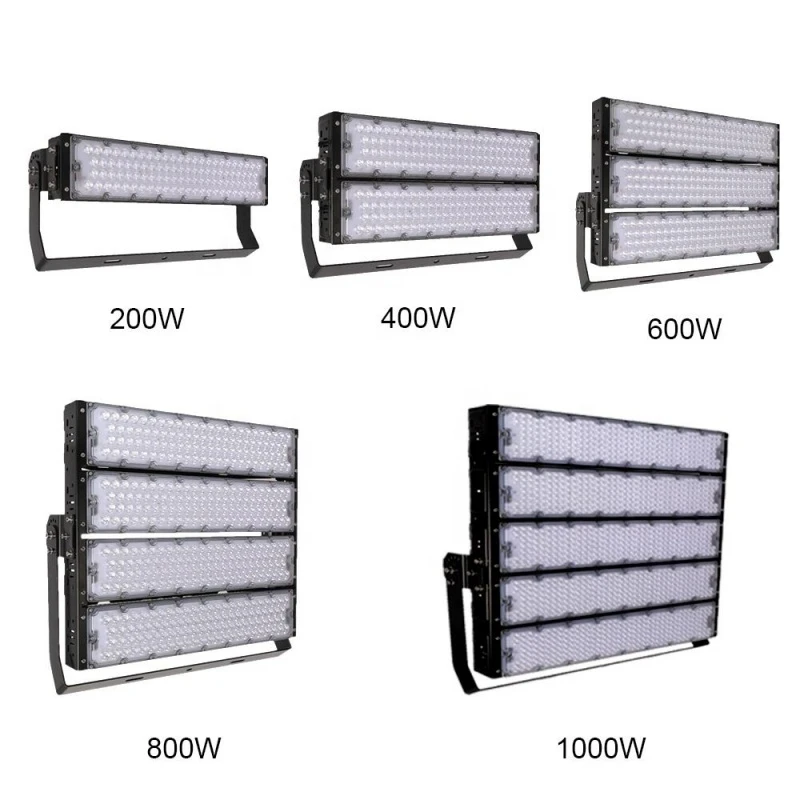

This modular LED high-power floodlight is a professional lighting fixture designed for large-scale outdoor venues. Its core advantage lies in its modular splicing structure, breaking away from the limitations of traditional fixed-power lights. From small sports fields and factory yards to standard sports fields and large logistics parks, power can be flexibly matched by adding or removing modules to create customized lighting solutions.

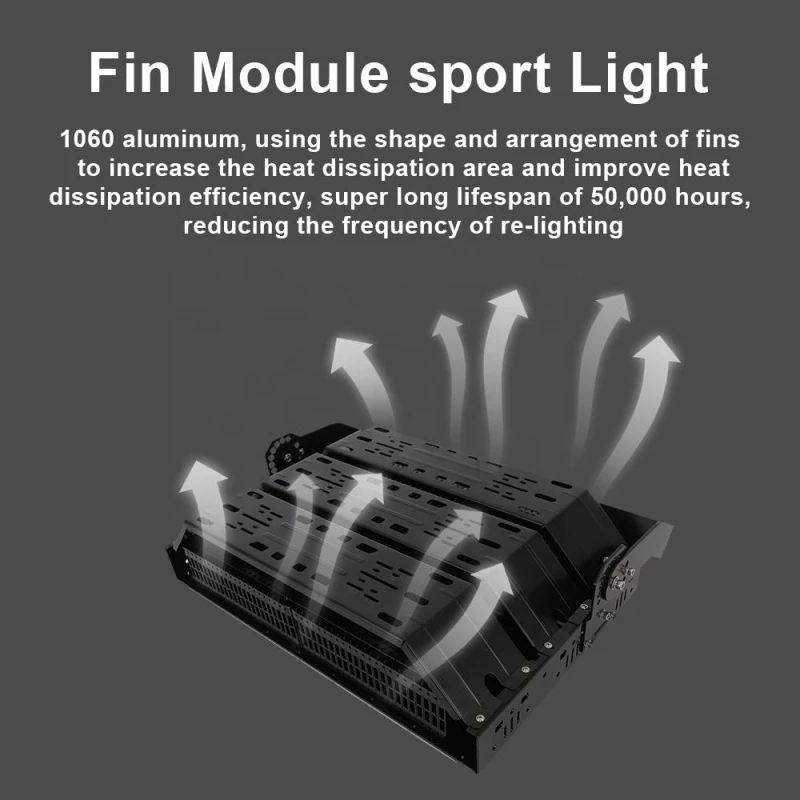

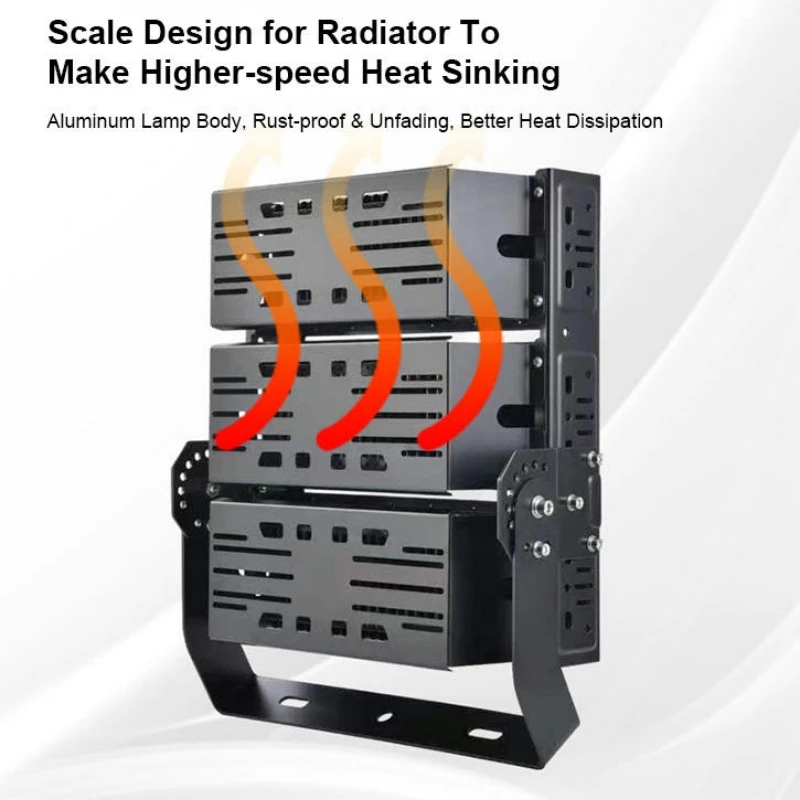

Installation is very easy. The adjustable bracket is compatible with most outdoor installation scenarios, including pole mounting, high-pole mounting, and wall mounting. Electricians can complete the deployment simply by connecting the power using standard wiring. The efficient heat dissipation of aluminum fins combined with an IP65 waterproof and lightning protection design makes it perfectly suited for outdoor environments exposed to sun and rain. It is not prone to failure even with continuous operation year-round. Its ultra-long lifespan plus a 5-year warranty significantly reduces the cost of later maintenance and replacement.
