comparison of product parameters
|
Application |
Sports Stadiums |
IP Rating |
IP65 |
|
Input Voltage(V) |
AC 220V( ± 10%) |
Control Mode |
Switch Control |
|
Lamp Luminous Efficiency(lm/w) |
120 |
Lifespan (Hours) |
30000 |
|
Color Temperature(CCT) |
6000K (Daylight Alert) |
Lamp Body Material |
Aluminum |
|
Color Rendering Index(Ra) |
90 |
Support Dimmer |
Yes |
|
Warranty(Year) |
3-Year |
Lighting solutions service |
Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout, Auto Cad Layout, Onsite Metering, Project Installation |
|
Certification |
CE, Emc, LVD |
Light Source |
LED |
|
Place of Origin |
China |
Beam Angle(°) |
120 |
|
Lamp Luminous Flux(lm) |
18000 |
Working Temperature(℃) |
-25 - 70 |
|
Input Voltage |
110/220V |
LM/W |
150LM/W |
|
Working Time (hours) |
30000 |
Working Lifetime(Hour) |
90000 |
Performance Advantages
By using high-end, high-power LED light chips, this product is capable of achieving a luminous effectiveness of up to 130-140 lm/W. It is capable of producing a bright luminous output while distributing light in an equal and gentle manner, successfully removing any localised dark patches on the surface that is being lighted, resulting in a lighting effect that is clear and pleasant over a vast area.
The contact area for heat dissipation is significantly increased by the use of an independent split-type modular heat-dissipation fin structure. The escape of heat by rapid convection ensures that the operating temperature of LED chips and the internal drive system is kept under appropriate control even when the operation is continuous for lengthy hours.
With its heavy-duty changeable rotating mounting bracket, the lamp head irradiation angle may be adjusted in a flexible manner using this bracket. It is possible to flexibly adjust the direction of the illumination in order to meet the varying requirements for installation and lighting that are present at various project locations.

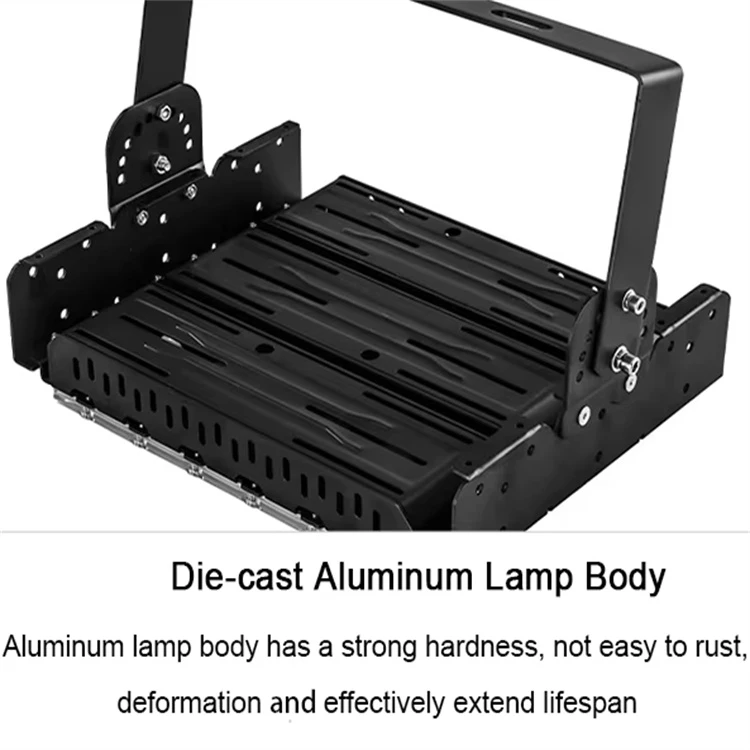

In addition to possessing exceptional structural toughness, die-cast aluminium alloy lamp bodies also possess the capacity to resist corrosion and deformation. Due to its resistance to impact, corrosion, and fading, it can withstand the elements, including wind, rain, and intense sunshine.
The use of a wide operational input voltage range allows for the adaptation of engineering projects to unsteady on-site power supply circumstances. For the purpose of preventing flickering light output, a stable constant-current drive is used to reduce current variation.
Service Life & Luminous Decay(Light Loss)
Rated working lifespan of this LED flood light can reach 50,000+ hours. Under normal working environment and regular operating conditions, it offers many years of dependable service and sharply cuts your frequency & cost for lamp replacement and on‑site maintenance.
Thanks to the optimized modular separated heat dissipation design, thermal stress on LED chips is effectively reduced. Long‑term luminous decay is kept at a very low level: after 50,000 working hours, the lumen retention still remains above 85%. Slow light attenuation prevents obvious brightness drop in later service period, maintaining consistent lighting performance year after year.
The modular design brings extra maintenance convenience: if one single light module fails, you only need to replace the faulty individual module instead of the whole lamp fixture, saving spare‑part budget and on‑site working labor cost significantly.
Protection Grade & Environmental Adaptability
Ingress protection rating: IP66. It achieves complete dust‑tight performance; strong high‑pressure water jet from any direction cannot penetrate inside the lamp housing. The light fixture is fully protected against heavy rainstorm, splashing water and dust accumulation.
The whole luminaire can work reliably within a wide ambient temperature range from ‑35℃ up to +55℃. It is well suited for extreme hot summer and cold winter outdoor scenarios.
Surface anti‑corrosion coating treatment improves salt‑spray resistance. It can be safely deployed in coastal, humid, dusty industrial zones, highway tunnels and open‑air stadium environments without premature rust or housing damage.
