comparison of product parameters
| Application | Factory,Tunnel,Shopping Mall,Warehouse,Shipyard,Exhibition, | Input Voltage(V) | 120-277V |
| Lamp Luminous Efficiency(lm/w) | 150lm/W | IP Rating | IP65 |
| Color Temperature(CCT) | 2700k-6500k | Lifespan (Hours) | 50000 |
| Warranty(Year) | 5-Year | Color Rendering Index(Ra) | >80 |
| Support Dimmer | No | Control Method | Switch Control |
| Light Source | LED | Lamp Body Material | Aluminum |
| Lighting solutions service | Lighting And Circuitry Design, Dialux Evo Layout, Project Installation | Place of Origin | China |
| Lamp Luminous Flux(lm) | 150lm/w | Product Weight(kg) | 3.4 |
| Working Temperature(℃) | -30 - 35 | CRI | >80 |
| Voltage | AC 120-277V | Frequency | 50/60Hz |
| Diffuser Material | PC | Housing | Aluminum |
| Beam Angle | 60°/90°/120° | Ambient Temperature |
-30°℃ - 5°℃ |
Superior Lighting Performance & Luminous Efficiency
Equipped with authentic high-brightness Philips SMD LED chips arranged in multi-ring concentric layout, achieving ultra-high luminous efficiency up to 130-160lm/W.
5x higher brightness & longer service cycle than conventional industrial mining lamps, eliminating dim lighting dead zones in large-space facilities.
Multi-angle prismatic optical diffuser optional: 60° / 90° / 120° beam angles, customizable to fit high ceiling, narrow aisle or wide-area open space lighting needs.
Uniform soft diffused light output, no harsh glare, effectively avoid visual fatigue and zero eye damage for long-time indoor workers.
Wide irradiation coverage, evenly distribute light across ground & shelf surfaces without hot spots or shadow gaps.
Constant current waterproof LED driver built-in, stable voltage tolerance, maintains consistent luminous flux under voltage fluctuation from 85V to 265V AC.
Optional microwave motion sensor module integrated at center, supports intelligent auto on/off & dimming to further reduce idle power waste.
Extended Service Lifespan & Ultra-Low Light Decay Loss
Rated nominal service lifespan reaches 50,000 hours, far exceeding halogen, mercury and metal halide lamps.

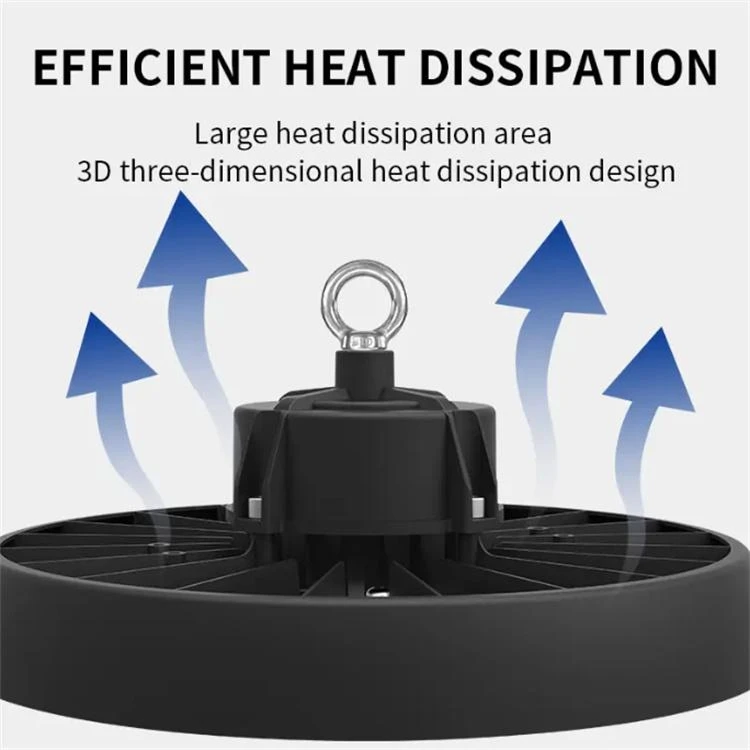

Advanced 3D three-dimensional fin-shaped heat dissipation module, large-area die-cast aluminum lamp body maximizes air contact surface for passive convection cooling.
Rapid heat evacuation reduces junction temperature of LED chips effectively, controlling annual light decay below 3% within the first 5 years of operation.
After 10,000 hours continuous running, luminous retention rate remains above 92%; only less than 18% total light loss after 50,000-hour full lifespan.
No fragile filament or gas discharge components, shock & vibration resistant, avoids frequent replacement and maintenance costs.
Stable thermal environment prevents premature driver burnout and chip aging, drastically cut downtime and labor replacement expenses for factory operators.
Flexible Installation & Durable Structural Accessories
Three universal installation modes for flexible site adaptation: stainless steel chain suspension, extension pole mount, wire cable sling hanging.
Heavy-duty 304 stainless steel lifting eye hook and hanging chain, anti-rust, high load-bearing capacity for long-term overhead mounting.
Lightweight integrated aluminum housing, easy single-person installation without complicated auxiliary brackets.
Compact UFO round streamlined design, saves ceiling space, compatible with standard industrial ceiling truss structures.
