Key attributes
| Lifespan (Hours) | 25000 | Color Temperature(CCT) | 6500k |
| Lamp Luminous Efficiency(lm/w) | 100 | Warranty(Year) | 3-Year |
| Material | Aluminum | IP Rating | IP44 |
| Lighting solutions service | Lighting And Circuitry Design, Project Installation | Light Source | LED |
| Lamp Luminous Flux(lm) | 10000 | Input Voltage(V) | AC175-265V |

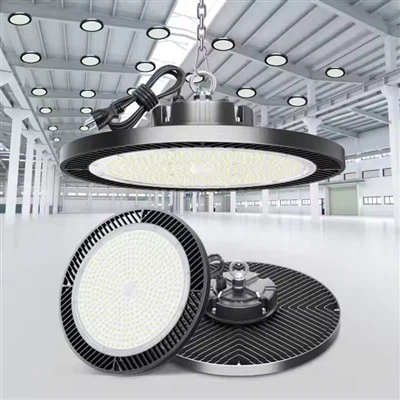

1. Large-Area Illumination with a 90° Wide Beam Angle
This LED high bay light successfully projects brilliant, homogeneous light far and wide thanks to its 90° broad beam angle. It is perfect for high-ceiling settings since it removes dark corners and guarantees complete coverage of vast interior spaces.
2. PC Cover with Shatter Resistance
It provides outstanding durability and impact resistance because to its high-hardness, smash-proof PC material cover. It offers efficient dust, explosion, and mosquito protection with over 98% light transmittance, safeguarding the internal LED chips in challenging conditions.
3. High-Strength Waterproof IP65 Rating
The light is completely shielded from intense rain, splashing water, and dust intrusion thanks to its IP65 waterproof construction. It works dependably in both indoor and semi-outdoor settings, including covered outdoor spaces, garages, and warehouses.
4. Superior Aluminum Die-Cast Housing
The fixture is made of premium die-cast aluminum with exposed stainless steel and an electrostatically polished finish. For industrial application, this offers superior impact strength, corrosion resistance, and long-term structural stability.
5. LED3030 High-Efficiency Light Source
It provides outstanding brightness, excellent luminous effectiveness, and quick heat dissipation thanks to superior imported LED3030 chips. This lowers maintenance and replacement expenses by guaranteeing steady lighting, less light deterioration, and a longer service life.
6. Sophisticated Heat Dissipation Mechanism
Rapid heat dissipation and effective air circulation are made possible by the finned aluminum housing's precise engineering. This keeps the fixture from overheating, safeguards the LED chips, and increases its longevity, guaranteeing steady performance even while running continuously.
Usage & Installation Guide
1. Pre-Installation Safety Check
Critical: Always turn off the main power supply before installation to avoid electric shock.
Confirm the installation location has a stable, load-bearing structure to support the light.
Inspect the fixture for damage before use, ensuring all components and seals are intact.
2. Installation Steps
Use the top hanging ring to suspend the light from a ceiling hook, chain, or mounting bracket, ensuring it is securely fastened.
Connect the power cord to the fixture's terminal block, following local electrical safety standards (ensure proper grounding).
Adjust the hanging height and angle to optimize the 90° beam coverage for the target area.
Seal all cable entry points to maintain the IP65 waterproof rating.
3. Operation & Maintenance
Operation: Turn on the power; the light provides instant, flicker-free illumination with no warm-up time.
Maintenance:
Clean the PC cover regularly with a soft, dry cloth to remove dust and maintain light transmittance.
Inspect the hanging hardware, wiring, and seals periodically to ensure safety and waterproof performance.
Keep the heat sink fins free of dust to preserve efficient cooling.
4. Ideal Application Scenarios
This LED high bay light is perfect for high-ceiling commercial and industrial spaces, including:
Warehouses, factories, and production workshops
Supermarkets, retail stores, and exhibition halls
Gymnasiums, stadiums, and indoor sports facilities
Garages, parking garages, and logistics centers
Covered outdoor areas and semi-outdoor work zones
