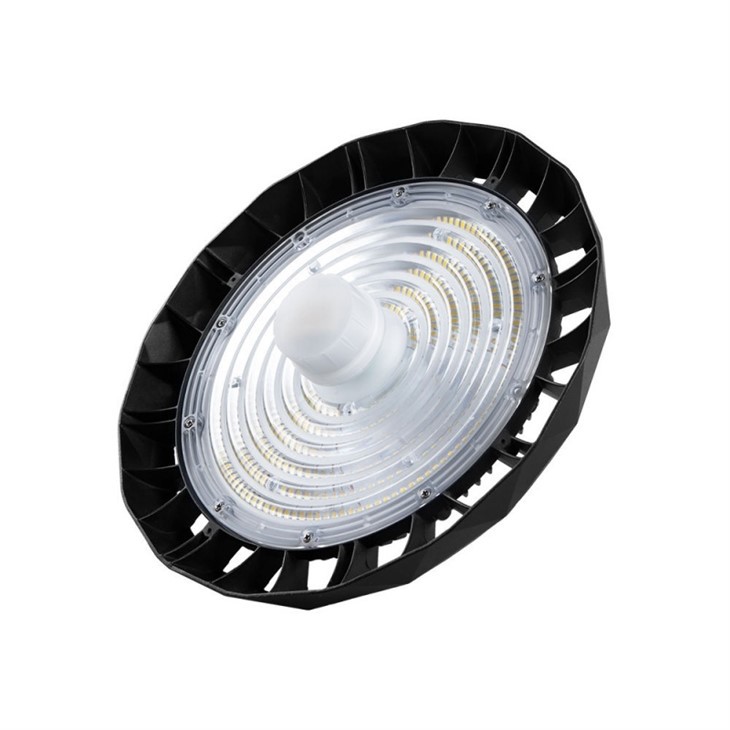

IP65 UFO LED High Bay Light

IP65 UFO LED High Bay Light
Details:

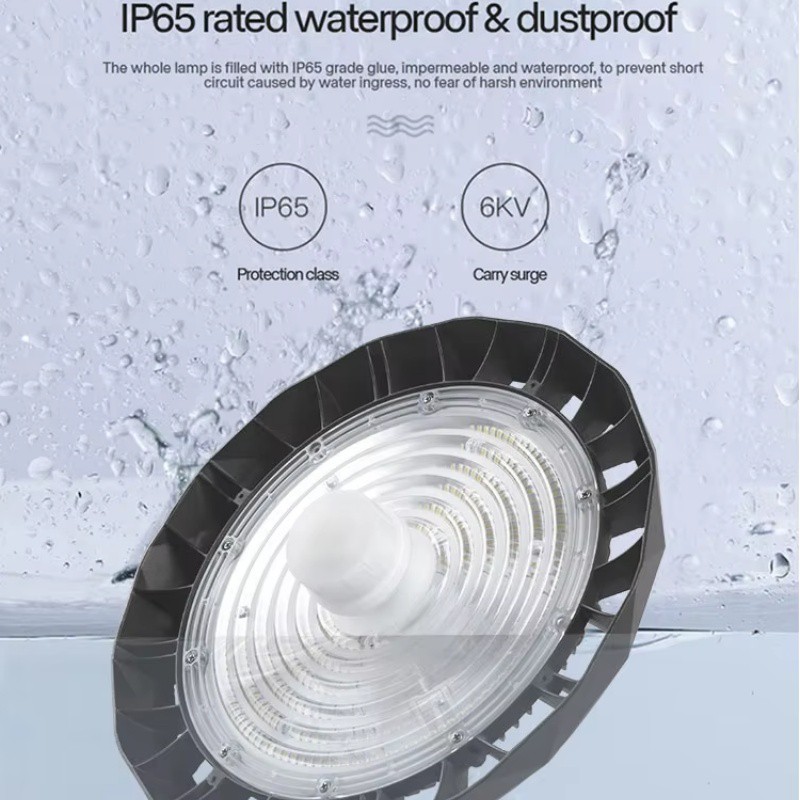

1. The entire fixture utilizes an IP65-rated sealed potting process, effectively preventing the ingress of dust, moisture, and water vapor to guard against short circuits caused by humid, dusty, or high-temperature-variation environments. Additionally, it features 6KV lightning and surge protection, ensuring resilience against harsh operating conditions and enabling long-term, stable performance.
2. The fixture body is equipped with built-in DIP switches, allowing for the flexible adjustment of power output and color temperature. This enables adaptable configuration based on ceiling height, operational requirements, and desired spatial ambiance—balancing energy efficiency with brightness to meet the specific lighting standards of different time periods and distinct zones.

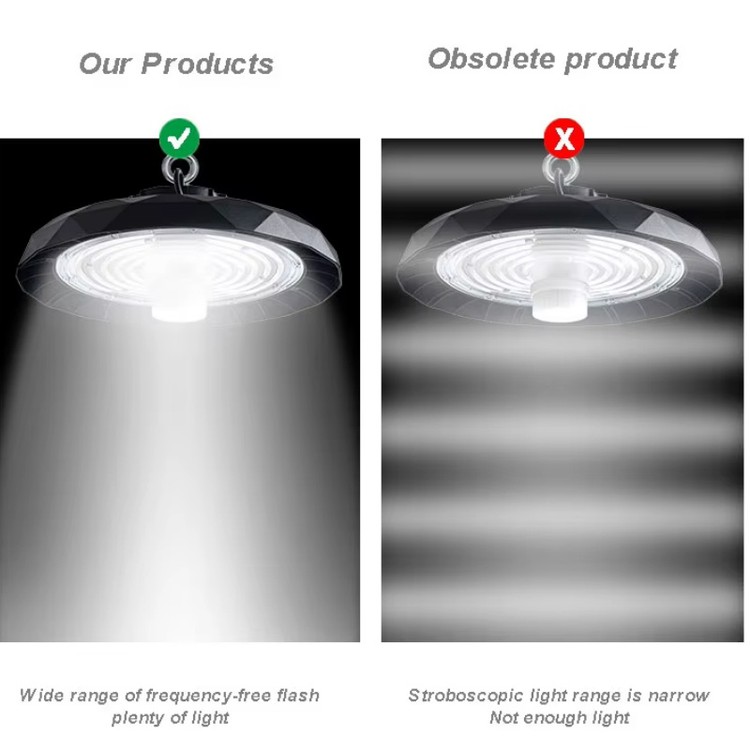

3. Featuring a flicker-free optical design, the fixture delivers a wide illumination coverage and uniform light distribution, free from any distinct dark or bright spots. Compared to traditional lighting fixtures prone to flickering, this unit provides stable, soft illumination that minimizes eye strain during prolonged work periods, thereby enhancing worker comfort and concentration.
Send Inquiry
Description
Send Inquiry





Features







IP65 UFO for LED High Bay Lighting

1. Features a UFO-style, diamond-faceted aluminum heat sink housing with a three-dimensional hollowed-out design. This structure offers a large heat dissipation surface area and high thermal conductivity, allowing for the rapid expulsion of heat from the lamp body to minimize light decay. It effectively extends the lifespan of the LED chips, thereby reducing the costs associated with frequent fixture replacements.

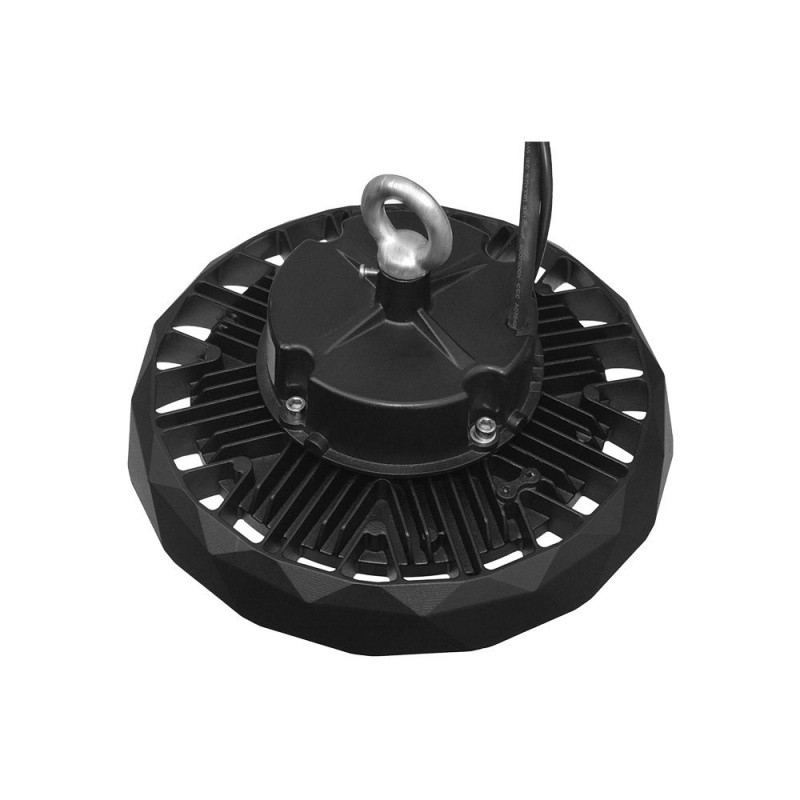

2. Equipped with a built-in metal hanging ring at the top, allowing for direct suspension from factory steel beams, trusses, or ceiling structures. Installation is simple and rapid-the fixture lights up immediately upon connection to the mains power supply. It can be utilized as a standalone unit or deployed in a mass layout, making it ideally suited for high-bay suspension scenarios.

3. Fitted with high-brightness LED chips that deliver high luminous efficacy and low power consumption. Compared to traditional metal halide lamps and older-style industrial high-bay fixtures, it offers significant energy-saving benefits. With ample brightness and a wide illumination coverage area, it effectively meets the uniform lighting requirements of large-scale industrial facilities.

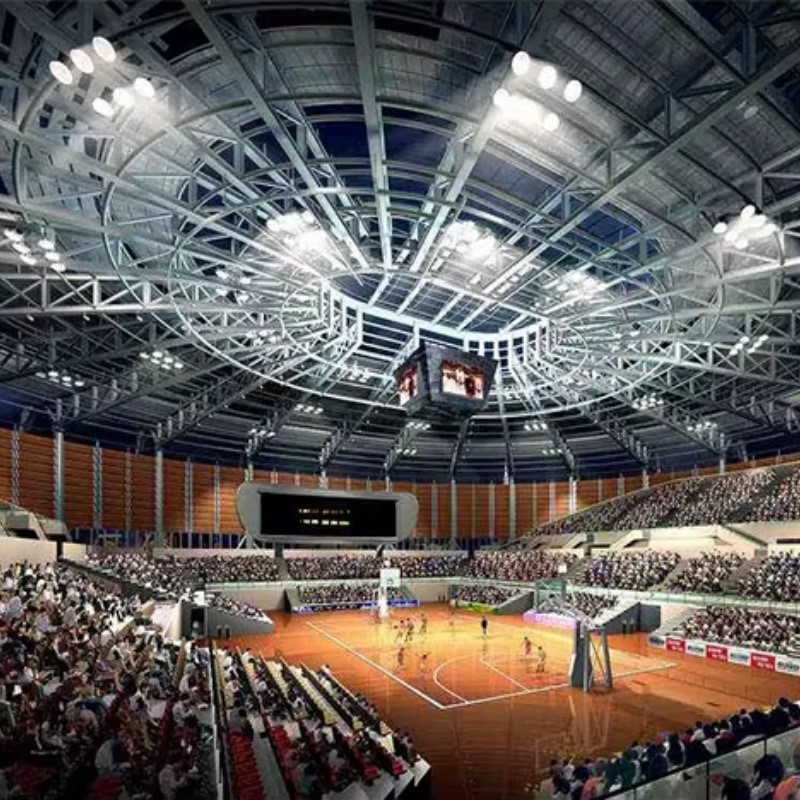

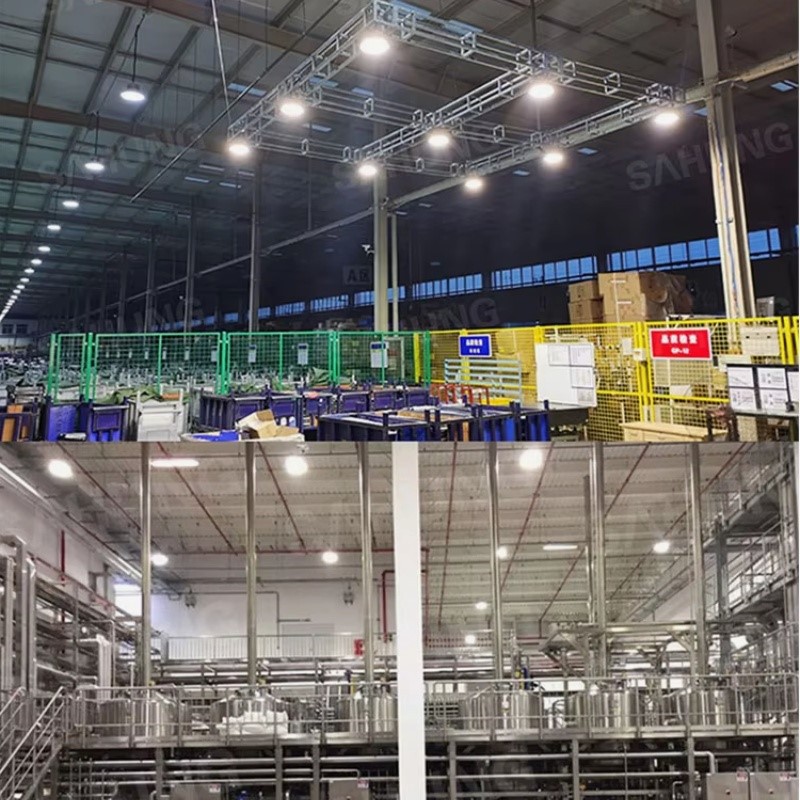

4. Primarily utilized in venues with high ceiling heights-such as large factories, warehouses, logistics parks, gymnasiums, large-scale supermarkets, workshops, indoor sports arenas, and high-speed railway stations. It serves as a core lighting fixture for large-area industrial and commercial illumination in high-ceiling environments.









Product Parameters
Products name IP65 UFO LED High Bay Light

Input Voltage(V)

AC 85-265V

Color Rendering Index(Ra) 90 Color Temperature(CCT) 3000K-4000K-6000K
Lamp Luminous Efficiency(lm/w) 150-160lm/w Working Temperature(℃) -40 - 60
Lifespan (Hours) 50000hours IP Rating

IP68

Lamp Luminous Flux(lm) 1500 Warranty(Years) 5

PF

>0.90 LED Source LED
Application Warehouse Size Φ250*H143/Φ320*H147
Beam angle 90° Certificated TUV,CE, ROHS
Power 100W/150W/200W/240W Material aluminum+PC
Shape UFO Round LED Chip SMD2835

More detail



UFO for LED High Bay Light

This UFO-style high-bay light is a high-power fixture specifically engineered for industrial and commercial lighting in high-ceilinged spaces. Boasting core advantages-including robust IP65 protection, adjustable power output and color temperature, highly efficient "diamond-structure" heat dissipation, flicker-free eye protection, and easy suspension installation-it is perfectly suited for large-scale environments such as factory workshops, warehouses, and gymnasiums. The fixture strikes an optimal balance between brightness, energy efficiency, and durability; featuring stable thermal management and a high protection rating, it is capable of withstanding complex operating conditions characterized by dust, humidity, and significant temperature fluctuations. Its flexible power and color temperature adjustments allow for precise alignment with the specific lighting standards required for different work zones and operational timeframes, while ensuring convenient installation and simple long-term maintenance. Whether utilized for general area lighting in factory workshops or for commercial illumination in gymnasiums and large retail centers, it delivers uniform, stable, and comfortable lighting effects, making it the premier choice for high-ceiling engineering projects and industrial facility renovation initiatives.
