Key attributes
| Input Voltage(V) | AC100-265V | Color Temperature(CCT) | 6000K (Daylight Alert) |
| Lamp Luminous Efficiency(lm/w) | 110 | Warranty(Year) | 3-Year |
| Material | Aluminum | Lamp Luminous Flux(lm) | 100-100lm/W |
| Lighting solutions service |
Lighting And Circuitry Design, Onsite Metering, Litepro Dlx Layout, Auto Cad Layout, Dialux Evo Layout, Agi32 Layout, Project Installation |
Light Source | LED |
| Color Rendering Index(Ra) | 70 | Lifespan (Hours) | 50000 |

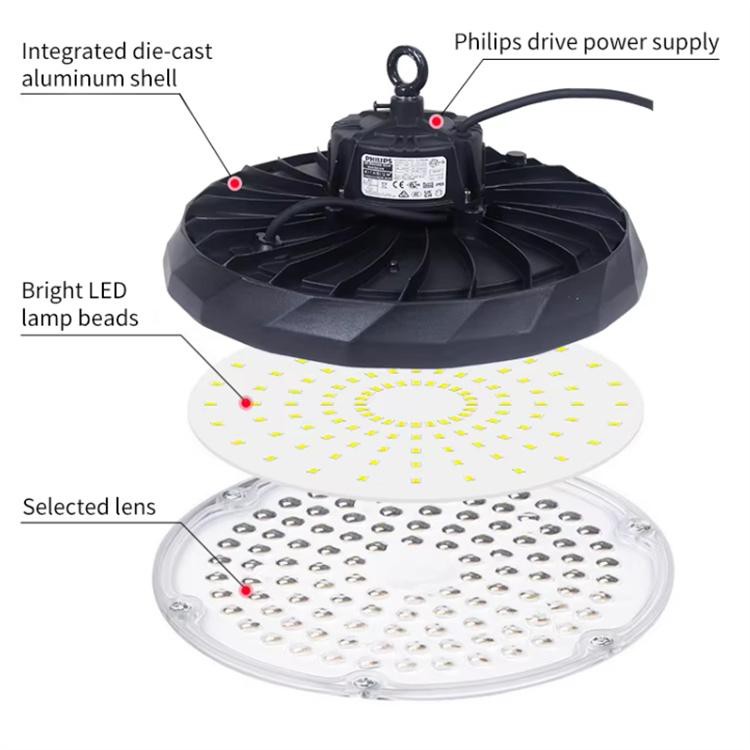

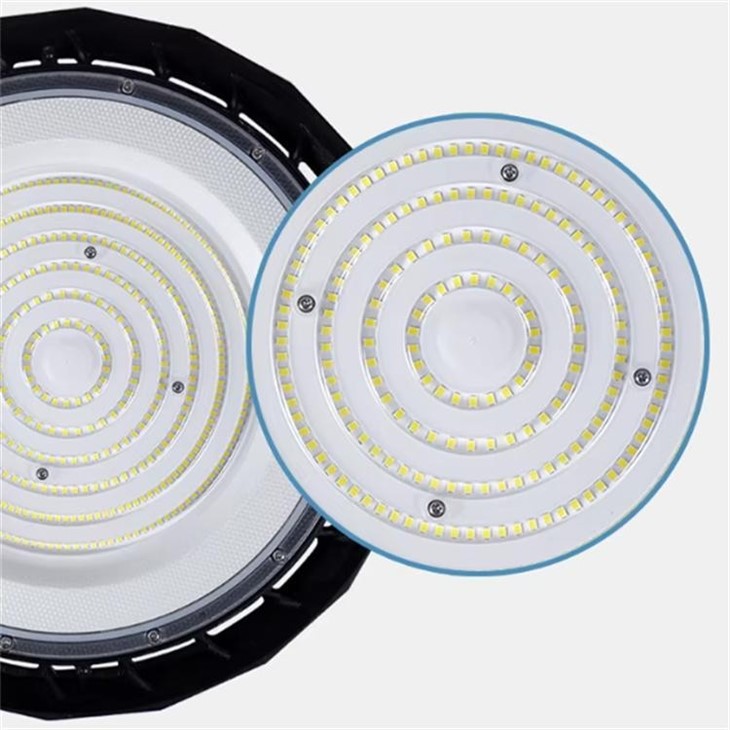

1. Superior LED Bead Performance
Equipped with high-quality LED lamp beads, the light features pure chip color, a high color rendering index (CRI), and excellent color restoration. It ensures minimal light decay over long-term use, delivering stable, high-brightness illumination with a large lighting area, perfect for large-space lighting needs.

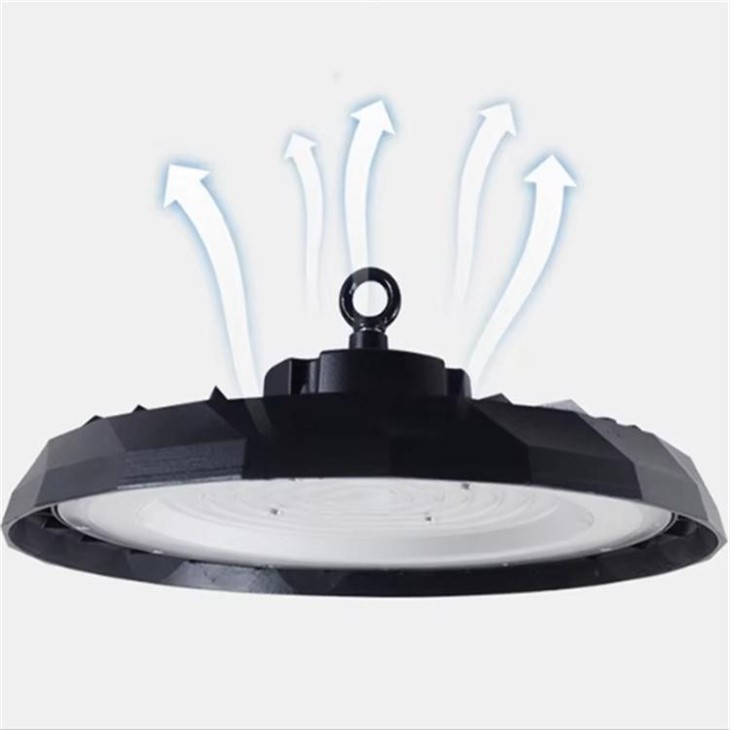

2. Efficient Heat Dissipation with Integrated Aluminum Body
Featuring an integrated die-cast aluminum shell with one-piece molding, the lamp body maximizes heat dissipation efficiency. Its structural design promotes strong air convection, rapidly expelling heat generated by the LED chips during operation. This effectively prevents overheating, extends the light's service life, and maintains consistent performance.
3. Reliable Philips Drive Power Supply
Built with a premium Philips drive power supply, the light ensures stable current output, low energy consumption, and strong anti-interference capability. It guarantees safe, reliable operation even under continuous usage, while effectively protecting the LED beads from voltage fluctuations.
4. High-Clarity PC Lampshade
The selected PC lampshade provides exceptional light uniformity, effectively reducing light leakage and ensuring focused, non-diffused light distribution. It softens the light output to eliminate harsh glare, creating a comfortable illumination environment while maintaining high light transmittance.
5. Durable Waterproof Design
Constructed with a sealed structure and waterproof materials, the high bay light is resistant to water ingress, dust, and humidity. It can withstand challenging environmental conditions, making it suitable for both indoor industrial settings and outdoor applications exposed to moisture.
Installation & Usage Instructions
1. Pre-Installation Preparation
Power Check: Confirm the product's rated voltage (typically AC 85–265V) matches the local power supply to avoid damage.
Location Selection: Choose a stable, elevated mounting position (e.g., ceilings of warehouses, factories, gymnasiums, or high-bay areas) with sufficient space for heat dissipation.
Safety First: Cut off the power supply before installation to prevent electric shock. Prepare necessary tools: a ladder, screwdrivers, expansion screws, and a power connector.
2. Mounting the Light

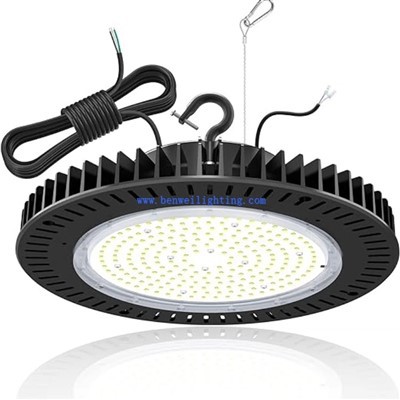

Hanging Installation: Use the integrated hanging ring to secure the light to the ceiling's suspension bracket or hook via the included mounting accessories. Ensure the fixture is firmly fixed to avoid shaking or falling.
Adjustment: Confirm the light is vertically aligned and stable; adjust the angle if needed to direct the light toward the working area.
3. Electrical Connection
Wiring: Connect the light's power cord to the main power supply using a waterproof connector (if applicable). For series connection of multiple lights, use matching connectors to ensure a tight, secure connection.
Inspection: Double-check all wire connections to ensure no loose contacts or short circuits before powering on.
4. Post-Installation Testing & Maintenance
Power On: Restore the power supply and test the light to verify it turns on normally, with stable brightness and no flickering.
Regular Maintenance: Periodically clean the PC lampshade and aluminum shell to remove dust, ensuring optimal light output and heat dissipation. Inspect the power supply and connectors regularly for any signs of damage to ensure long-term reliability.
