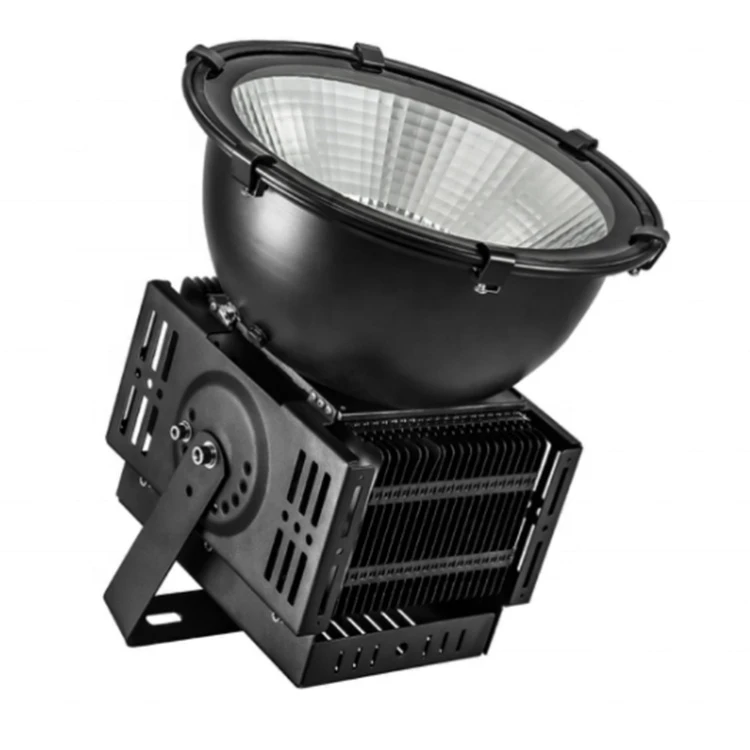

LED High Bay Stadium Light

LED High Bay Stadium Light
Details:
1. The lamp's base has a multi-channel hollowed-out heat conduction air duct and a large-area, densely packed aluminium alloy heat dissipation fin construction that provide a high air convection efficiency and a wide heat dissipation contact surface.
2. It uses an aluminium reflector with a honeycomb texture, deep bowl form, and huge diameter. Long-range, powerful light projection is possible thanks to the internal grid optical structure's ability to precisely focus light. A long lighting distance and adequate ground illumination are provided by the beam's concentration and lack of divergence.
3. The entire unit is completely sealed, offering superior waterproof, dustproof, and fogproof qualities, and the light body wiring employs a waterproof aviation plug connection.
4. The base has a thickened and reinforced metal mounting bracket that supports multi-angle free illumination angle adjustment, enabling flexible lighting direction adjustment in accordance with site requirements.
Send Inquiry
Description
Send Inquiry





Features







LED HighBay Light

1. Makes use of a high-density integrated high-quality LED array that provides sufficient light intensity and outstanding luminous efficiency for ultra-long-distance, wide-area coverage lighting.

2. The integrated industrial-grade constant current driver power supply has several circuit protections against overcurrent, overvoltage, and overheating, supports a broad voltage range input, and can tolerate grid voltage changes.

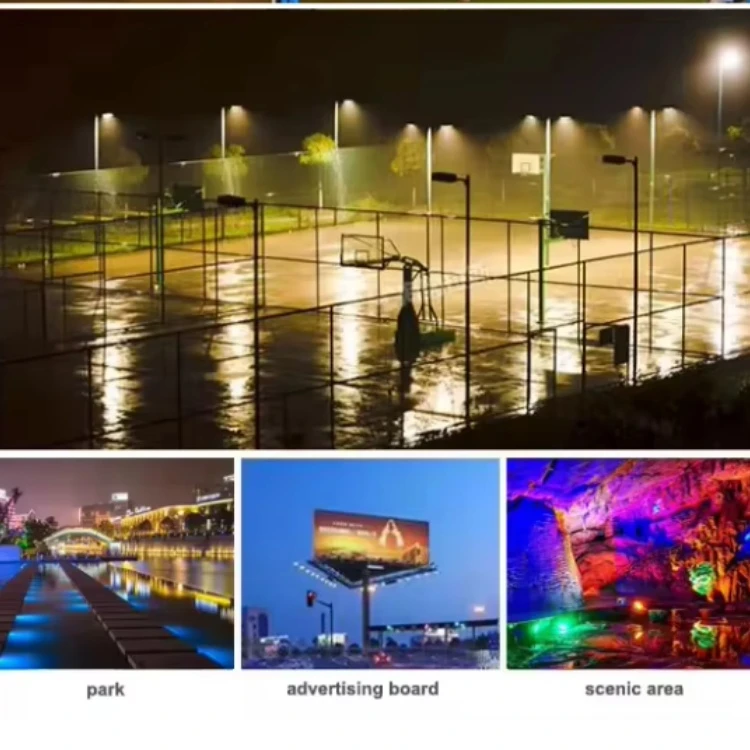

3. It is extensively adaptable to a variety of outdoor engineering scenarios, including park plazas, outdoor sports fields, huge billboard lighting, scenic area night illumination, and long-distance river lighting, in addition to tower crane high-altitude construction lighting.

4. Tower crane lifting, wall mounting, and column erecting are supported by multiple sets of pre-drilled mounting holes, providing versatile installation options appropriate for a range of technical construction scenarios.











Product Parameters
Products name LED High Bay Stadium Light Input Voltage(V) AC 100-277V
Tube Materials Aluminum Color Temperature(CCT) RGB/2700K-6500K
Color Rendering Index(Ra) >80 Working Temperature(℃) -20-60
Lifespan (Hours) 50000 Power 50W/100W/200W/500W
Beam Angle 100 Warranty(Years) 3
IP Rating IP65 Lamp Luminous Efficiency(lm/w) 115
Certification RoHS, CE Application LANDSCAPE, Garden Theme Park Roadway
Beam Angle(°) 100 Finish color Black Finish
Lamp Luminous Flux(lm) 50000 Lighting solutions service Lighting And Circuitry Design, Auto Cad Layout
Light Source LED Support Dimmer No



More detail



High Bay Stadium Light

With its deep optical focusing structure, sturdy heat dissipation body, all-dimensional exterior protection, adaptable installation structure, and steady, high-performance driver, this high-power LED high-altitude floodlight boasts an industrial-grade precise design. It fully addresses the challenges of outdoor lighting in high-altitude, long-distance, and large-scale scenarios by striking a compromise between ultra-long projection distance, high-brightness energy-saving lighting, and durability in harsh conditions. In construction tower crane projects and outdoor large-scale site illumination projects, it is the recommended high-performance upgrade and replacement alternative for conventional high-energy-consuming lighting fixtures.
