comparison of product parameters
| Application | Warehouse | Input Voltage(V) | AC 85-265V |
| Lamp Luminous Efficiency(lm/w) | 130 | IP Rating | IP65 |
| Color Temperature(CCT) | 3500K (Warm White) | Lifespan (Hours) | 50000 |
| Warranty(Year) | 3-Year | Color Rendering Index(Ra) | 80 |
| Support Dimmer | Yes | Control Method | Remote Control |
| Light Source | LED | Lamp Body Material | Aluminum |
| Lighting solutions service | Lighting And Circuitry Design, Litepro Dlx Layout, Dialux Evo Layout, Agi32 Layout, Project Installation | Place of Origin | Guangdong, China |
| Lamp Luminous Flux(lm) | 26000 | Product Weight(kg) | 1.5 |
| Working Temperature(℃) | -10 - 65 | CCT | 3000K/4000K/5000K/6000K Optional |
| LED Chip | SMD2835 | Beam angle | 90 Degree |
| CRI (Ra>) | 90 | Working Lifetime(Hour) | 50000 |
Light Source & Luminous Performance

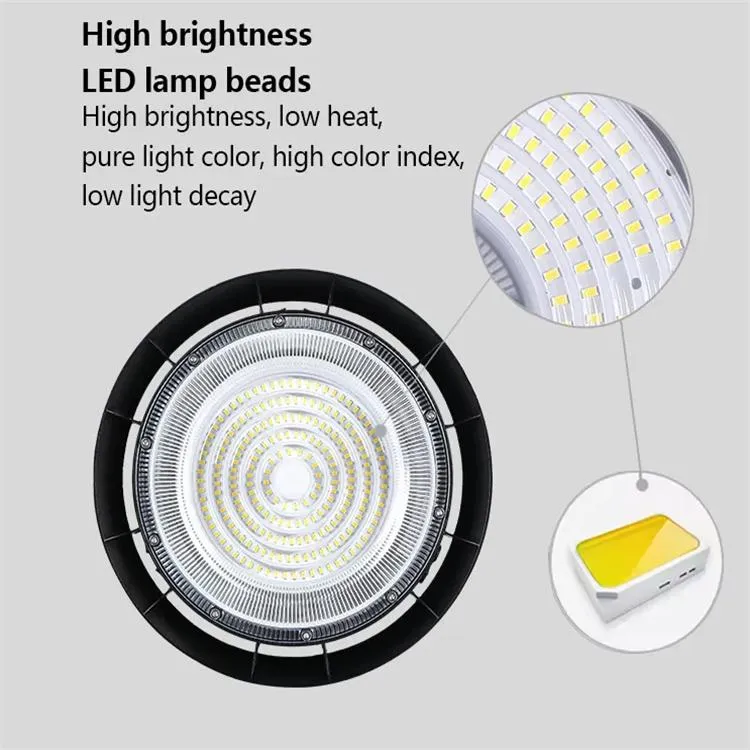

Premium SMD high-power LED chips are used as the main light source in this industrial UFO high bay luminaire. They are grouped in a multi-layer concentric annular array configuration within the high-transmittance prismatic PC lens.
For workshop production inspection, warehouse inventory sorting, and retail supermarket high-ceiling illumination, the customised high-CRI LED beads deliver Ra80 high colour rendering index, presenting authentic object colour; pure neutral/cool white spectrum with no stroboscopic flicker, eliminating eye fatigue for long-hour on-site staff.
With less than 3% lumen depreciation after 5000 hours of continuous operation and long-term consistent light output without frequent bulb replacement, optimised chip packing technique achieves ultra-low luminous decay.
The lamp's focused beam angle design, efficient reduction of light overflow and wasted dispersed light, and increased overall space utilisation of luminous flux are all made possible by its precision textured prismatic optical lens.
Ultra-high initial luminous efficacy up to 130~155LM/W, significantly outperforming the luminous performance of conventional HID/mercury high bay lamps and producing brighter floor illumination with far less wattage input.
Power Supply & Energy Consumption Advantage
Power Supply Configuration
With an integrated isolated constant-current IP65 certified LED driver that supports a broad range of input voltages (AC85~265V), it is fully compliant with popular industrial grid standards in the US, EU, Southeast Asia, and Australia. Integrated overvoltage, overcurrent, short-circuit, and lightning surge protection circuit; anti-surge grade up to 2KV; capable of withstanding instantaneous voltage fluctuations in the factory grid and surge damage caused by thunderstorms; external power cord with rubber waterproof connector; fully sealed wiring structure that satisfies IP65 whole-lamp waterproof rating.
Energy Saving & Low Power Consumption Core Benefit
In contrast to traditional metal halide and high-pressure mercury high bay lamps:
Up to 65%–75% energy cost savings on lighting expenses: Our 150W LED UFO high bay can completely replace a 400W conventional HID high bay, providing factory and warehouse owners with much lower bulk monthly industrial power costs while maintaining or exceeding real illumination brightness.

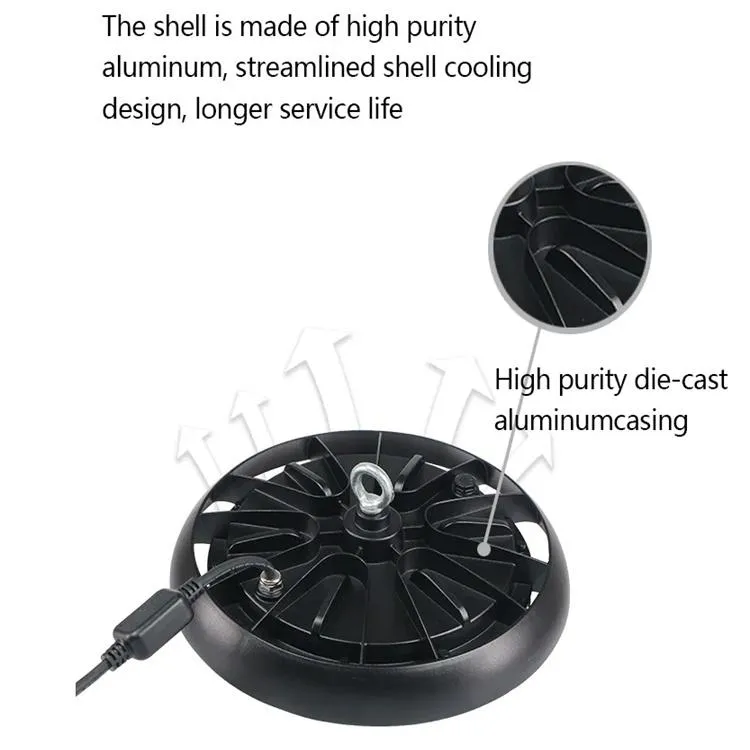

Low self-heating design made possible by the die-cast aluminium heat sink: a streamlined fanless heat dissipation shell structure quickly exports heat produced by LED chips, lowers the operating temperature of the lamp to minimise further power loss from high-temperature ageing, and further maximises whole-lamp power efficiency.
Unlike gas-discharge industrial lights, there is no idle power loss during the warm-up time and no preheating starter. The adjustable on-off control aligns with the shift production schedule to save needless standby power consumption.
