comparison of product parameters
|

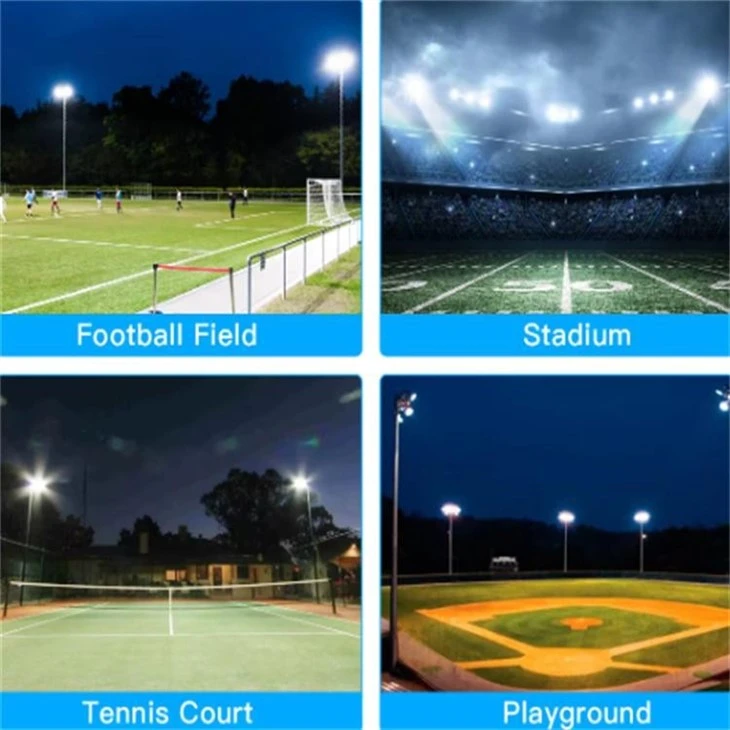

Application |
football field/stadium/tennis court/playground |
Light Source |
LED |
|
Input Voltage(V) |
100-480V |
IP Rating |
Ip67 |
|
Lamp Luminous Efficiency(lm/w) |
150 |
Lifespan (Hours) |
50000 |
|
Color Temperature(CCT) |
5000k |
Color Rendering Index(Ra) |
80 |
|
Lamp Body Material |
aluminum+glass |
Warranty(Year) |
5-Year |
|
Support Dimmer |
No |
Lighting solutions service |
Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout, Auto Cad Layout, Onsite Metering, Project Installation |
|
Working Temperature(℃) |
-40-45 |
Place of Origin |
Guangdong, China |
|
Beam Angle(°) |
15/30/60/90 |
Lamp Luminous Flux(lm) |
84000 |
|
Product name |
Outdoor Stadium Light |
MATERIAL |
glass + Aluminium Alloy |
|
beam angle |
120 |
Usage |
high mast or pole mount |
|
IP Grade |
IP67 |
Power |
600/800w |
|
Applicaiton |
Play ground/stadium/sport use/billboard |
Type |
High mast/pole mount |
Core Performance

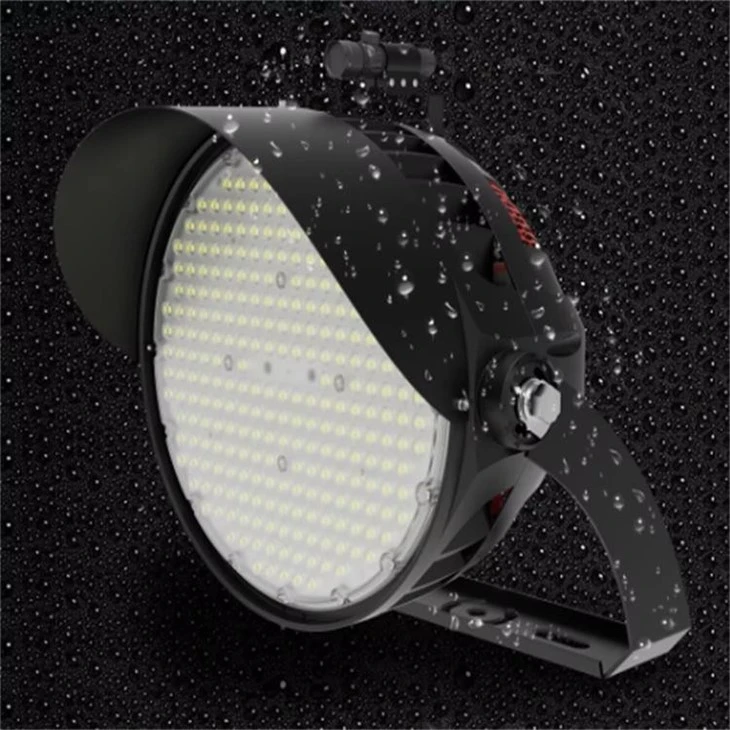

High‑Efficient Luminous Performance Equipped with high‑performance LED chips, delivers high luminous efficacy up to 140Lm/W. Provides powerful even light output, effectively eliminates uneven dark zones on sports ground. Multiple optional beam angles from 15°‑60°, match different projection distance & venue scale. Built‑in laser pointer helps precise aiming during installation, greatly improves lighting alignment accuracy for large venues.

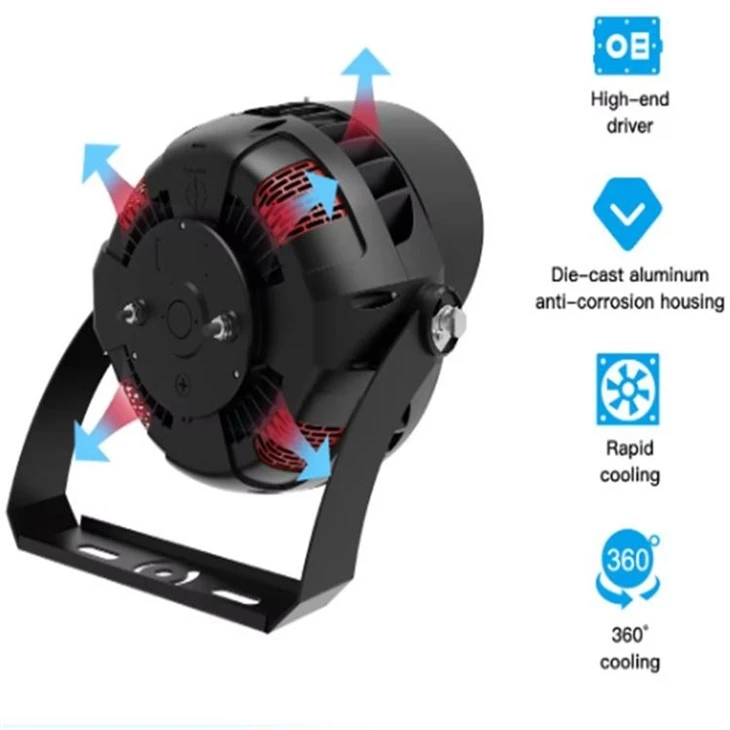

Superior Heat Dissipation System & Low Light Decay Whole lamp housing made of heavy‑duty die‑cast anti‑corrosion aluminum. Adopts breathable metal‑mesh structure and 360° omnidirectional rapid air convection cooling design. Accelerates heat outflow from LED chips and power driver. Excellent thermal control suppresses light attenuation effectively. Slow lumen depreciation maintains stable brightness for years of long‑time continuous working.
Lifespan & Loss
Service Life & Long‑Term Loss Performance Rated long operating lifespan, supported by 5‑year manufacturer warranty. Compared with traditional HID/metal halide lamps, drastically reduces light loss, burn‑out risks and frequent replacement costs. No frequent bulb maintenance needed for sports‑venue long‑hour nightly operation. Achieves about 70% energy saving, slashes your long‑term electricity expenditure.

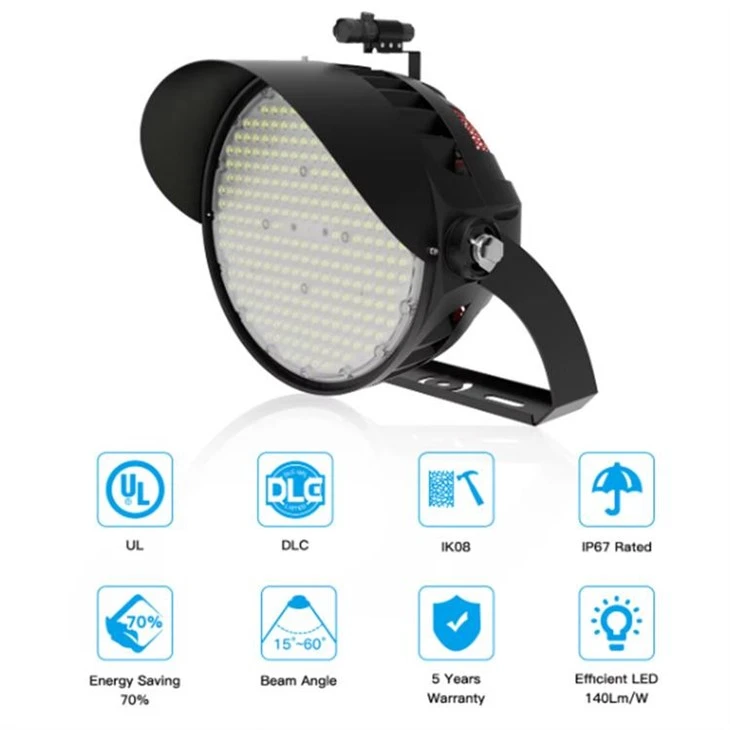

Protection Specifications
High‑Grade Protection & Mechanical Resistance
Ingress Protection: IP67 rated, fully resists heavy rain, water splashing, dust and moisture. Works stably in all‑weather outdoor environments.
Mechanical Impact Resistance: IK08 impact‑proof rating, withstands external physical strike, adapts rough outdoor site conditions.
Comes with glare shield accessory to suppress dazzling glare, optimize athlete viewing experience during night matches.
Certified by UL & DLC, meets North‑American commercial electrical standards, qualified for incentive rebate programs.
