product Specification
| Input Voltage(V) | AC 100-277V | Material | Stainless Steel |
| Lamp Luminous Efficiency(lm/w) | 115 | Lifespan (Hours) | 50000 |
| Color Temperature(CCT) | 6000K (Daylight Alert) | Color Rendering Index(Ra) | 80 |
| Lighting solutions service | Lighting And Circuitry Design, Litepro Dlx Layout, Project Installation | Color | grey/black |
| Warranty(Year) | 3-Year | Power | 100W-1000W |
| Lamp Luminous Flux(lm) | 25000 | CRI (Ra>) | 80 |
| Product Weight(kg) | 4.3 | Beam angle | 60 degree |
Product Features
1. Unmatched Brightness & Efficiency

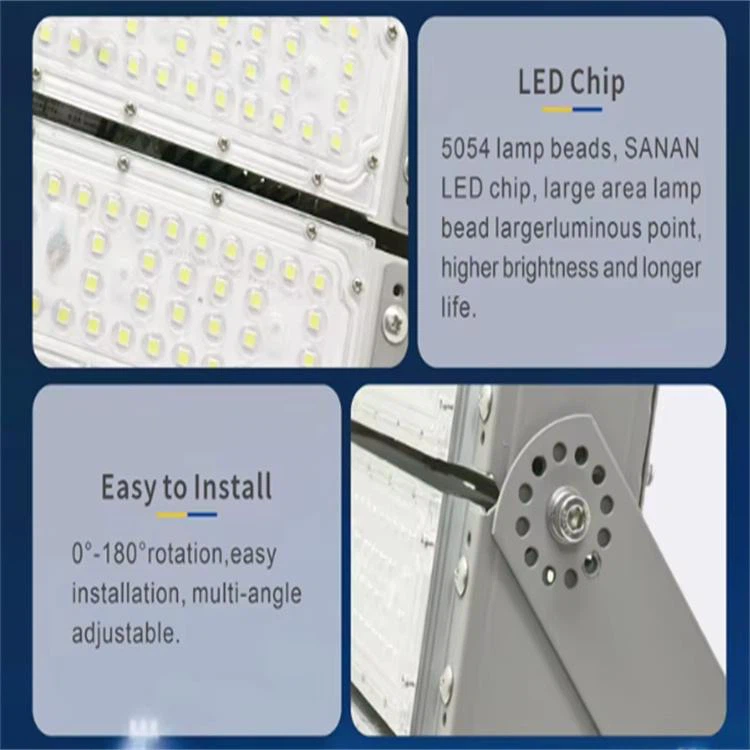

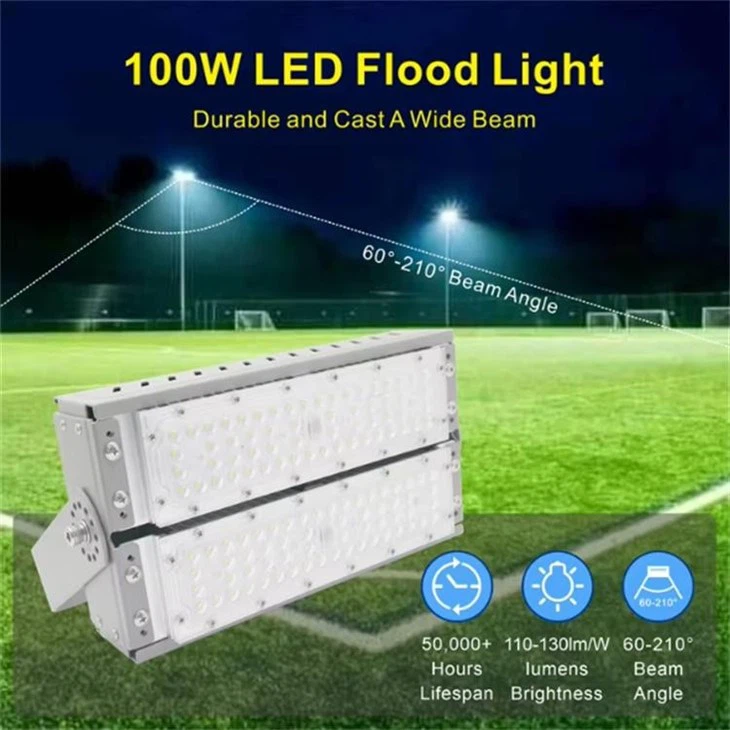

Powered by premium SANAN SMD5054 LED chips, this flood light delivers exceptional brightness (110-130lm/W) with a wide 60°–210° beam angle, ensuring every corner of your space is bathed in clear, even light. The large-area lamp bead design maximizes luminous points, eliminating dark spots and shadows, while cutting energy costs by up to 70% compared to traditional HID lights. With a 50,000+ hour lifespan, it delivers years of reliable performance without frequent replacements.
2. Rugged, All-Weather Durability
Built to thrive in harsh environments:

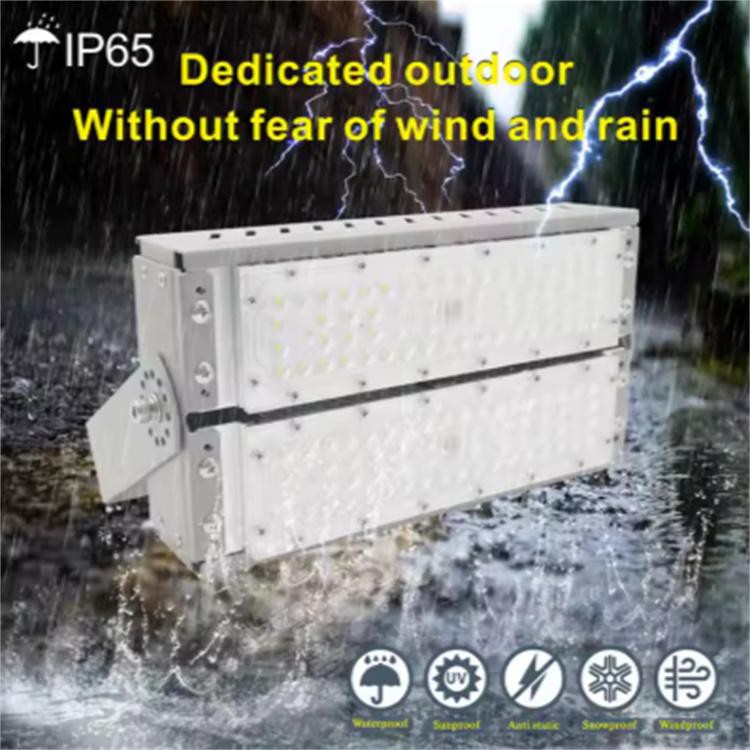

IP65 Waterproof Rating: Withstands rain, snow, dust, and splashes, making it perfect for year-round outdoor use.

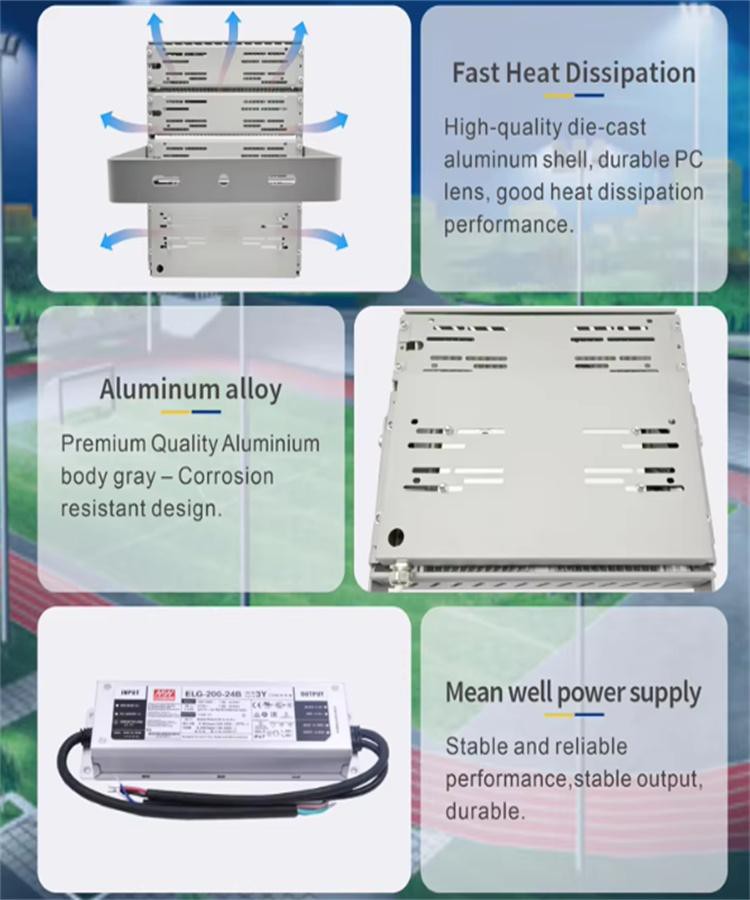

Die-Cast Aluminum Housing: The corrosion-resistant aluminum alloy body ensures long-lasting durability, while the high-efficiency heat sink design dissipates heat quickly, preventing overheating and extending the light's lifespan.
Impact-Resistant PC Lens: The tough, shatterproof lens protects against accidental knocks and debris, maintaining clear light output even in high-traffic areas.
Product Features
3. Flexible & Easy to Install
Designed for hassle-free setup and precise lighting control:
Adjustable Bracket: The 0°–180° rotatable mounting bracket lets you direct light exactly where you need it, whether illuminating a wide field or focusing on a specific work zone.
Stable Mean Well Driver: Equipped with a high-quality power supply for consistent, flicker-free performance and built-in surge protection, ensuring reliable operation even in unstable electrical conditions.
🛠️ Installation & Usage Guide
Step 1: Choose the Right Mounting Location
Pick a sturdy surface (wall, pole, or bracket) that can support the light's weight and withstand outdoor conditions. For maximum coverage, mount the light high enough to cast a wide beam-ideal for sports fields, parking lots, or building facades.
Step 2: Secure the Mounting Bracket
Attach the included bracket to your chosen surface using heavy-duty screws. Ensure the bracket is firmly secured to prevent movement, especially in windy conditions. The adjustable design lets you set the angle before tightening the bolts.
Step 3: Wire the Light
Connect the flood light's power cable to a compatible power source (100-277V AC). Use waterproof connectors to protect the wiring from moisture, following local electrical codes. For outdoor installations, ensure all connections are fully sealed to maintain the IP65 rating.
Step 4: Adjust & Test the Light
Loosen the bracket's adjustment knob to set the light's angle, then tighten it securely. Turn on the power-your flood light will light up instantly with no warm-up time, delivering bright, uniform illumination. Adjust the angle as needed to eliminate glare or focus light on specific areas.
Pro Tips for Longevity
Keep the Lens Clean: Wipe the PC lens with a soft, dry cloth periodically to remove dust and maintain maximum brightness.
Ensure Proper Ventilation: The aluminum heat sink needs airflow to work effectively-avoid installing the light in enclosed spaces or against heat-trapping surfaces.
Check Connections Regularly: Inspect the wiring and bracket for wear or corrosion, especially in coastal or humid environments, to prevent damage.
Port & Shipping Yards: Illuminate docks and storage areas to support 24/7 operations, improving efficiency and security.
