comparison of product parameters
|
Input Voltage(V) |
AC 220-240V |
IP Rating |
IP20 |
|
Lamp Luminous Efficiency(lm/w) |
100lm/w |
Lifespan (Hours) |
50000 |
|
Color Temperature(CCT) |
2700-6500K |
Color Rendering Index(Ra) |
80 |
|
Support Dimmer |
No |
Warranty(Year) |
5-Year |
|
Lamp Body Material |
Aluminum Frame+PMMA LGP |
Application |
School,hospital,study,kitchen,bedroom,bathroom, |
|
Design Style |
Modern |
Lighting solutions service |
Dialux Evo Layout |
|
Light Source |
LED |
Place of Origin |
China |
|
Lamp Luminous Flux(lm) |
3600-5500 |
Working Temperature(℃) |
-20 - 35 |
|
Beam angle |
120° |
Power Factor |
>0.95 |
|
LED Driver |
Constant Current LED Drive |
UGR |
<19 or <22 |
|
LED Chip |
SMD4014 |
Installation Method |
Recessed Surface Mounting Suspension |
| Power |
30/36/40/60W |
Keyword |
Edge-lit Panel Light |

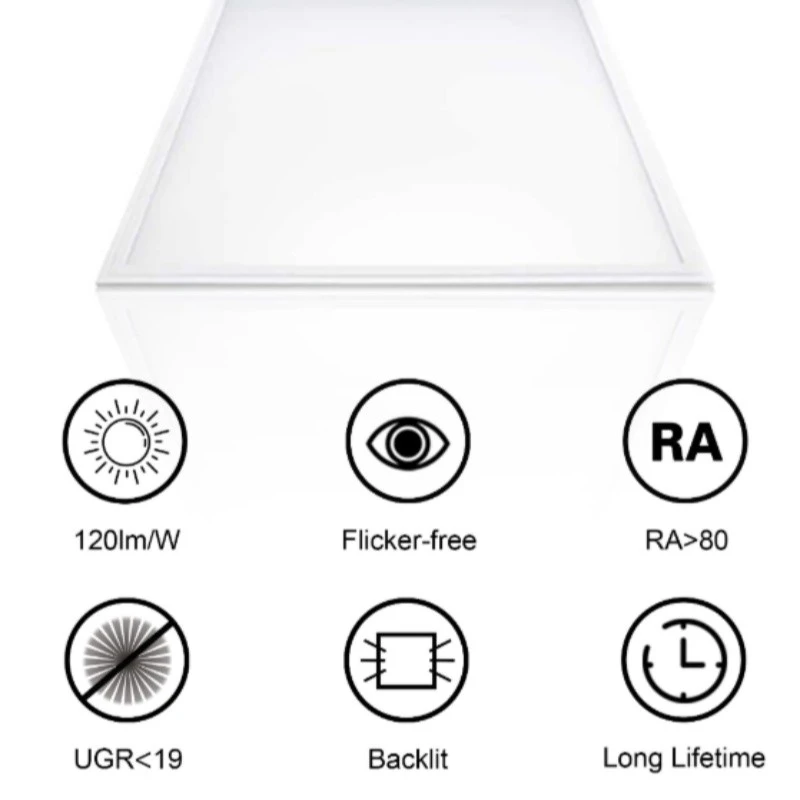

Unmatched Performance & Optical Excellence
High Luminous Efficacy: Boasts an impressive 120lm/W, delivering brilliant brightness while significantly reducing your energy consumption and electricity bills.
Superior Color Rendering (Ra>80): Restores the true, vibrant colors of your space. As shown in our comparative visuals, high Ra brings fruits and products to life, making your merchandise look irresistible.
Glare-Free & Flicker-Free Comfort: With a UGR<19 rating, it eliminates annoying glare and eye strain. The flicker-free technology ensures a stable, comfortable light environment, ideal for prolonged work or shopping.

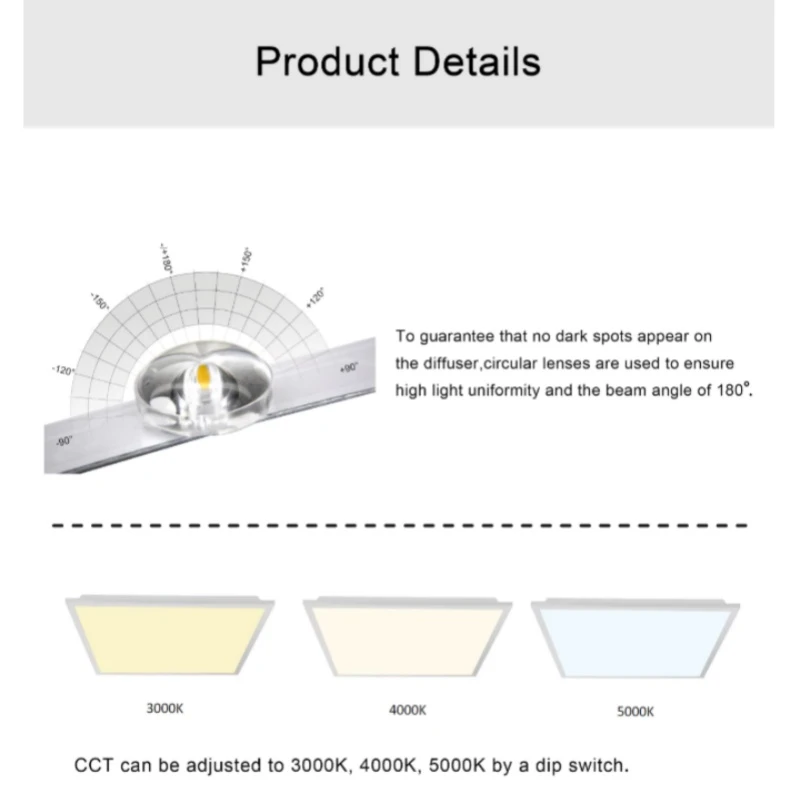

Perfect Light Uniformity: Advanced circular lenses guarantee a 180° beam angle with absolutely no dark spots on the diffuser, ensuring a perfectly even glow across the entire panel.
Customizable Ambiance (CCT Adjustable): A convenient dip switch allows you to effortlessly toggle between 3000K (Warm White), 4000K (Neutral White), and 5000K (Cool White) to suit any mood or application.
Lifespan & Lumen Depreciation
Exceptional Longevity: Designed for a long lifetime, drastically reducing maintenance and replacement costs for commercial spaces.
Advanced Thermal Management: The premium Aluminum cooling frame efficiently dissipates heat, preventing overheating and drastically minimizing lumen depreciation over time. Your light stays as bright on day 1,000 as it was on day one.

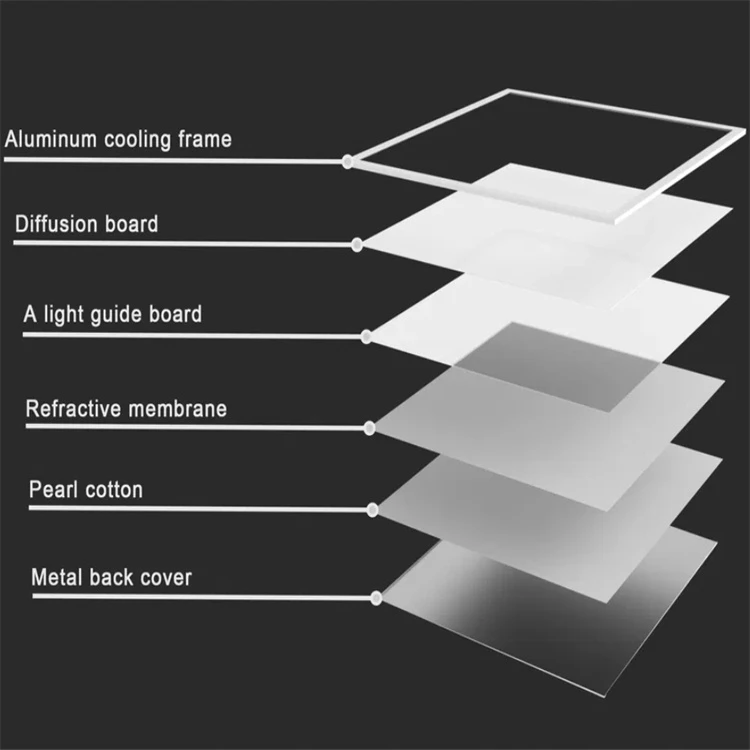

Robust Multi-Layer Construction: Features a high-quality diffusion board, a precision light guide board, a refractive membrane, pearl cotton, and a sturdy metal back cover. This layered architecture protects internal components and ensures stable, long-term operation.
Protection & Durability (IP Rating)
Commercial-Grade Protection (IP20/IP40 standard for indoor panels): Designed primarily for indoor commercial environments, the sealed multi-layer structure effectively prevents dust ingress and protects against solid foreign objects. (Note: While it provides excellent protection against dust, it is intended for dry indoor applications such as offices, malls, and transit hubs).
Built to Last: The robust aluminum frame and metal back cover protect the delicate light guide and refractive membranes from physical damage and environmental wear.
