comparison of product parameters
| Input Voltage(V) | AC 85-265V | Light Source | LED |
| Application | Bedroom | Installation Style | Suspended |
| IP Rating | IP44 | Lamp Sizes | Middle |
| Color Temperature(CCT) | 5000K (Daylight) | Color Rendering Index(Ra) | 80 |
| Lamp Luminous Efficiency(lm/w) | 100 | Control Mode | Switch Control |
| Warranty(Year) | 2-Year | Lifespan (Hours) | 30000 |
| Lighting solutions service | Light Drawing And Design, Auto Cad Layout, Litepro Dlx Layout, Lighting And Circuitry Design | Design Style | Minimalist |
| Cover Material |
Plastic |
Base Material | Plastic |
| Product Dimension | 300x24mm | Lamp Luminous Flux(lm) | 1800 |
| PCs/ Ctn | 20 | Working Temperature(℃) | -10 - 40 |
| Installation | Surface Flush Mount | Size | 9Inches/12inches/16inches |
| IP Degree | IP20 | Beam Angle | 110 |
Light Source & Luminous Performance

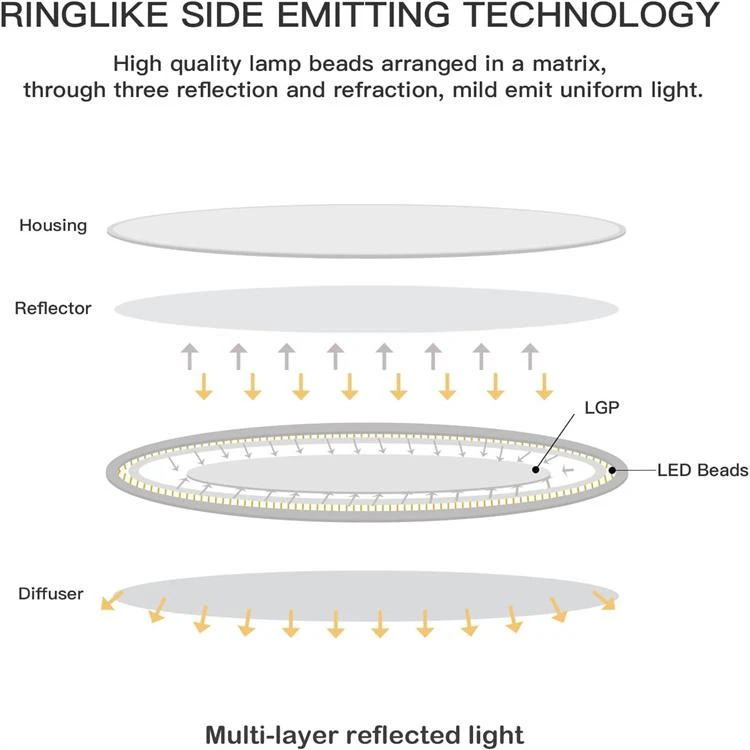

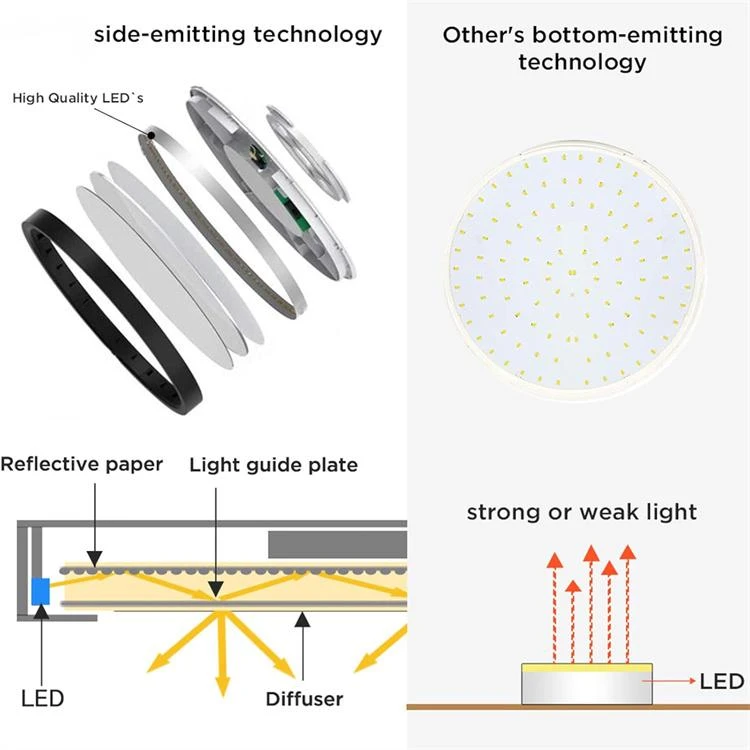

Structure of a Core Side-Emitting Light Source Featuring a unique ring-like side-emitting light guide plate (LGP), multi-layer reflective paper, and high-transmittance diffuser three-stage optical construction, it is outfitted with premium SMD LED beads arranged in an annular matrix layout around the inner perimeter of the lamp. This is entirely different from standard bottom direct-emitting LED ceiling panels with concentrated chip layout. LED chips inject light laterally into a precisely carved light guide plate. Point-source LED light is transformed into full-surface planar output within LGP by uniform light refraction and repetitive specular reflection. The absence of centralised naked LED chips on the light-emitting surface eliminates the uneven bright/dark zoning defect and local hot spot that are typical of bottom-emitting alternatives.
Superior Comfort and Luminous Output With a 5000K pure daylight correlated colour temperature (CCT) and a rated 2400lm constant total lumen output under 24W power demand, the high CRI chip combination restores real object colour representation for everyday indoor situations. The multi-layer light homogenisation method successfully reduces harsh glare and produces full-panel homogenous soft light output free of strobing, flickering, and dark corners. When compared to patchy bottom-emitting rivals, diffused downlight significantly improves interior lighting comfort by providing eye-friendly anti-glare illumination that complies with worldwide residential eye-care lighting standards. To provide long-term steady luminous decay management, optical components with an IP40 ingress protection grade are shielded from fine dust penetration.
Power Supply & Energy Consumption

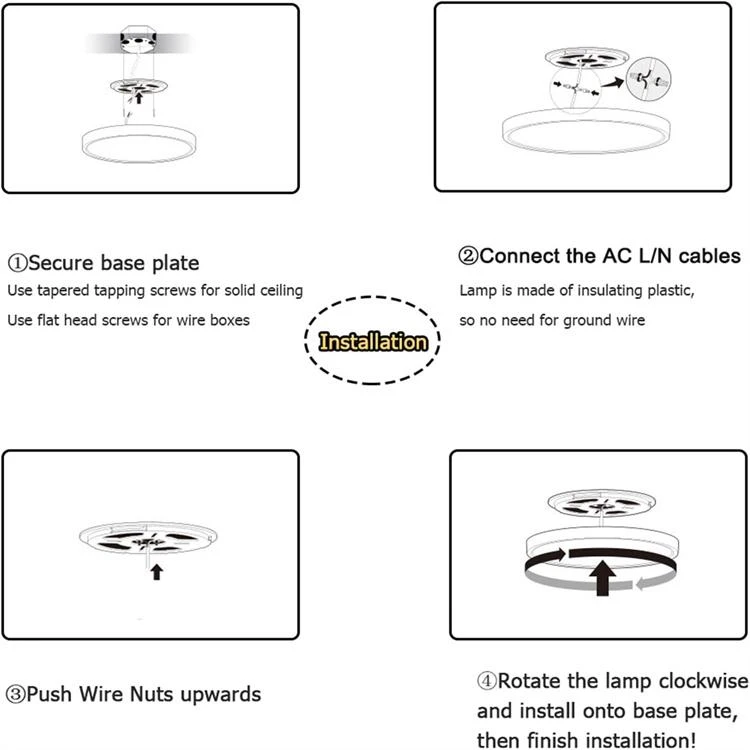

Power Input & Drive Configuration: The built-in isolated constant-current certified LED driver is compatible with a standard universal AC mains input; wiring only needs a live (L) and neutral (N) cable connection; the lamp housing is made of fully insulating plastic, eliminating the need for an additional earth grounding wire. This simplifies on-site wiring operation while adhering to the ETL listed North American electrical safety specification.
Outstanding Energy Efficiency Index: A nominal power consumption of 24 W may provide an effective luminous flux of up to 2400 lm, with an ultra-high system luminous effectiveness of 100 lm/W. reduces monthly power costs for lighting by more than 80% by substituting a 45W CFL fluorescent fixture or a traditional 150W+ incandescent bulb with an equivalent brightness level. Optimised LED chip low-heat consumption design minimises thermal attenuation of luminous efficiency, maintaining stable low energy consumption throughout the fixture's long service lifespan and reducing post-operation maintenance costs for end users. Low-power constant-current drive limits needless idle power loss.
Wide Application Scenarios
A variety of indoor residential and light business application settings are ideal for this thin flush mount LED ceiling light with a simple round appearance. Excellent for living room, foyer, hallway, closet and laundry room for all-day consistent practical lighting; perfect for bedroom primary ceiling lighting as a core ambient source to create a comfortable, peaceful sleeping ambiance. In addition to home spaces, it may be used extensively for auxiliary ceiling lighting in small office spaces, flat rental renovations, boutique store backrooms and cafes. In order to harmonise space aesthetics and lighting function, the ultra-slim body design accommodates low-ceiling homes without taking up vertical space. Dual black/white trim choices blend in effortlessly with modern minimalism, Nordic, contemporary, and other major interior decorating trends.
