comparison of product parameters
|
Input Voltage(V) |
220V-240V |
IP Rating |
IP40/IP54 |
|
Lamp Luminous Efficiency(lm/w) |
100/120/165/180 lm/W |
Lifespan (Hours) |
50000 |
|
Color Temperature(CCT) |
3000-6500K |
Color Rendering Index(Ra) |
80 |
|
Support Dimmer |
Yes |
Warranty(Year) |
5-Year |
|
Lamp Body Material |
Aluminum+PMMA/PC |
Application |
Home Office/Hotel/Hospital/School/Mall/Warehouse |
|
Design Style |
European |
Lighting solutions service |
Lighting And Circuitry Design, Dialux Evo Layout, Germany company |
|
Light Source |
LED |
Place of Origin |
China |
|
Model Number |
Slim Panel Light-SP |
Lamp Luminous Flux(lm) |
3960/4000/4320 |
|
Working Temperature(℃) |
-20 - 45 |
Power Factor |
0.9 |
|
Size |
60x60/30x120 cm |
Thickness |
25mm |
|
Lens |
Mitsubishi PMMA lens, kafuter glue |
Feature |
Energy Saving ,Larger Beam Angle, No Flicker, Eyes Caring |
|
Delivery time |
Stock in Germany 3 Days Fast Delivery |
Certification |
ENEC / New ERP / CB / RoHS / CE |
Lighting Performance

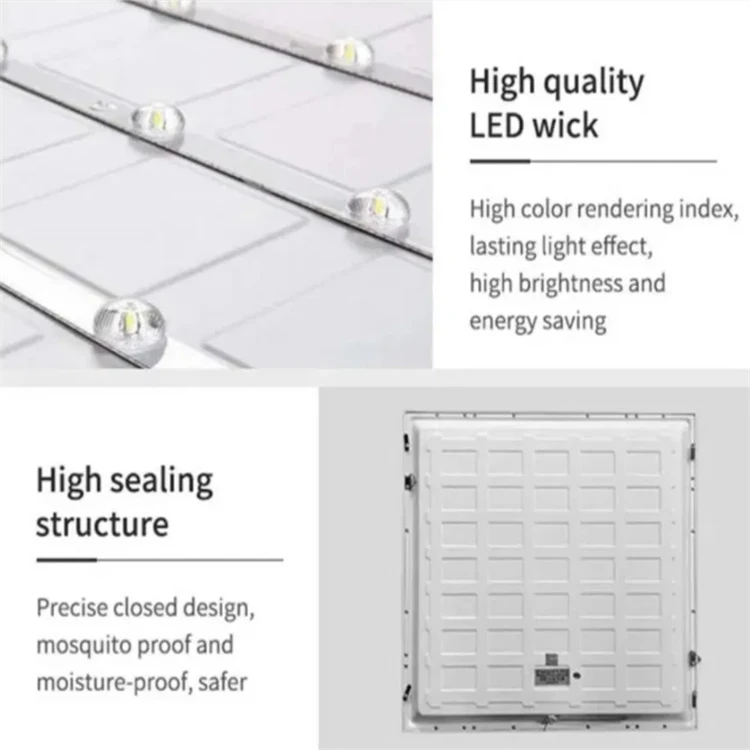

Adopts high‑grade SMD LED wicks with high Color Rendering Index (CRI ≥ 80). It restores real object color faithfully without color distortion; the lens‑assisted direct‑emitting optical structure realizes even light output, effectively suppress dazzling glare to relieve eye fatigue for long‑hour working environment.
High luminous efficiency performance. Compared with conventional fluorescent grille lamps, it cuts power consumption greatly, realizing remarkable energy‑saving effect. No stroboscopic flicker risk, comfortable and stable light output for daily long‑term use.
Wide‑voltage isolated LED driver supports 100‑265V AC input. Excellent voltage fluctuation resistance guarantees steady lighting output even under unstable grid voltage conditions. Grounding wire design further enhances electrical safety for commercial installation.

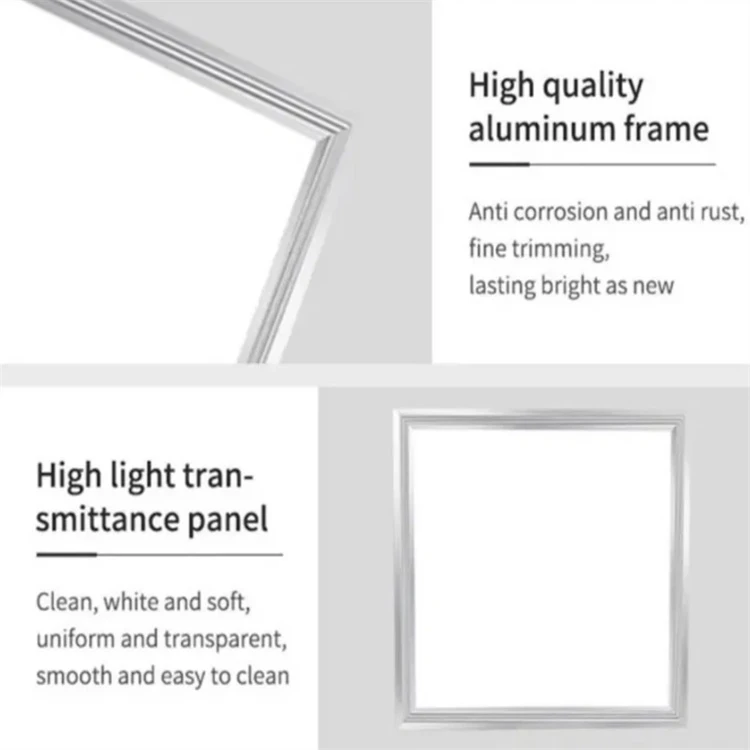

High‑light‑transmittance diffuser panel delivers soft, clean white light. Smooth surface finish makes daily dust‑wiping cleaning simple and convenient. High‑precision aluminum alloy frame features anti‑rust & anti‑corrosion capability; the rigid frame keeps panel flat without deformation after long‑time operation.
Service Life & Luminous Degradation(Light Loss)
Rated service life reaches 50,000 working hours. Scientific thermal dissipation structure on the rear aluminum back shell rapidly dissipates working heat generated by LED chips. Lower operating temperature effectively slows down chip ageing progress.
Controlled slow luminous attenuation: Thanks to premium LED chips plus optimized heat‑dissipation system, long‑term light fading is well suppressed. After 30,000 working hours, the lumen maintenance still remains above 70% of initial brightness, avoiding early obvious darkening of the lamp.
Low whole‑lamp ageing rate. Isolated constant‑current power supply prevents current surge damage to LED wicks, reducing early failure risk of light source and driver modules, which greatly lowers later‑period maintenance & replacement cost for your projects.
Stable long‑time continuous‑on performance. The lamp can sustain non‑stop lighting operation for commercial premises that require 24‑hour lighting, without rapid performance decline.
Protection Grade & Structural Sealing Performance
Precision closed sealing whole‑lamp construction. The well‑sealed inner cavity realizes mosquito‑proof and moisture‑proof performance, stopping tiny insects, moisture vapor and dust from penetrating inside the lamp housing. It can be deployed in moderately humid indoor environments such as restroom and kitchen ceilings.
Ingress protection rating: IP40. It offers reliable defense against solid foreign objects greater than 1 mm, preventing dust accumulation inside the light fixture; note that it is for indoor dry‑to‑slightly‑humid application only, NOT suitable for direct splashing water outdoor scenarios.
Robust aluminum back cover with integrated heat‑dissipation grid structure. The solid rear shell also provides extra protection for internal LED light strips and driving power unit against mechanical bump damage during installation.
Complete safety wiring design with dedicated ground connection. The SELV isolated driver isolates high‑voltage input side from the light‑output side, effectively reducing electric‑shock hazard for end‑users.
