product Specification
| Input Voltage(V) | AC 85-265V | Light Source | LED |
| Lamp Body Material | Aluminum | Lifespan (Hours) | 50000 |
| Lamp Luminous Flux(lm) | 1000 |
Color Temperature(CCT) |
3000k-6000k |
| Support Dimmer | No | Working Temperature(℃) | -30-50 |
| Warranty(Year) | 3-Year | Color Rendering Index(Ra) | 80 |
| Lamp Luminous Efficiency(lm/w) | 100 | Lighting solutions service | Lighting And Circuitry Design, Project Installation |
Core Product Features
Leading-Edge LED Light for Natural-Looking Radiance This panel achieves a state-of-the-art efficiency of 60-90 lm/W, driven by top-tier Samsung or Citizen 2835 SMD chips. It produces natural-looking light with a high colour rendering index (CRI) of 80 to 90. You may adjust the colour temperature from 2700K (warm white) to 8000K (cool white) to fit your mood and the environment.
Superior Heat Dissipation in an Efficient and Long-Lasting ConstructionThe built-in heat sink of the high-quality aluminium casing keeps the LEDs cool and extends their lifetime. Its three-piece high-transmittance PC diffuser guarantees uniform illumination with no hot spots or glare. The ultra-thin design achieves a minimalist aesthetic by sitting flush with the ceiling.
Consistent, Error-Free Operation with Authorised Driver Featuring a top-notch constant-current LED driver, this light effortlessly functions throughout a broad voltage range (AC165-265V, 50/60Hz). For your piece of mind, it comes with a 2-year guarantee and reduces flickering. It also protects against voltage fluctuations.
Apt for round-the-clock use in commercial and public areas. Installing Using Spring Clips Is Simple and SecureA secure, rattle-free installation is guaranteed by the panel's built-in spring clips, which lock into the ceiling cutouts. You can save time and money by simply replacing your existing recessed lights with this simple fixture. It doesn't need any sophisticated wiring or additional equipment.
Quick & Safe Installation Guide
Safety First Turn off the power supply at the circuit breaker. Confirm the ceiling cutout size matches the panel's dimensions before installation.
Prepare the Wiring Connect the panel's driver to the mains power wires (L/N). Ensure the connection is secure and insulated.

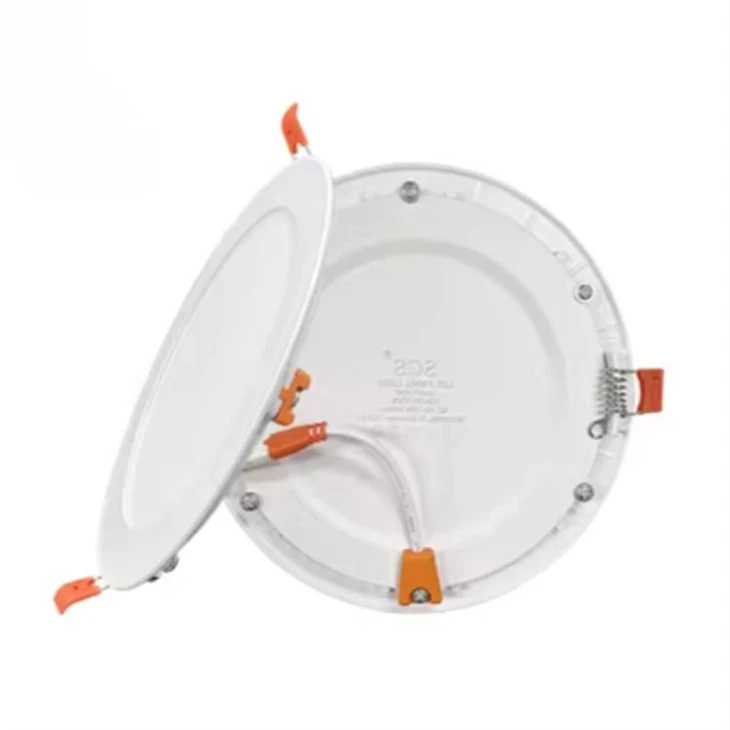

Install the Panel Squeeze the spring clips on both sides of the panel, insert it into the ceiling cutout, then release the clips. They will automatically expand to lock the light in place.
Test the Light Restore power. The panel will light up instantly with no warm-up time. Check for even brightness and stable operation. If it fails to light, turn off the power and recheck the wiring connection.
Ideal Application Scenarios
Commercial Spaces: Offices, retail stores, supermarkets, and shopping malls
Hospitality: Hotels, restaurants, and cafes
Residential: Bedrooms, living rooms, kitchens, and bathrooms
Public Areas: Schools, hospitals, libraries, and hallways
📩 Ready to Elevate Your Lighting Project?
✅ Customization Available: Multiple sizes, wattages, and color temperatures to meet your exact needs.
✅ Bulk Discounts: Competitive wholesale pricing for large orders.
✅ Global Compatibility: Works with standard voltages worldwide.
✅ Fast Shipping: Reliable delivery to North America, Europe, Asia, and beyond.
Our firm prides itself on owning its own factory, guaranteeing complete control over the production process and the quality of our goods. We are not only agents; we are manufacturers committed to offering our clients the most competitive rates available. We invite consumers to evaluate our samples first, as we are assured that the quality and pricing of our items are self-evident. Our dedication to excellence and client satisfaction compels us to consistently perform at our best and provide superior quality products.
