comparison of product parameters
|
Cut Out |
95 mm, 125mm, 165mm, 200mm | Installation Style | Downlights |
|
Input Voltage(V) |
220V-240V |
Application |
Home, Office, Shopping mall, Hotel |
| IP Rating | IP20 | Color Temperature(CCT) | 2700K/3000K / 3500K / 4000K / 5700K |
| Lamp Luminous Efficiency(lm/w) | 80 | Lifespan (Hours) | 50000 |
|
Warranty(Year) |
3-Year |
Support Dimmer |
Optional dimming |
|
Light Source |
LED |
Lamp Body Material |
Aluminum |
|
Design Style |
Minimalist |
Feature |
Anti-Glare, Eco-Friendly, Durable, High Brightness, Easy Installation |
|
Switch Type |
On/Off Switch |
Color Rendering Index(Ra) |
90 |
|
Beam Angle |
100 |
Lighting solutions service |
Lighting And Circuitry Design, Project Installation |
|
Place of Origin |
Guangdong, China |
Lamp Luminous Flux(lm) |
720/960/1600/2000 |
|
Product Weight(kg) |
0.5 |
Product name |

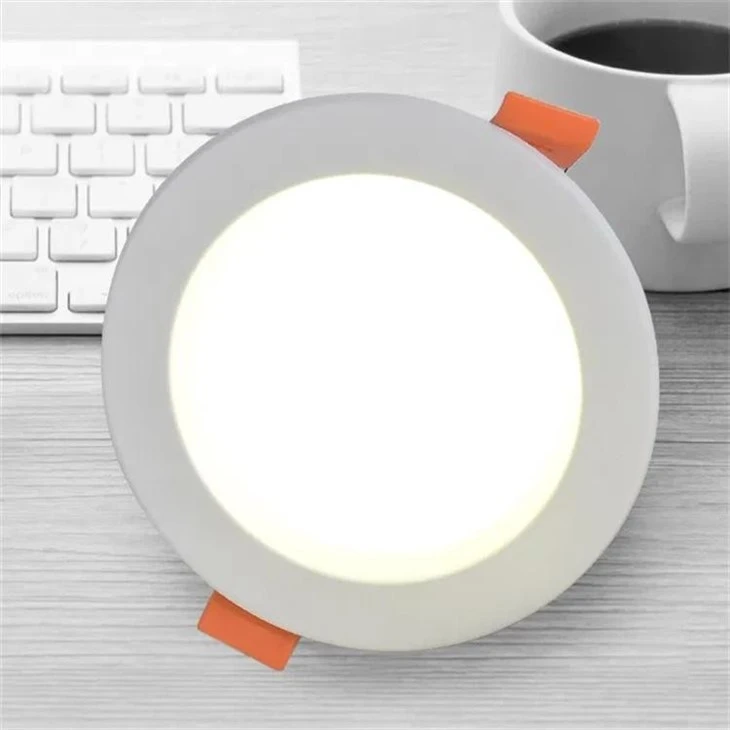

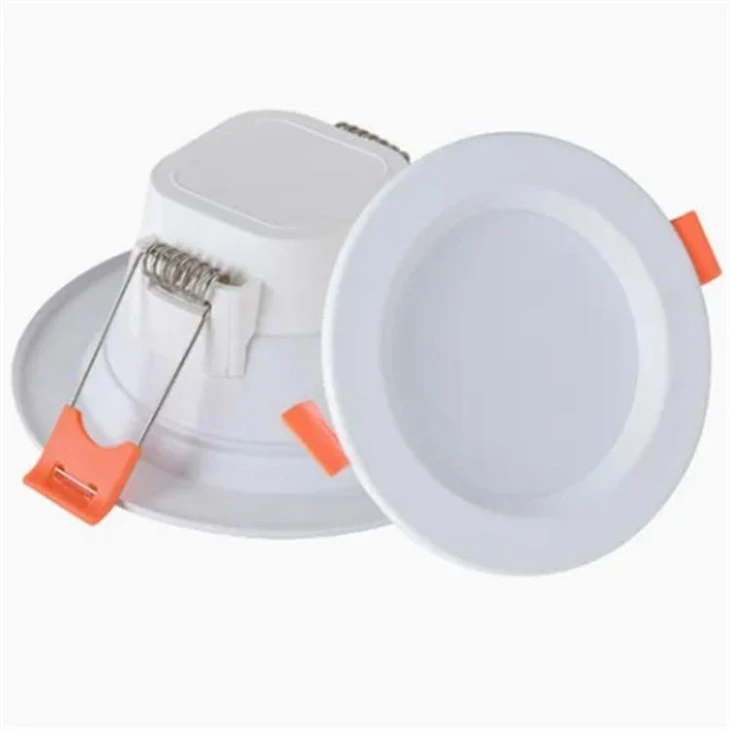

SMD Ultra-thin Downlights |
|
LED Chip |
Bridgelux |
Driver |
Eaglerise |
✅ Optical Performance

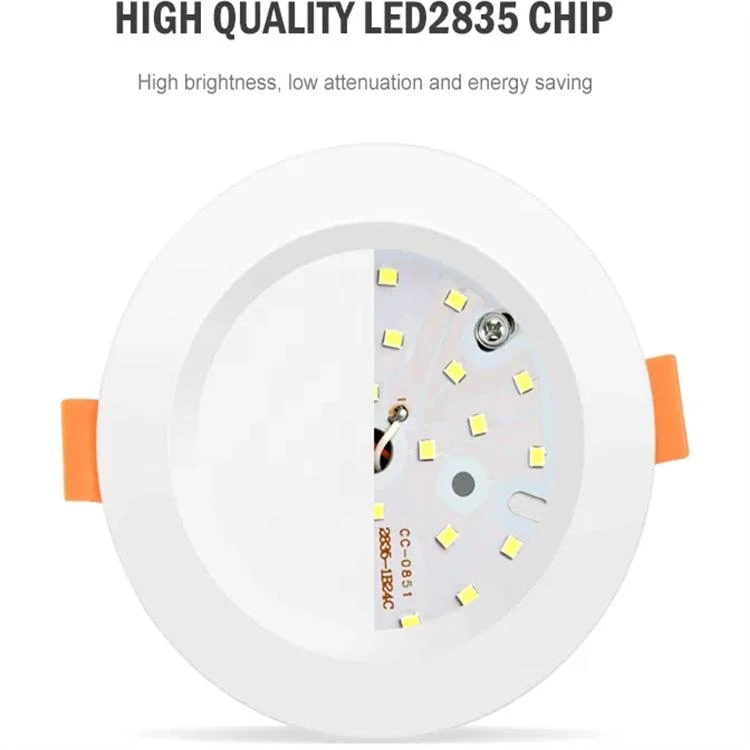

Equipped with high-quality SMD 2835 LED light source chips, featuring high luminous efficiency, low light attenuation and outstanding energy-saving performance
High Color Rendering Index (CRI), restores true color of objects, ideal for display, shopping mall and household ambient lighting
Uniform soft light output with anti-glare diffuser cover, effectively reduce harsh light irritation to human eyes
Completely flicker-free design, no stroboscopic phenomenon when captured by mobile phones, achieves professional eye-protecting lighting effect
Multiple color temperature options available: Cool White, Neutral White, Warm White to satisfy diversified scene lighting demands
✅ Driver & Circuit Stability

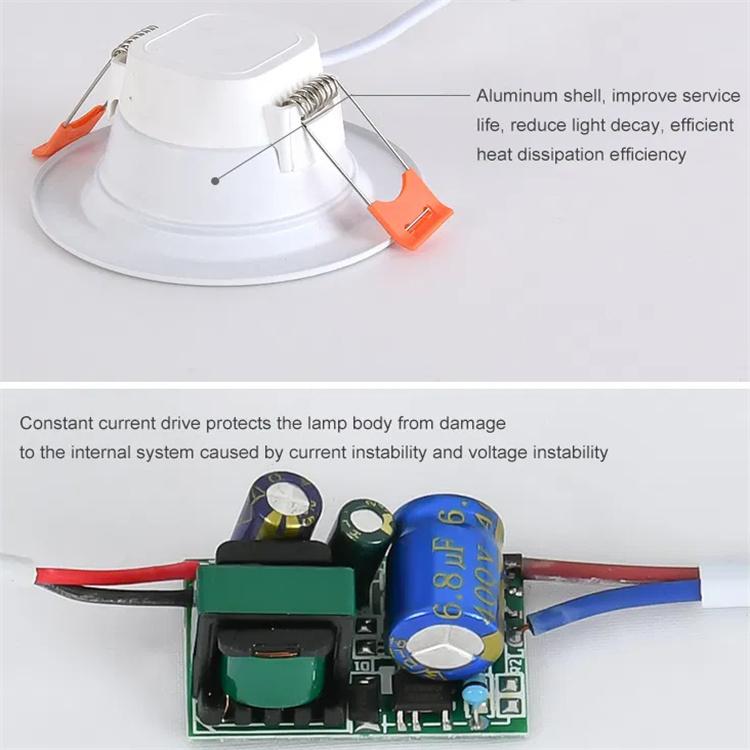

Built-in professional constant-current LED driver, stabilizes output current and voltage
Effectively avoid lamp damage caused by grid voltage fluctuation and unstable current
Independent capacitance and resistance circuit layout, strong anti-interference capacity
Low heat generation of internal drive board, improves continuous operation reliability under long-time lighting
✅ Installation & Structural Design

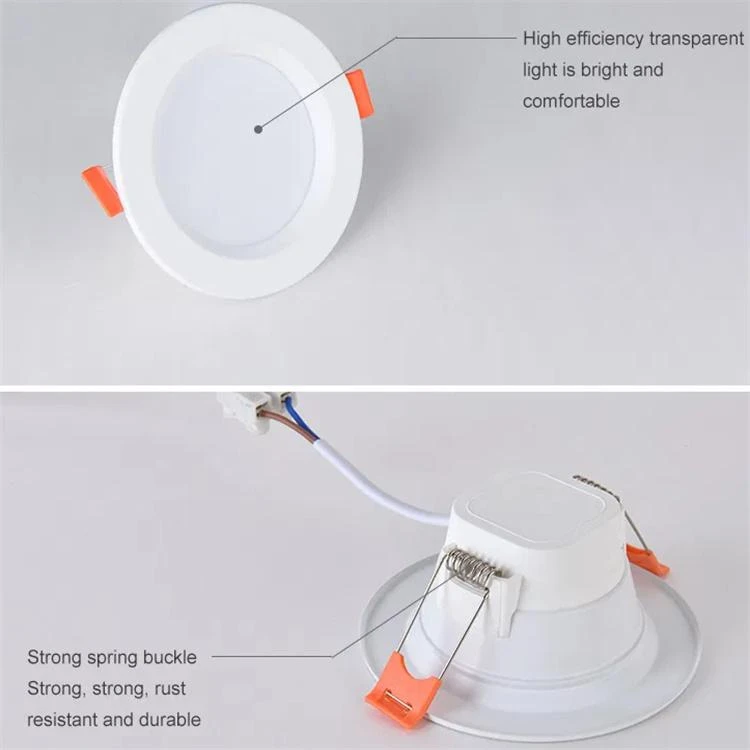

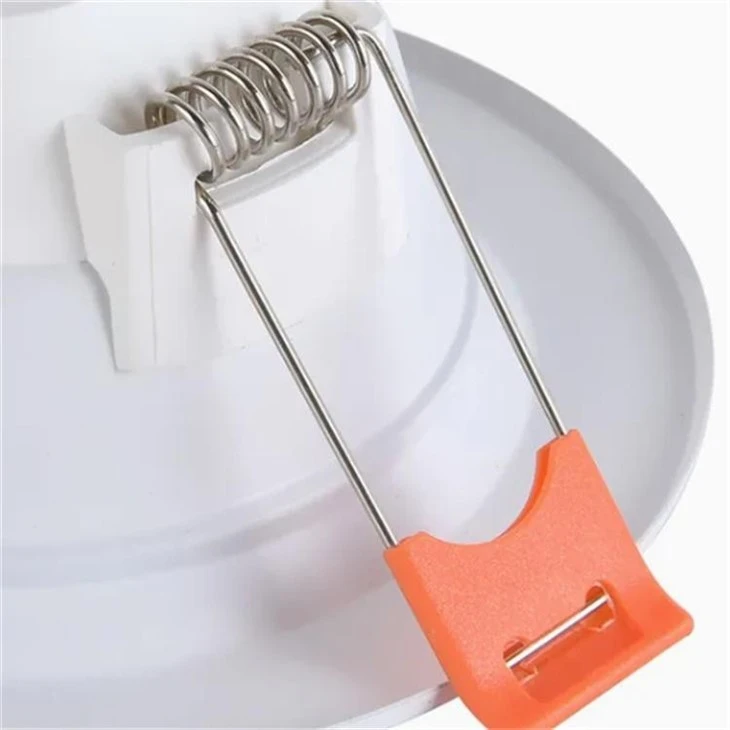

Robust stainless steel spring buckle mounting structure, rust-proof, high elasticity and durable
Quick recessed installation for gypsum board, wood ceiling, PVC ceiling and other common ceiling materials
Firm clamping force ensures the lamp stays tightly fixed on ceiling, not easy to loosen or fall off
Standard embedded round appearance, concise white matte surface, compatible with most modern interior decoration styles
Pre-wired terminal connection, simple wiring operation, convenient for bulk construction engineering
