Features

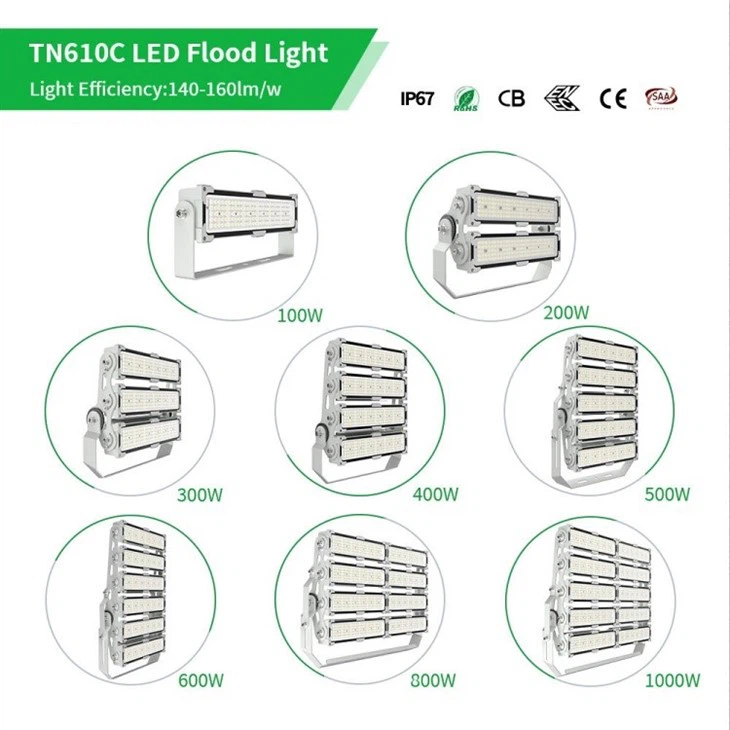

1. Covers a full range of power from 100W to 1000W, with freely combinable power ratings; supports single-module and multi-module splicing, matching corresponding brightness to various lighting needs from small venues to large open spaces.

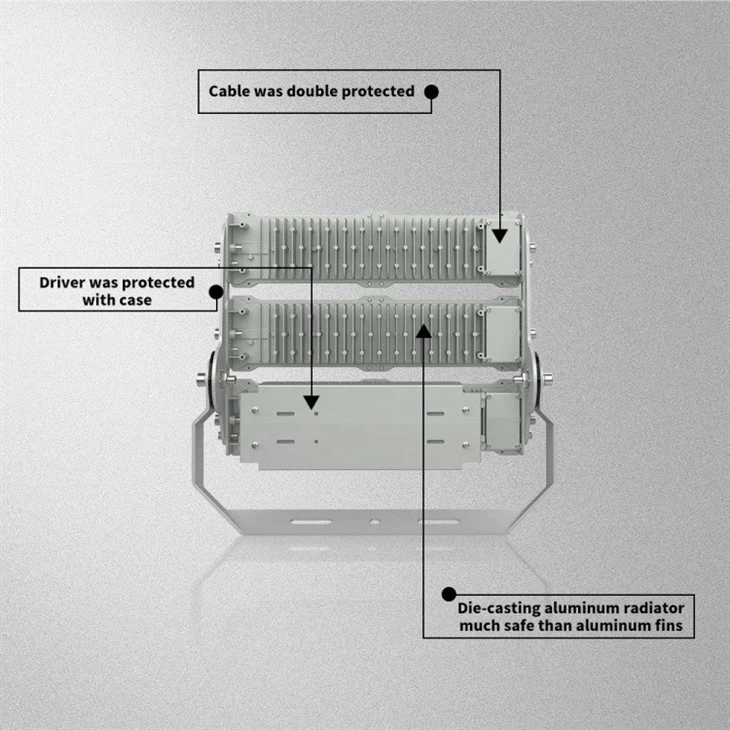

2. Employs die-cast aluminum heat sinks, offering superior heat dissipation compared to ordinary aluminum fins; the driver power supply features a protective casing and double cable protection, ensuring safe and stable circuitry.

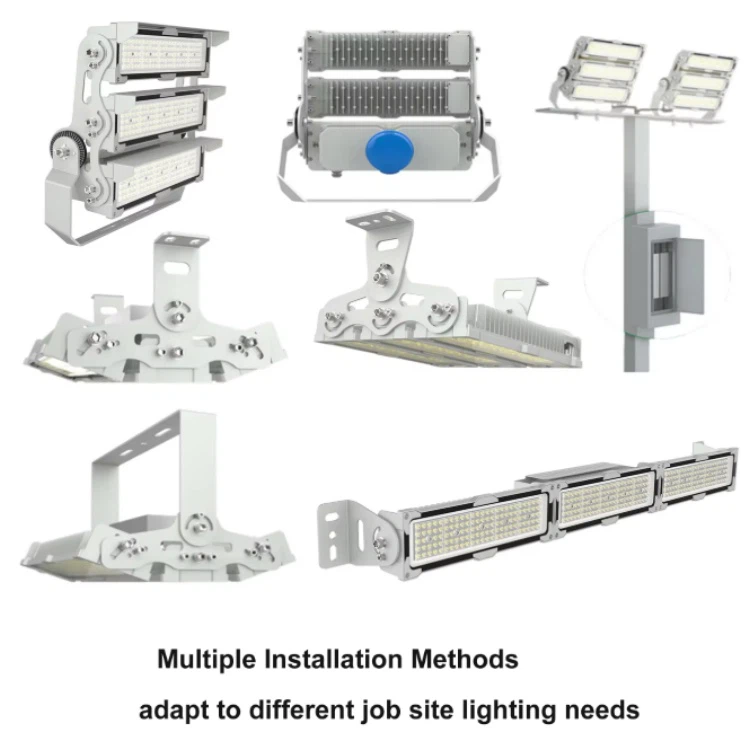

3. Supports various mounting methods including wall mounting, pole mounting, bracket installation, and floor mounting; accessories are compatible with various installation scenarios; simply connect to mains power to light up; can be used independently or in combination; simple operation and convenient maintenance.

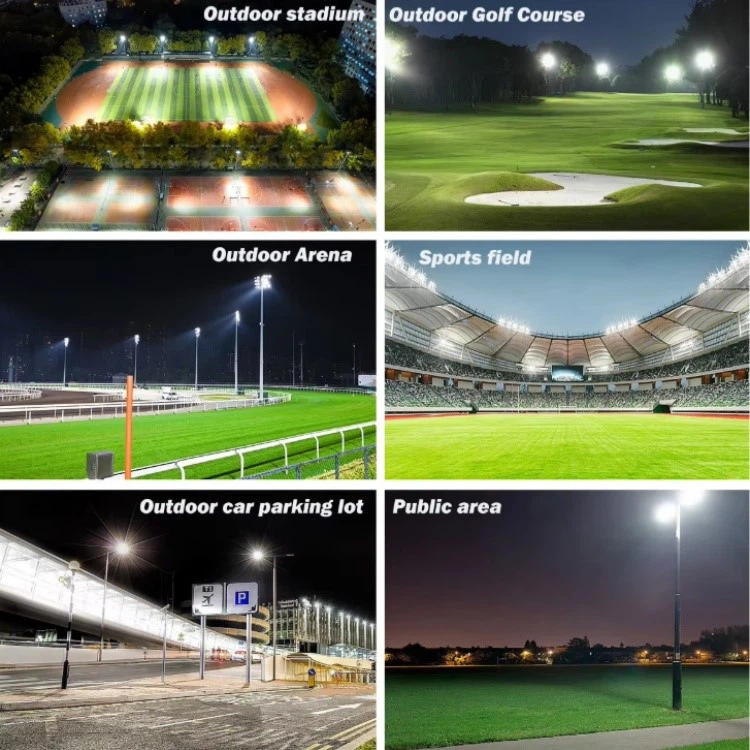

4. Primarily used in stadiums, sports fields, golf courses, outdoor arenas, parking lots, large plazas, industrial parks, and public open areas; also suitable for construction sites, ports, logistics parks, and other engineering lighting projects, adaptable to large-area outdoor lighting and work lighting needs.
| Products name | IP67 Outdoor Sport Led Floodlight | Input Voltage(V) | AC90-305V, 50/60Hz, 249-528V AC on |
| Tube Materials | Die casting aluminum ADC12,PC lens+glass | Color Temperature(CCT) | 3000-6500k |
| Color Rendering Index(Ra) | 80 | Working Temperature(℃) | -20-50 |
| Lifespan (Hours) | 50000 | Applicaiton |
ROAD, stadium, street, sports,Sport Field Flood Stadium Lights |
| Beam Angle(°) | 20°,30°, 45°, 60°, 90°,120°,60x120°, 90x120° | Warranty(Years) | 3 |

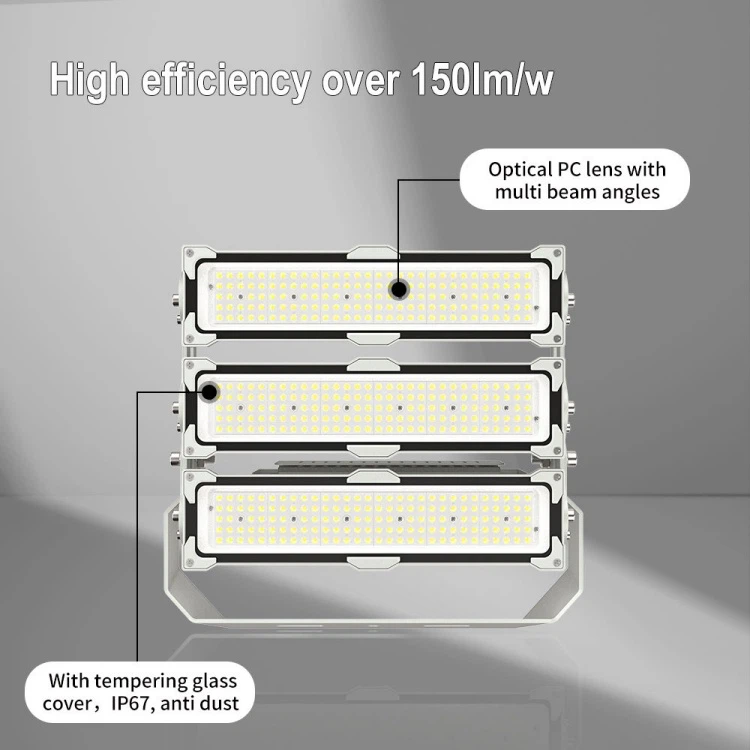

| Power | 300W (30watt to 1000watt optional) | Lamp Luminous Efficiency(lm/w) | 150-160lm/w,165-180lm/w |
| Power Factor | >0.90 | IP Rate | IP67 Waterproof |
| Driver | Normal driver or MEANWELL driver | Certificated | CR, ROHS, PSE |
| Led chip | 3030 or 2835 SMD | Installation | Wall Mount, Surface Mounted |
| Control Method | switch | Feature | High efficiency, good heat dissipation, long lifespan, good waterproof Plus Size, High Bright, Lightweight |
| Lamp Luminous Flux(lm) | 45000lm~54000lm | Light Source | LED |
More detail

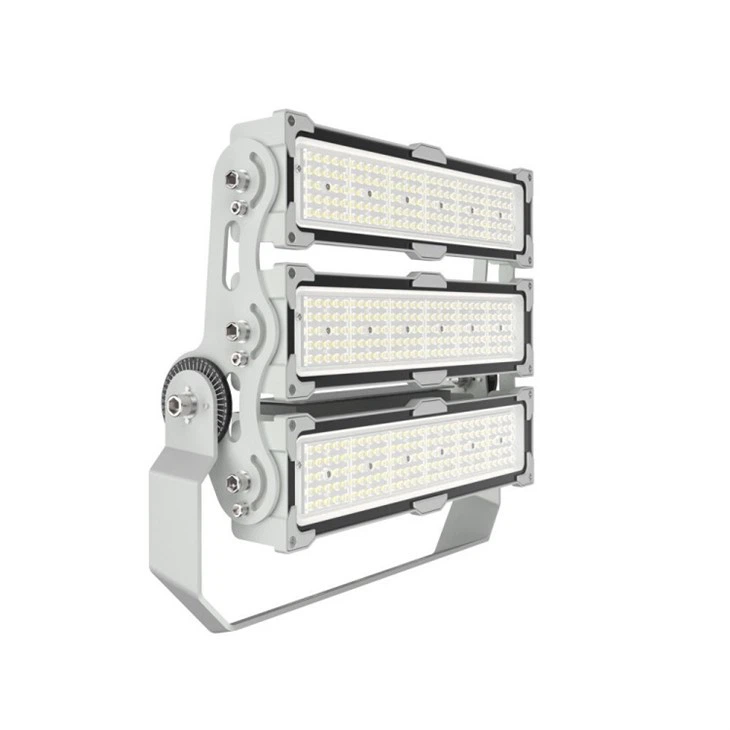

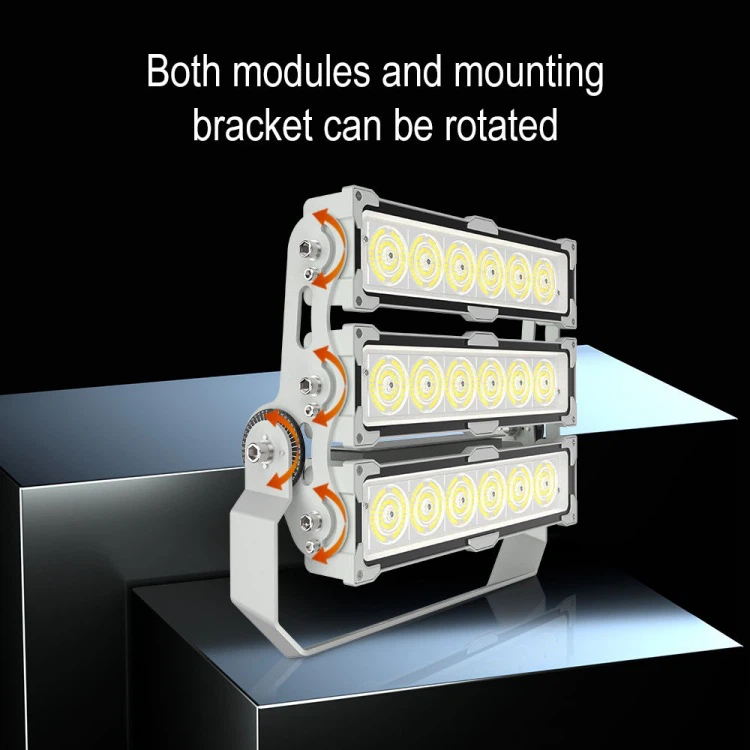

The TN610C modular LED floodlight is a professional lighting fixture designed for high-power, large-area outdoor lighting. Its core advantages lie in its high luminous efficiency and energy saving, IP67 strong protection, and flexible, adjustable modular structure. It offers a wide range of power options, excellent heat dissipation and safety protection, and is suitable for various harsh outdoor environments. Multi-angle adjustment and multiple installation methods allow it to be flexibly adapted to different scenarios such as stadiums, parking lots, industrial parks, and large squares. The fixture is simple to operate and easy to maintain, meeting the professional event lighting needs of large sports venues as well as the basic lighting requirements of ordinary outdoor venues and construction sites. It is a cost-effective choice for large-scale outdoor lighting and engineering lighting projects, allowing for flexible configuration of power and number of fixtures according to the site area to achieve uniform and efficient lighting effects.
