comparison of product parameters
|
Application |
Sports Stadiums |
Light Source |
LED |
|
Input Voltage(V) |
AC 85-265V |
IP Rating |
IP66 |
|
Lamp Luminous Efficiency(lm/w) |
150 |
Lifespan (Hours) |
40000 |
|
Color Temperature(CCT) |
5000K (Daylight) |
Color Rendering Index(Ra) |
80 |
|
Lamp Body Material |
Aluminum Alloy |
Warranty(Year) |
5-Year |
|
Support Dimmer |
Yes |
Lighting solutions service |
Lighting And Circuitry Design |
|
Working Temperature(℃) |
-25-60 |
Place of Origin |
Guangdong, China |
|
Beam Angle(°) |
60 |
Lamp Luminous Flux(lm) |
75000 |
|
Product Weight(kg) |
37.5 |

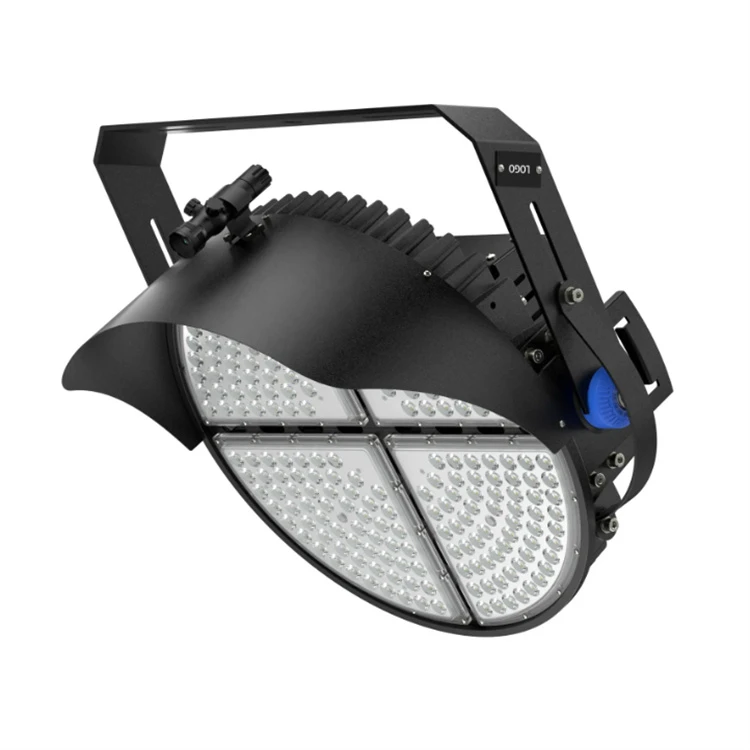

LED High Mast fLOOD |
400W 500W 600W 800W 1000W 1200W |
|
Input Voltage |
100-277V |
CCT |
3000K 4000K 5700K |
|
Market |
Eruope,African,South America |
IP Rate |
IP65 Waterproof |
|
Material |
Aluminum+Glass Cover |
Installation |
10-20M height |
Key Feature
Uses a high-power integrated modular LED light source design that provides exceptional luminous effectiveness and ultrahigh lumen output. It eliminates the uneven bright and dark areas that are typical of conventional floodlights and flawlessly satisfies the stringent illumination requirements for stadium competition lighting by producing uniform, constant light distribution over vast target zones.

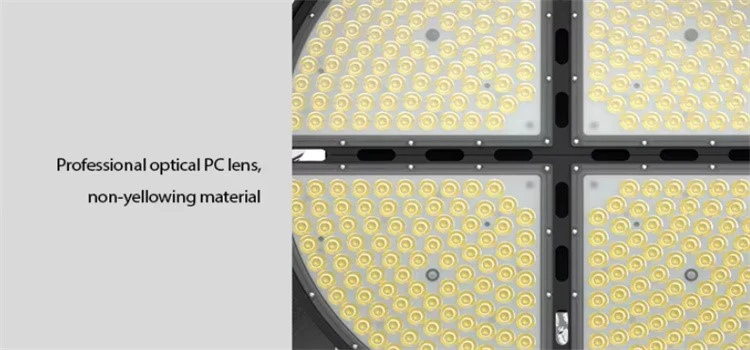

outfitted with expert non-yellowing optical PC lenses. Light pollution and light energy loss are significantly reduced, light projection angles are accurately controlled, luminous flux is concentrated onto necessary regions, dispersed stray light is prevented from rising into the sky, and a higher effective light utilisation rate is achieved thanks to the customised lens design.
Key Feature

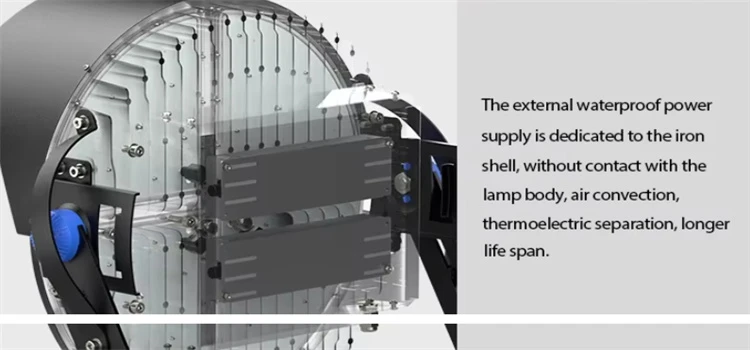

A unique thermoelectric separation structure with an independent, waterproof external power source. The motor is physically separated from the lamp's main body and mounted on a special iron frame. Between the power unit and light source module, natural air circulation constantly generates, quickly removing stored heat and preventing heat accumulation within the luminaire.
A thicker aluminium alloy ribbed heat sink is used in this excellent thermal management system. Dense fin-type radiators significantly reduce light attenuation, minimise premature bulb ageing due to overheating, increase heat dissipation contact area, accelerate heat conduction and air circulation, and maintain LED chips operating at a steady low temperature.
Key Feature
Superior longevity and low light loss performance: The rated service life may approach 50,000 hours under steady operating circumstances. It outperforms traditional LED floodlights and antiquated metal halide lamps by maintaining less than 30% lumen degradation after 50,000 operating hours due to optimised heat dissipation and thermoelectric isolation architecture. For project owners, fewer replacements and maintenance cycles result in significant long-term cost reductions.
superior IP66 waterproof and dustproof protection certification. A fully sealed lamp chamber construction entirely prevents dust from entering and can withstand strong water jet impacts from all angles. Without water condensation within the lamp, it functions steadily under conditions of intense rain, humid coastal air, sandstorms, and significant temperature fluctuations.
How To Cooperate With Us?
Since we have our own facilities, we are pleased to have complete control over the production process and the quality of our goods. We are committed to giving our clients the finest prices since we are manufacturers rather than just brokers. We encourage buyers to see our samples first since we are certain that the cost and calibre of our items are transparent. Our dedication to excellence and client happiness motivates us to consistently provide superior products.
