comparison of product parameters
| Input Voltage(V) | 85-265V/100-277V | Base Type | E39 |
| Color Temperature(CCT) | 2700-6500k | Color Rendering Index(Ra) | 85 |
| Lamp Luminous Efficiency(lm/w) | 160 | Lifespan (Hours) | 50000 |
| Support Dimmer | No | Lamp Body Material | Aluminum |
| Design Style | Modern | Application | Home Office |
| Lighting solutions service | Lighting And Circuitry Design, Litepro Dlx Layout, Project Installation | Light Source | LED |
| Item Type | Track Lights | Lamp Luminous Flux(lm) | 110LM/W/120LM/W/160LM/W |
| Model Number | BW-1323 | Place of Origin | China |
| Brand Name | Benwei Lighting | Product name | led track light |
| Beam angle | 15/24/38/60 Degree | LED Light Source | COB |
| CRI (Ra>) | 90 | Working Lifetime | 50000Hours |
| CCT | 2700K-6500K | Track Adapter | 4 Wire 3 Phase/ENEC |
Light Source & Luminous Efficiency
Light Source Configuration
Adopted industry-leading OEPE COB LED chip as standard light source, optional upgraded PHILIPS / CREE branded LED chips for customized high-end demands, eliminating traditional scattered point light source's uneven lighting flaw. Integrated single-piece chip packaging structure delivers concentrated, uniform beam output without dark spots or astigmatism.
Professional Luminous Performance
Color Rendering Index: Multiple CRI options from Ra80 / Ra85 up to high-spec Ra＞90; Ra90 high-color-rendering version restores authentic object texture, true fabric color, art painting details and commodity natural hue, ideal for high-end merchandising & artwork display.
Luminous Efficacy: Tiered luminous efficiency data:
Ra80@3000K: 140lm/W ultra-high lumen output
Ra85@3000K: 120lm/W stable high brightness
Ra90@3000K: 110lm/W premium high-fidelity luminous performance *Noted: Under identical CRI parameter, 4000K & 6000K neutral/cool white variants boast higher lm/W value than 3000K warm white for extra brightness gain.
Color Temperature Flexibility: Full CCT range covers warm white 3000K, neutral white 4000K, cool white 6000K to satisfy diversified ambient lighting demands; high light consistency ensures no color difference among batch products.
Optical Design: Precision-engineered concave reflector lens optimizes light gathering rate, concentrates beam angle effectively to cut unnecessary light overflow, improves effective utilization of luminous flux for targeted accent illumination.
Power Supply & Energy Consumption
System of Power Supply
Designed to meet most national grid requirements as well as the EU, US, AU, and UK, it is compatible with major worldwide commercial voltage AC85-265V. Thickened pure copper conductive strips within the track provide consistent electrical conduction, low resistance and voltage drop, and prevent flickering or unstable luminescence brought on by poor contact when paired with a normal 2-core copper-conductor track rail system. With its insulated anti-shock structural design, the track connection satisfies stringent safety certification requirements for continuous, long-term commercial usage.
Energy Use and Energy-Saving Benefits

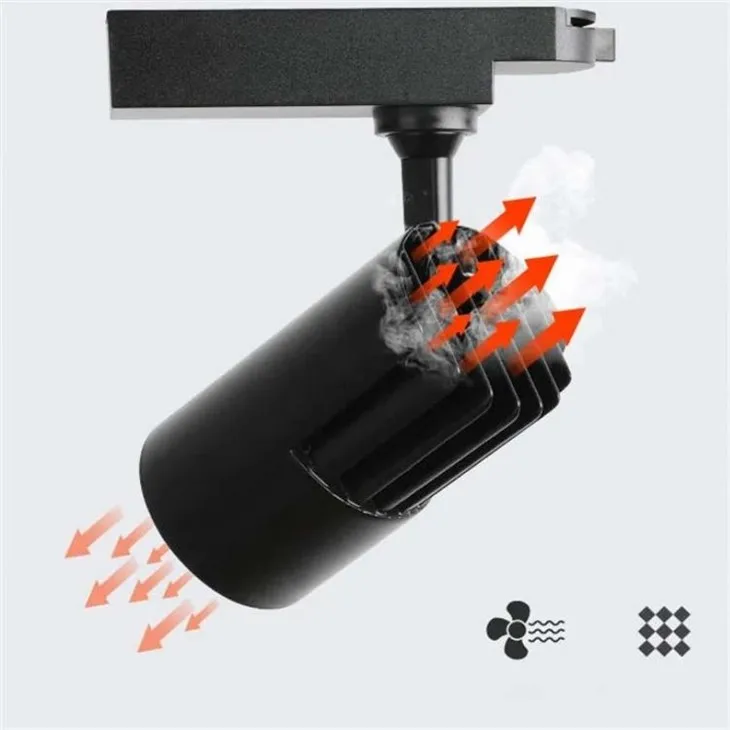

The fixture's exceptional energy-saving performance is made possible by its high-efficiency COB LED chip technology, which reduces power consumption by more than 75% while retaining a comparable luminous output when compared to traditional halogen track spotlights. A full aluminium radiator with a fin-type heat sink structure maximises heat dissipation area to quickly export chip working heat, effectively lower LED junction temperature, slow down luminous decay, extend service lifespan over 50,000 working hours, and lower end-user maintenance and frequent lamp replacement costs. For further power cost savings, low heat production also lessens the additional air conditioning demand in interior business spaces.
Application Scenarios
This adjustable COB track lighting is widely applicable for diversified commercial & residential accent lighting:
✅ Retail stores: clothing boutique, jewelry shop, cosmetics counter, shoe store, supermarket shelf commodity highlighting; high Ra version perfectly showcases fabric texture, gem gloss and product true color to boost customer purchase desire.
✅ Commercial space: art gallery, museum, exhibition hall for painting, sculpture & artwork accent lighting; office showroom, brand franchise store interior atmosphere creation.
✅ Hospitality industry: café, restaurant, hotel lobby, boutique inn for ambient decorative & focal lighting.
✅ Home decoration: villa living room, display cabinet, wall painting, wine cellar accent lighting for modern home interior styling.
