comparison of product parameters
| Input Voltage(V) | AC85-265V | Application | Showroom, Office,Home,Hotel ,Supermarket |
| Color Temperature(CCT) | 6500K/4000K/3500K |
Light Source |
LED |
|
Lamp Luminous Efficiency(lm/w) |
80 | Color Rendering Index(Ra) | 80 |
| Lifespan (Hours) | 25000hours | Support Dimmer | No |
| Lamp Body Material | Aluminium+PP | Warranty(Year) | 2-Year |
| Lighting solutions service | Lighting And Circuitry Design, Project Installation | Design Style | Modern |
| Item Type | Spotlights | Place of Origin | Guangdong, China |

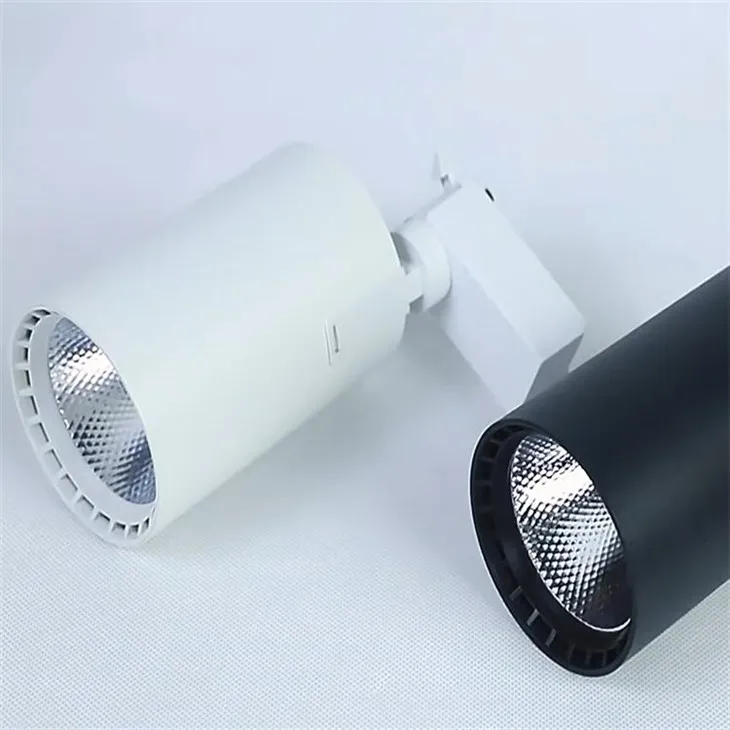

| Lamp Luminous Flux(lm) | 800-2400 | Product name | Surface Mounted 10 20 30 watt Led Track Spot Lamp |
| Power | 10w/20w/30w | Application | Showroom, Office,Home,Hotel ,Supermarket |
| Color | Black/White | CCT | 6500K/4000K/3500K |
| Material | Aluminium+PP | Warranty | 2 Years |
| Input Voltage | AC85-265V | CRI(Ra>) | 80 |
Core Optical & Electrical Performance
Light Source & Optic Design

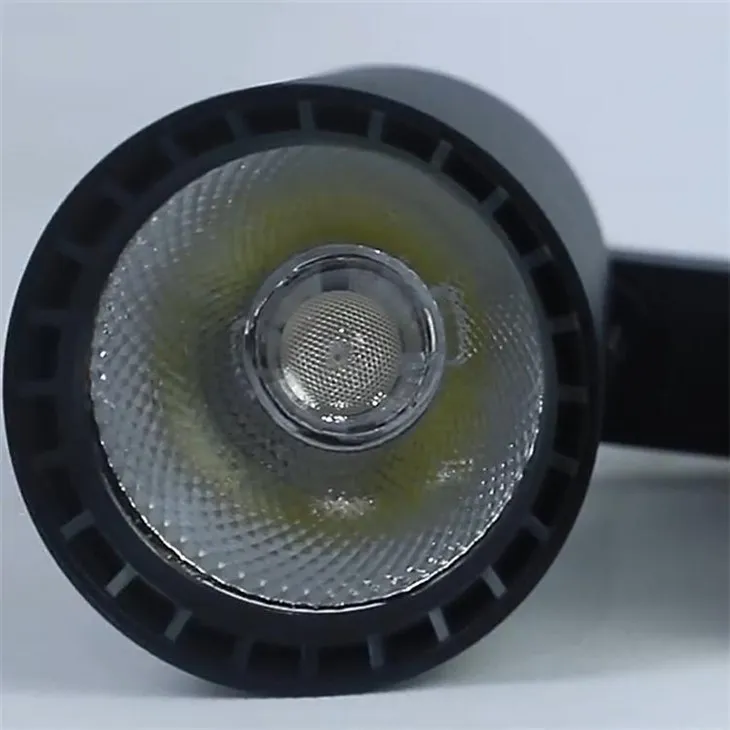

Built-in high-efficiency integrated COB LED chip as luminous core, matched with customized frosted concave aluminum reflector + convex focusing lens dual optics system. Precision secondary light refraction realizes concentrated spotlight beam with optional beam angles, high color rendering index CRI≥95, true color restoration for apparel, jewelry, artwork display without ghosting, dark spot or dazzling glare. Luminous efficiency hits up to 125~140lm/W, greatly cut down redundant scattered light vs traditional halogen track lights. Built-in isolated constant-current LED driver with wide AC85-265V universal input voltage, equipped with surge, over-current & over-temperature triple protection circuit; stable lighting output against unstable grid fluctuation in overseas commercial buildings, zero stroboscopic, compliant with international commercial electrical safety standards.
Heat Dissipation Performance
Whole lamp cylinder is made of extruded aviation-grade aluminum alloy, rear end adopts vertical dense finned grooved radiator structure, expanding effective heat exchange area by 50% compared with ordinary smooth shell track lights. Natural air convection channel is formed inside the lamp body to rapidly conduct heat generated from COB chip outward, effectively lock LED working junction temperature within safe threshold, avoid luminous decay accelerated by overheating during long-time non-stop operation.
Adjustable Installation Structure
Universal standard track connector fits global 2-wire/3-wire track rail; lamp head supports 360° horizontal rotation + 90° vertical pitching adjustment, freely aim lighting beam toward display shelf, wall decor and key merchandise as required, ultra-flexible layout for diversified shop interior design. Black/white two mainstream housing colors optional to match different store decoration styles.
Service Lifespan
Original industrial-grade COB LED chip rated lifespan reaches 50,000 hours; benefited from upgraded aluminum heat dissipation system, actual service life achieves over 40,000 hours under daily 12~16h continuous commercial operation (equivalent to more than 9 years daily shop use). Internal driver uses high-temperature resistant electronic components with integrated multi-protection circuit, driver service life synchronized with LED chip, eliminate frequent lamp maintenance & replacement cost which commonly occurs on cheap low-end track lights, largely reduce long-term after-sale expenditure for store owners and lighting contractors.
Light Decay & Power Loss Control
Lumen Attenuation Control: Optimized rapid heat emission structure keeps core chip running under low working temperature; initial lumen depreciation ≤3% after 1000h aging test, total luminous decay less than 18% after 30,000h long-term continuous use, far superior to regular track light's over 35% light fading at the same service cycle, maintaining stable high-bright focused illumination throughout long-term usage.
Power Consumption Loss: High power factor PF≥0.96 constant-current driver minimizes reactive power loss of circuit; high-efficiency COB source cuts invalid thermal loss remarkably. Replacing 50W traditional halogen track lamp with our 20W LED version can save over 60% monthly electricity cost for commercial shops, delivering outstanding energy-saving return on investment for retail operators.
