3 CCT LED Tri-Proof Light Full

Core Luminous & Electrical Performance Advantages

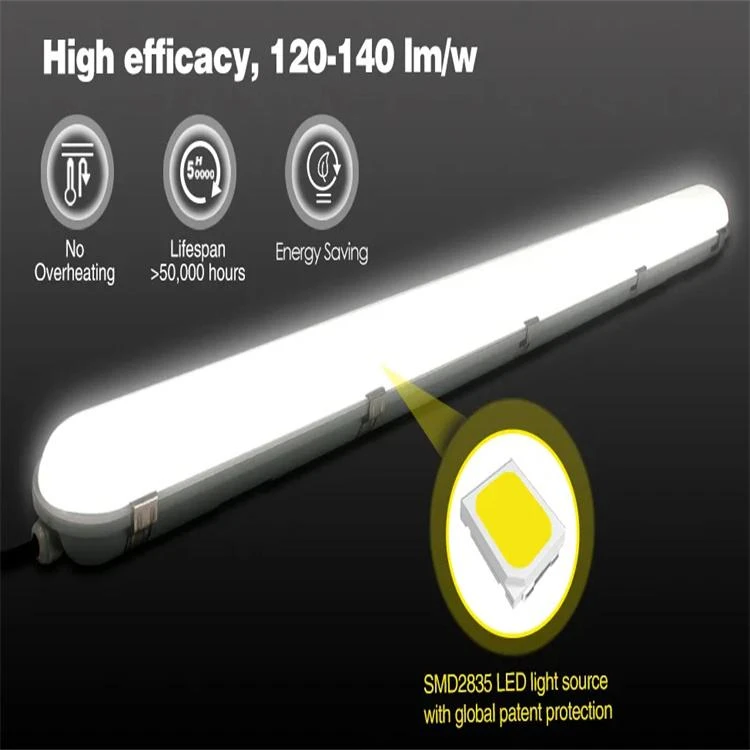

High-efficiency SMD2835 LED light source with patented optical design, reaching 120–140lm/W high luminous efficacy, output uniform, shadow-free and flicker-free wide-area illumination without dark zones, high CRI to restore true color rendering for food factories, supermarkets and production workshops.

Built-in isolated constant current driver with multi-protection circuit modules, supporting over-voltage, over-current, short-circuit and overheating auto-cutoff protection, eliminate strobing, sudden shutdown or chip burnout caused by unstable grid power supply.

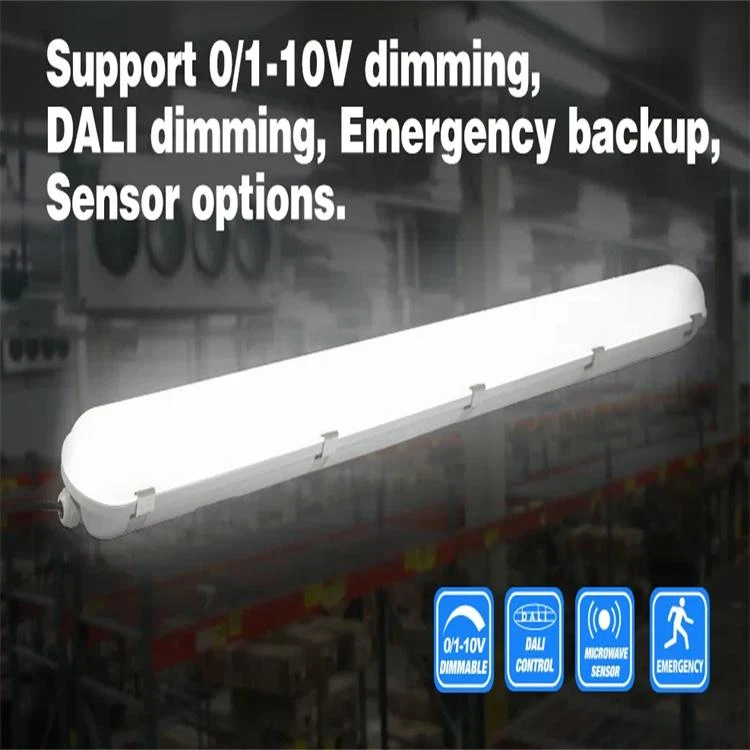

Multi intelligent control optional configurations: compatible with 0/1–10V analog dimming, DALI digital intelligent dimming system, microwave human body induction sensor and emergency backup power driver, realize automated energy-saving management for smart building projects.

Low heat generation chip layout with integrated aluminum heat sink substrate, fast heat dissipation conduction, long-time continuous operation without housing overheating, stable luminous performance under 24/7 non-stop working conditions.

Wide universal input voltage range, adapt to global mainstream AC power grids, no extra voltage transformer required for cross-border installation, compatible with industrial and commercial power supply standards of Europe, North America, Southeast Asia and Australia.

Two diffuser cover selections: frosted matte cover for soft glare-free lighting, striped lens cover for higher light transmittance, satisfy different scene lighting brightness and comfort requirements.

Evenly distributed linear LED chip arrangement, eliminate partial light attenuation and uneven brightness issues, maintain consistent lighting effect across the whole lamp surface.

Service Lifespan & Light Attenuation / Loss Control Performance

Ultra-long rated service life: High-grade SMD2835 LED chips with theoretical lifespan exceeding 50,000 working hours, far outperforming traditional fluorescent tri-proof lamps, drastically reduce lamp replacement frequency and post-project maintenance labor expense.

Strict light decay suppression system: Optimized aluminum heat sink + full sealed heat dissipation channel design, control luminous attenuation rate below 3% after 10,000 hours continuous operation, no obvious dimming within 5 years of daily use.

Anti-aging full PC housing material: High-density UV-stabilized polycarbonate shell, resist long-term exposure to sunlight, damp vapor, chemical mist and high/low temperature cycling, avoid yellowing, embrittlement and cracking under harsh working environments.

S304 stainless steel mounting clips: Anti-rust, anti-oxidation and wear-resistant, never rust or break under humid, salty or chemical air, zero mechanical failure loss during long-term fixed installation.

Non-sulfur sealing internal structure: Adopt sulfur-free glue and sealing components, prevent chip sulfidation failure which leads to rapid light loss, extend effective service cycle of internal light source.

Reinforced cable gland waterproof connector: Double-layer rubber sealing wire inlet, anti-aging and anti-fraying, avoid wire cracking, water ingress and circuit leakage loss caused by long-term temperature fluctuation.

Integrated modular assembly structure: Reduce loose internal parts and mechanical friction loss, withstand frequent vibration in factory production lines without internal component displacement damage.

Premium IP65 Full Tri-Proof Protection Grade

Official IP65 industry standard waterproof & dustproof rating: Complete closed integrated molding sealing process, fully block dust, water splash, rainwater and water mist intrusion, can be safely used in car wash, wet food processing workshop, underground parking and outdoor covered areas.

Multi-layer composite sealing system: Silicone foam full-circle sealing strip + integrated injection end cap double protection, prevent water vapor, fine dust and corrosive gas from penetrating into the lamp cavity to damage LED chips and driver.

Anti-corrosion all-plastic housing: PC material resists weak acid, weak alkali, salt fog and chemical volatile gas erosion, ideal for livestock farms, chemical workshops and coastal humid buildings without shell corrosion damage.

Impact-resistant thickened PC lens & body: High toughness polycarbonate material, pass anti-collision drop test, resist accidental impact from forklifts, production equipment and construction tools, no crack to break waterproof performance.

Dustproof seamless snap design: S304 spring clips lock the cover tightly without gaps, stop fine industrial dust accumulation inside the lamp body which would block light output and accelerate component aging.

All-weather temperature adaptability: Stable working performance under -30°C ~ +55°C wide temperature range, suitable for cold storage, northern low-temperature outdoor spaces and high-temperature factory workshops without protection failure.

Waterproof cable gland structure: Threaded lock nut + double rubber ring wire inlet, eliminate water seepage risk at wiring position, avoid short circuit and burnout failure caused by water penetration from cable gaps.
