IP65 Waterproof PC Housing LED Tri-proof Light

IP65 Waterproof PC Housing LED Tri-proof Light
Details:
1. The product is available in two housing designs—narrow and wide—with three standard lengths: 670mm, 1270mm, and 1570mm. The narrow version offers power ratings of 18W, 32W, and 48W (120lm/W efficacy), while the wide version offers 20W, 36W, and 55W (upgraded to 130lm/W efficacy), allowing customers to flexibly select specifications based on ceiling height and illumination requirements.
2. The housing is injection-molded from 94V0 flame-retardant PC material and features a snap-fit ​​sealed diffuser and waterproof cable glands. The unit achieves an IP65 protection rating, effectively blocking moisture, dust, and oil, ensuring reliable operation without short-circuiting caused by water ingress in harsh environments characterized by humidity, dust, or heavy oily fumes.
3. Internally, the unit features an aluminum alloy heat-dissipation substrate with evenly spaced SMD LED chips; the substrate includes ventilation cutouts to accelerate heat dissipation. The high-efficacy LEDs provide uniform, soft illumination with a Color Rendering Index (CRI) of 80–85Ra, accurately reproducing object colors while resisting yellowing or lumen degradation during prolonged use.
Send Inquiry
Description
Send Inquiry





Features



PC Housing LED Tri-proof Lighting

1. Available in four standard color temperatures: 3000K (warm), 4000K (neutral), 5000K (natural), and 6000K (cool white). It supports multiple dimming protocols-including Triac, 0-10V, DALI, and Zigbee-and integrates with smart control systems for adjustable brightness.

2. Comes standard with stainless steel mounting clips, supporting both surface-mounted (ceiling) and pendant installations. The hinged cover design allows for maintenance and component replacement without removing the entire fixture; simply opening the cover provides access, significantly reducing labor time for installation and after-sales service.

3. Features a high-performance driver (PF > 0.9) with constant-current isolation, ensuring stability against minor grid voltage fluctuations and minimizing the risk of flickering or burnout. Backed by a 5-year factory warranty and pre-shipment aging tests, the product helps lower long-term replacement and maintenance costs for bulk orders.

4. Primarily designed for food processing plants, pharmaceutical cleanrooms, chemical warehouses, and underground parking garages. It is also suitable for humid or dusty environments such as cold storage facilities, car washes, commercial kitchens, and livestock farms, as well as for indoor lighting in supermarket warehouses, underpasses, and subway corridors.

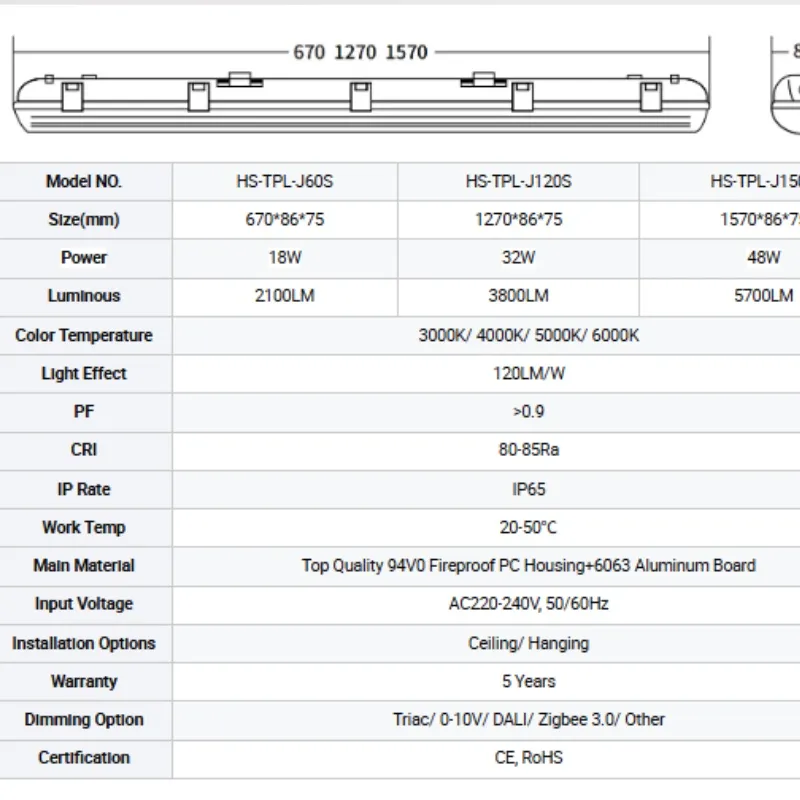

Product Parameters
Products Name IP65 Waterproof PC Housing LED Tri-proof Light Input Voltage(V) AC 220V( ± 10%)
LED Type SMD2835 Color Temperature(CCT) 3000k-6000k
Color Rendering Index(Ra) 80 Lamp Luminous Efficiency(lm/w) 130
Lifespan (Hours) 50000 Warranty(Year) 5-Year
Installation Easy Install Support Dimmer Yes
Led chip Smd Lamp Body Material Aluminum Heatsink PC Cover
Design Style Modern Application Mall Warehouse
Light Source LED Lamp Luminous Flux(lm) 2100LM-5700LM
Size 1270*86*75 Power 18W-60W
IP Rate IP 65 Power factor PF>0.95
Style Modern Contemporary Housing color White
Certification CE Rohs EMC Installation Ceiling Hanging
PF >0.9 Work Temp -20-50℃

More detail



Housing LED Tri-proof Light

This LED tri-proof light is a versatile linear lighting solution designed for both cleanrooms and harsh industrial environments. Its differentiated design-offering both narrow and wide profile options-precisely addresses the distinct illuminance requirements of standard warehouses versus high-standard cleanrooms. Every aspect-from the flame-retardant housing and IP65 sealing technology to the internal aluminum-based PCB heat dissipation structure-is optimized for challenging conditions involving moisture, dust, and oil, effectively resolving common issues associated with traditional fluorescent tri-proof lights, such as water ingress, burnout, and high energy consumption. With a wide range of color temperatures and smart dimming options, it serves not only basic lighting needs in standard factories but also smart lighting upgrades for intelligent industrial parks and automated warehouses. Whether for small-scale shop renovations, spot replacements in small-to-medium factories, or large-scale lighting projects for entire food or pharmaceutical processing workshops, this product delivers exceptional performance. Thanks to its superior energy efficiency, high level of protection, and long lifespan, it has become a leading choice for replacing outdated fluorescent fixtures in industrial tri-proof lighting applications.

Contact now

IP65 Waterproof PC Housing LED Tri-proof Light

WATERPROOF PLUG



Waterproof and moisture-proofcan effectively protect the lamps from water

METAL SNAPS FIXED



Distribution metal bucklestable and not easy to fall

IP65 Waterproof PC Housing LED Tri-proof Lighting

Waterproof PC Housing LED Tri-proof Lights

CONNECTIONOF POWER



From several sides

PLASTIC AND STAIN-LESS STEEL CLASP



Hold the lens and housingtightly, to form vapor tight

Waterproof PC Housing LED Tri-proof Lighting
































Waterproof PC Housing LED Tri-proof Light



LED Tri-proof Light

IP65 PC Housing LED Tri-proof Lights

IP65 PC LED Tri-proof Light
