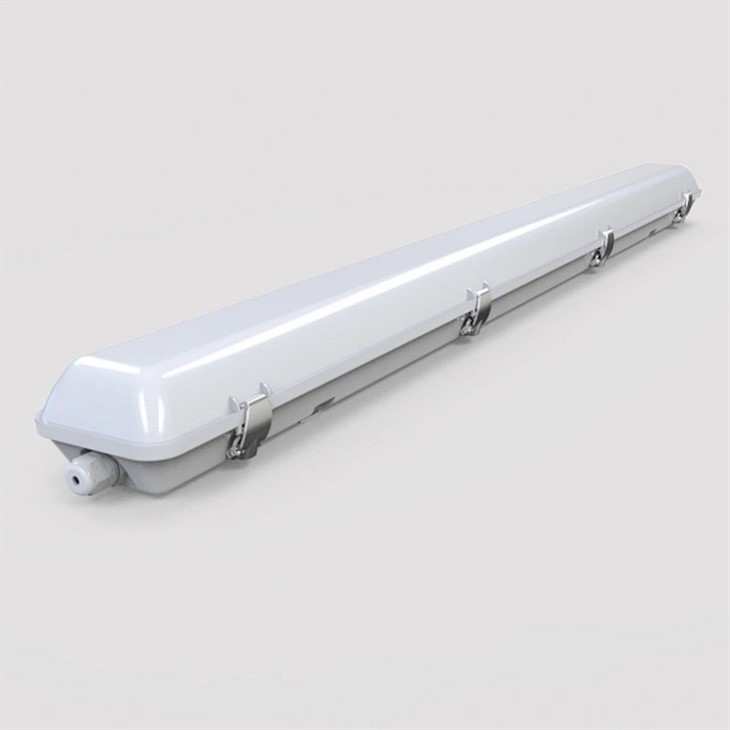

Warehouse IP66 LED Tri Proof Light

Warehouse IP66 LED Tri Proof Light
Details:

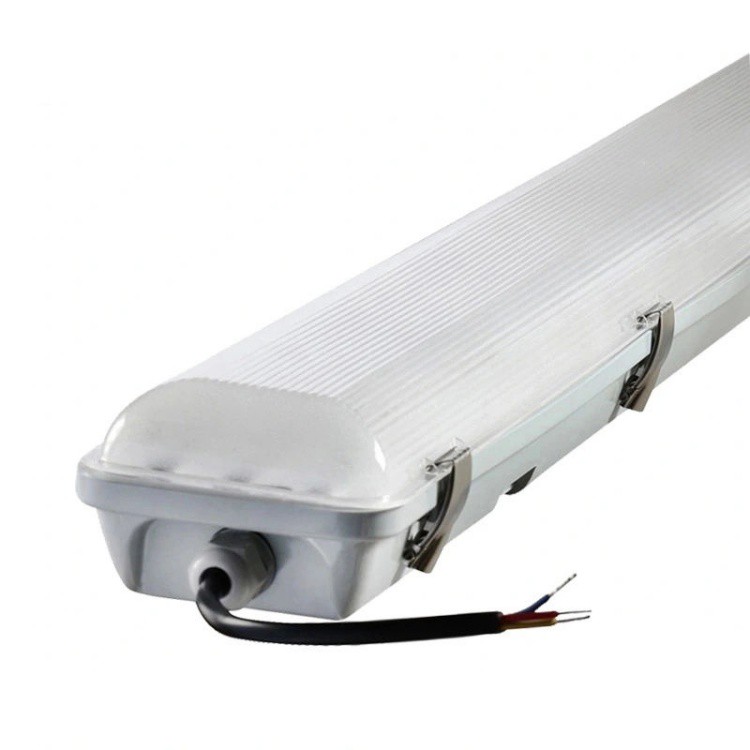

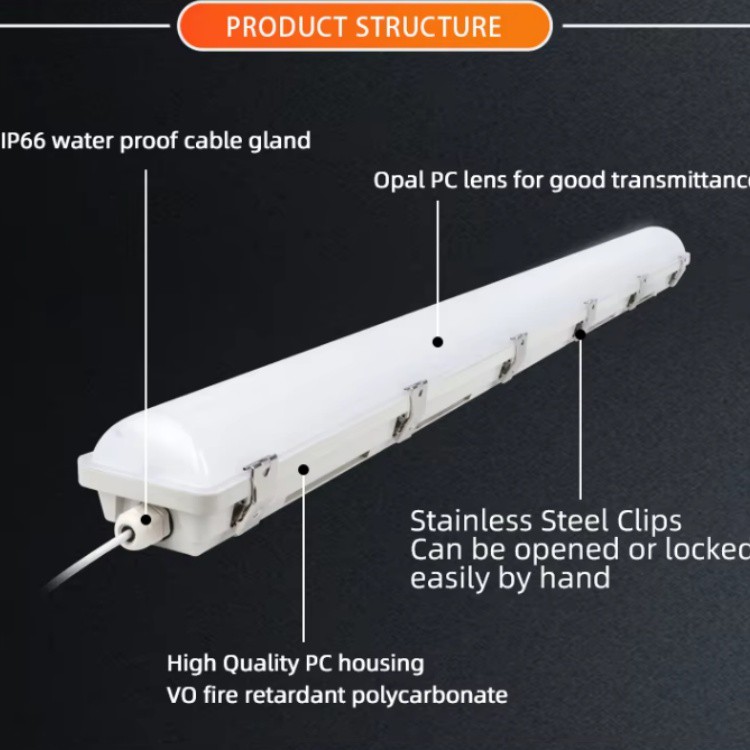

1. Features an IP66-rated waterproof sealed structure, paired with IP66 waterproof cable glands, ensuring exceptional overall sealing integrity. This effectively prevents the ingress of moisture, dust, and water mist, allowing for stable operation even in damp or dusty environments. It is ideally suited for use in specialized settings such as outdoor areas, underground spaces, kitchens, and bathrooms.

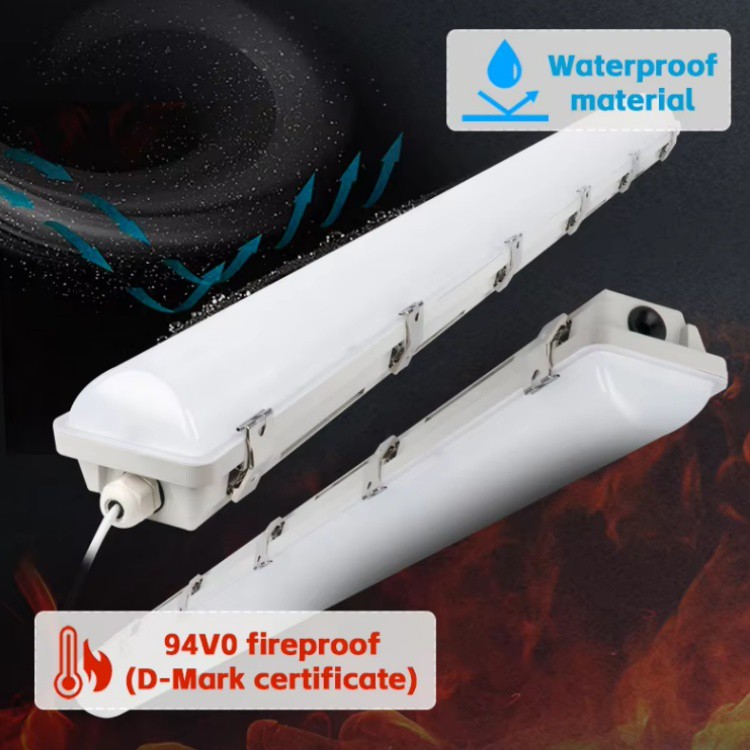

2. The lamp housing is constructed from V0-grade flame-retardant PC (polycarbonate) material. Highly heat-resistant and non-flammable, it is self-extinguishing upon exposure to open flames, thereby preventing circuit faults from escalating into safety hazards. This ensures greater peace of mind when deployed in commercial and industrial settings.
3. Equipped with an opal, high-transparency PC lens cover, the fixture delivers high light transmission and uniform light diffusion that is free from glare. It produces no dark spots or flickering, effectively preventing visual discomfort. This ensures a comfortable visual experience during prolonged illumination while simultaneously protecting the internal LED chips from external physical damage.
Send Inquiry
Description
Send Inquiry





Features



Warehouse IP66 Tri Proof Lights

1. Features manually operable stainless steel buckles: installation is completed simply by securing the mounting bracket, connecting the power supply, and snapping the buckles into place. Disassembly and reassembly are straightforward, requiring no complex tools for future inspections or component replacements-thereby significantly saving on construction and maintenance time.

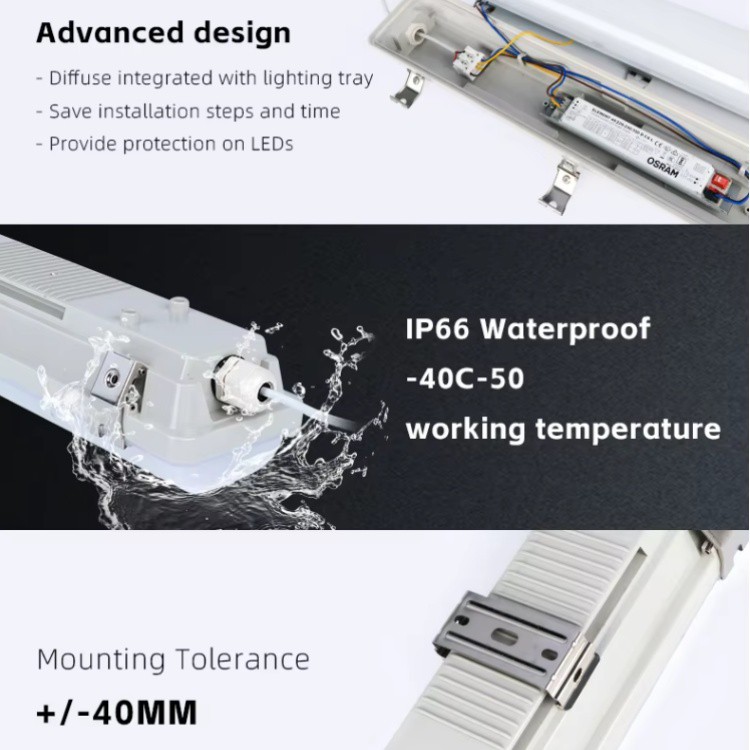

2. Supports an ultra-wide operating temperature range of -40°C to +50°C. Highly resistant to both extreme cold and heat, the fixture delivers stable illumination in harsh cold regions, high-temperature industrial plants, and outdoor areas; it is highly adaptable to diverse environments and resistant to damage or light decay caused by temperature fluctuations.

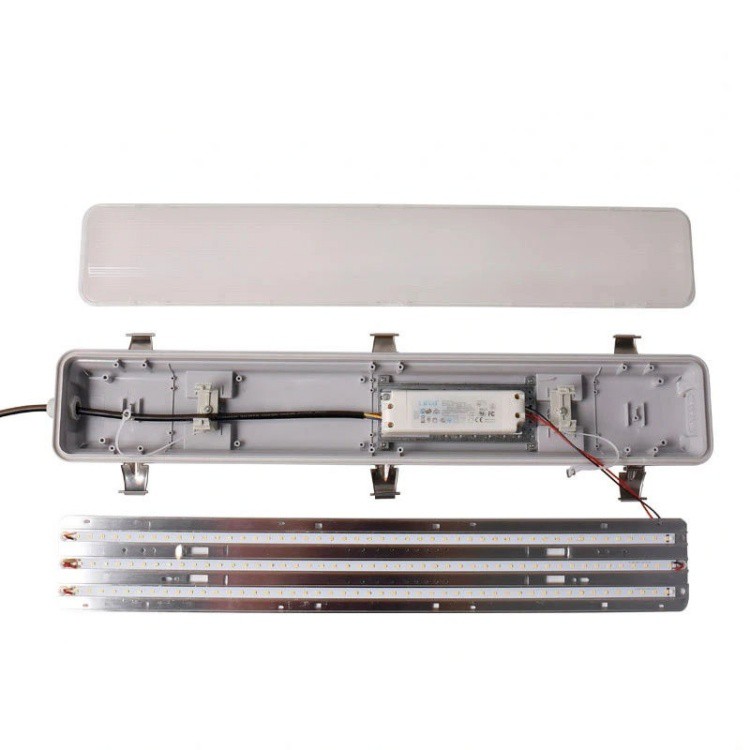

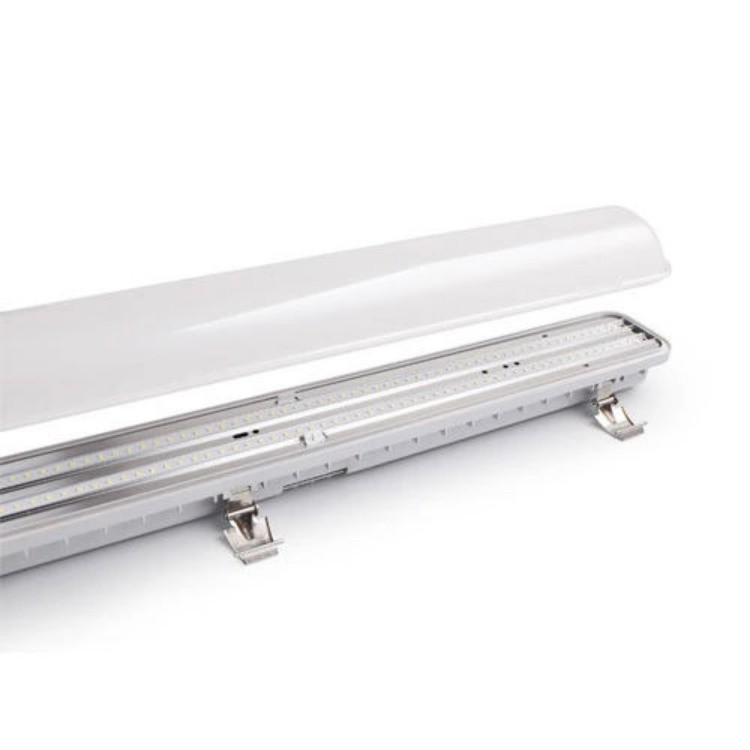

3. Boasts an integrated design combining the diffuser cover and the lamp body, paired with a high-quality branded power driver. The internal wiring is neatly organized, ensuring excellent heat dissipation. The unit is highly resistant to impact and aging, and will not easily yellow or crack over prolonged use, effectively extending the fixture's service life.

4. Suitable for use in underground parking garages, factory workshops, warehouses, cold storage facilities for fresh goods, bathrooms, balconies, and corridors. It is also well-suited for applications in shopping malls, gas stations, outdoor canopies, and agricultural greenhouses-effectively meeting the specific lighting requirements of environments characterized by high humidity, dust, or low temperatures.











Product Parameters
Products name Warehouse IP66 LED Tri Proof Light Input Voltage(V) 220-240V
Tube Materials Aluminum Body+ PC cover Color Temperature(CCT) 3000K 4000K 5000K 6000K 6500K
Color Rendering Index(Ra) >80 Working Temperature(℃) -20-50
Lifespan (Hours) 50000 Flicker free

No Flicker

LED Chip   Warranty(Years) 3
Power 18w/24w/36w/63w/85w/custom Lamp Luminous Efficiency(lm/w) 120-140lm/w
Power Factor >0.90 IP Rate IP66
Size 120cm/150cm Certificated CR, ROHS, PSE
Cover Milky and clear cover Base G13
Beam angle 180 Application School, Hospital, Corridor, Office, Library, Conference Room,Hotel



More detail



Warehouse IP66 led Tri Proof Light

This LED tri-proof linear light is a professional lighting product specifically engineered for challenging environments characterized by high humidity, dust, and extreme temperature fluctuations. Its core strengths lie in its IP66-rated water and dust protection, flame-retardant and fire-resistant properties, wide-temperature operational range, and ease of installation and maintenance. A rigorous sealing and fire-safety design ensures operational safety even in extreme conditions, while a stainless steel buckle mechanism simplifies the installation process. Featuring an integrated structural design paired with high-quality LED chips and drivers, the fixture strikes an optimal balance between brightness, visual comfort, and durability. Transcending the environmental limitations of standard indoor lighting fixtures, it performs reliably across a diverse range of applications-from large-scale industrial lighting projects such as factory floors and underground parking garages, to everyday domestic lighting in kitchens, bathrooms, and balconies, as well as specialized supplementary lighting in outdoor settings or cold storage facilities. It stands as a highly cost-effective tri-proof lighting solution that delivers an exceptional combination of safety, energy efficiency, and long-term performance.
