High-Lumens Integrated T5 LED Tube Lights

High-Lumens Integrated T5 LED Tube Lights
Details:

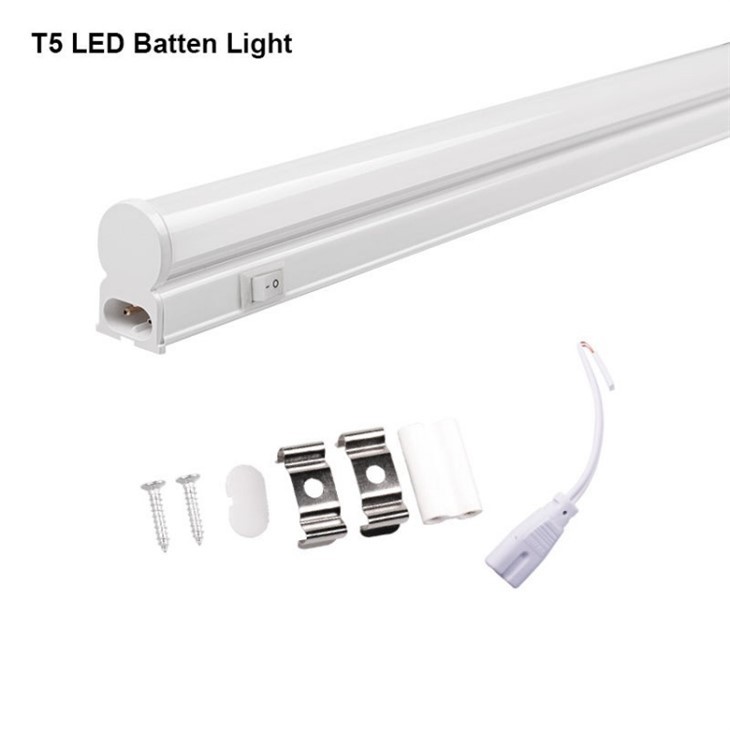

1. This is a T5 standard LED integrated bracket light. The light body uses a one-piece molding process, integrating the light source, driver, and bracket into one unit. Its slim and rounded design includes a built-in power switch, eliminating the need for separate lamp tubes and ballasts. It's ready to use out of the box, with a compact structure that saves space and creates a clean and aesthetically pleasing appearance after installation.

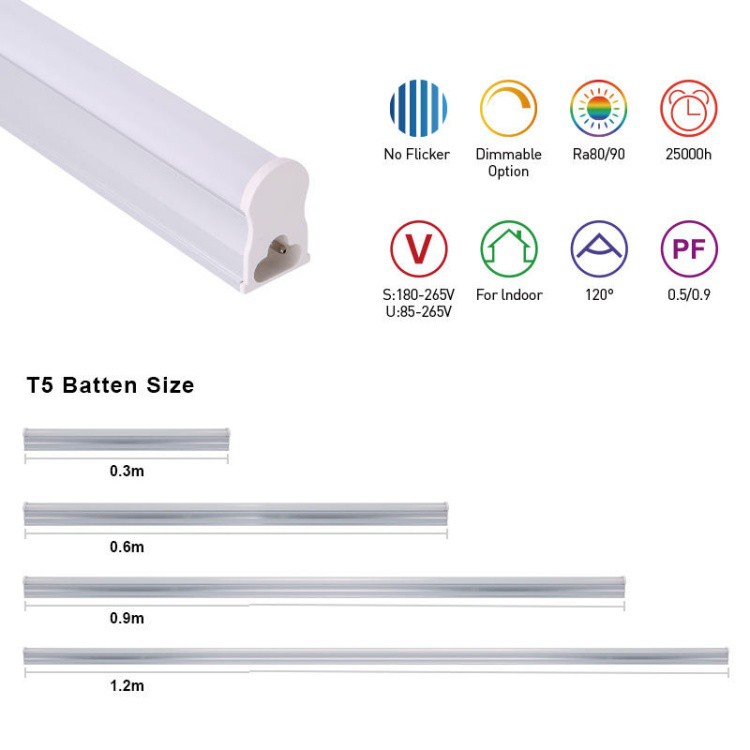

2. It is available in four standard lengths: 0.3m, 0.6m, 0.9m, and 1.2m, allowing you to choose freely according to the size of the lighting area. It supports single-lamp use or multi-lamp series connection via connecting cables, suitable for continuous lighting needs in narrow spaces and large areas.
3. The light source uses high-quality LED chips, featuring flicker-free characteristics and a selectable color rendering index (CRI) of Ra80/90, ensuring true color reproduction.
4. With a 120° beam angle, the light is uniform, soft, and non-glaring. A dimmable version is available, allowing you to adjust the brightness as needed. It reduces eye fatigue during prolonged use and is suitable for indoor fine work and everyday lighting.
Send Inquiry
Description
Send Inquiry





Features







LED Tube Lights

1. Supports a wide voltage input range of 85-265V, offering strong voltage adaptability and resistance to voltage fluctuations; power factor (PF) reaches 0.5-0.9, resulting in energy savings; nominal lifespan of 25,000 hours ensures low failure rate during long-term operation, significantly reducing replacement and maintenance costs.

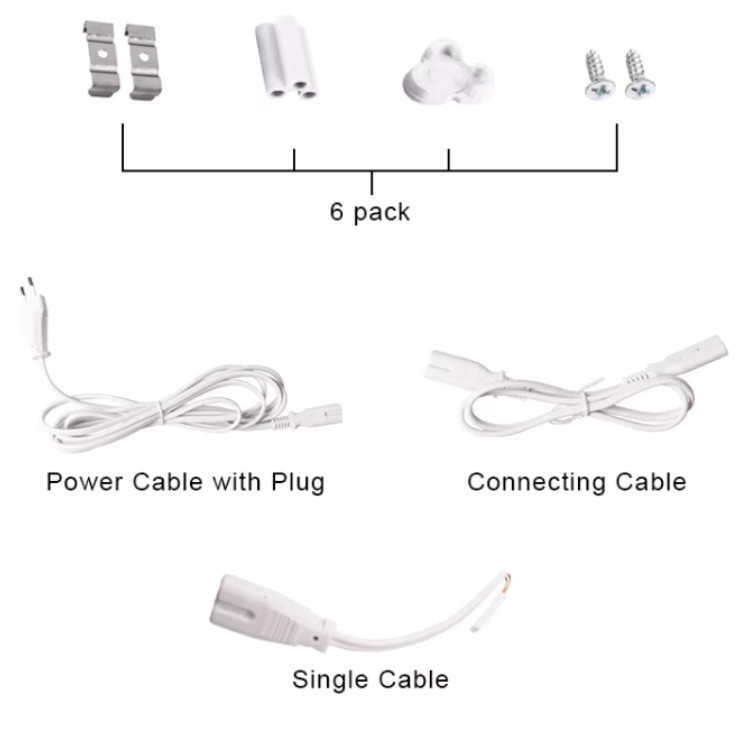

2. Comes with a complete set of accessories including mounting clips, screws, connectors, and power cords. Two installation methods are available: wall mounting and ceiling mounting are possible; with corresponding connecting cables, multiple lights can be quickly connected in series, simplifying wiring and requiring no complex electrical work-even ordinary personnel can quickly complete the installation.

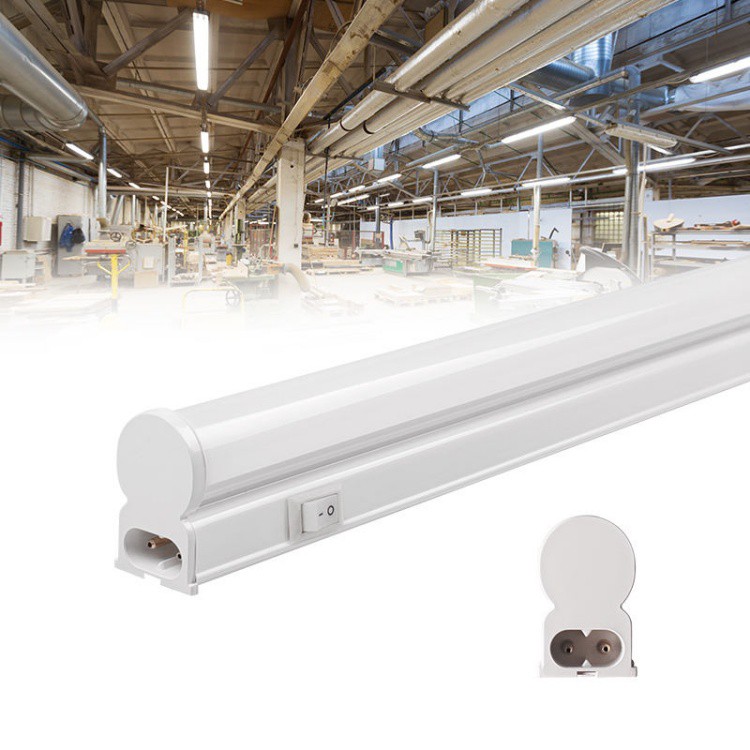

3. Designed specifically for indoor environments, suitable for factory workshops, supermarkets, offices, underground parking garages, warehouses, shops, and other locations. It can be used for large-area general lighting or as focused supplementary lighting for shelves, aisles, and workbenches, meeting diverse lighting needs in commercial, industrial, and office settings.

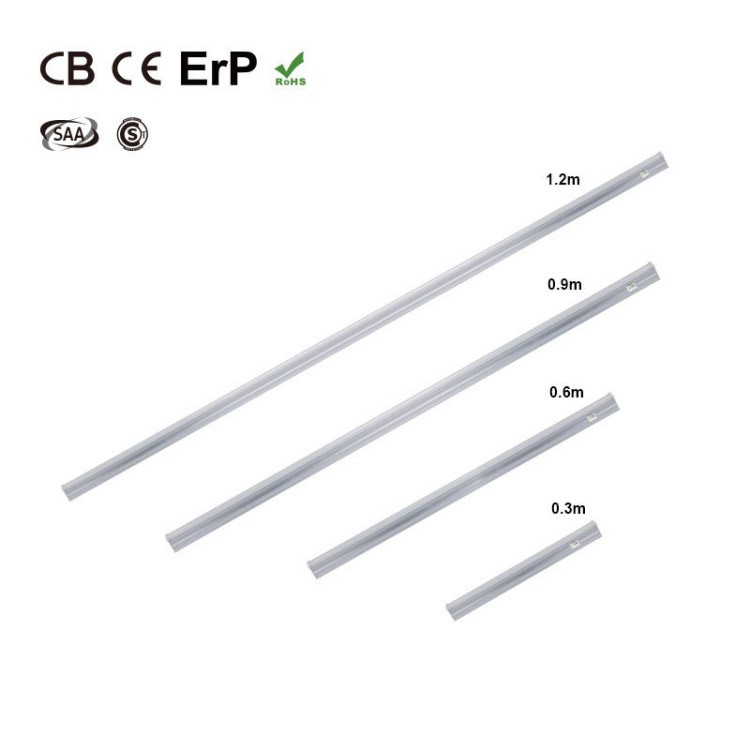

4. The product has passed multiple international safety certifications such as CB, CE, ErP, RoHS, and SAA. It uses environmentally friendly and compliant materials, has good heat dissipation performance, is safe and has no hidden dangers during use, can be exported to many countries, and is compatible with domestic and international indoor lighting market standards.









Product Parameters
Products name High-Lumens Integrated T5 LED Tube Lights

Input Voltage(V)

AC180~265V
Color Rendering Index(Ra) >95 Color Temperature(CCT) 2700-6500K/3000K/ 4000K/ 6500K
Lamp Luminous Efficiency(lm/w) 95lm/w ±10% Working Temperature(℃) -20 - 55
Lifespan (Hours) 50000hours Driver Type

IC

Material Aluminum Alloy.PC Warranty(Years) 3

PF

>0.90 IP Rating IP20
Application Indoor, Commercial, Office Power 22/18/12/9/5 W
Beam angle 120° Certificated TUV,CE, ROHS
Colour white optional Length 0.3M/0.6M/0.9M/1.2M/1.5M
LED Chip 2835 18pcs Light Source LED

More detail



High-Lumens Integrated T5 LED Tube Light

This T5 LED integrated bracket light combines multiple advantages such as convenient installation, rich specifications, excellent luminous efficiency, energy saving and durability, and strong adaptability, providing a one-stop solution for various indoor lighting needs. The integrated design simplifies the usage process, the complete set of accessories lowers the installation threshold, and its wide voltage and long lifespan characteristics are suitable for long-term, high-frequency use scenarios. Meanwhile, compliance certification ensures safe use, and the series connection function allows for flexible expansion of the lighting range. Whether in industrial workshops, commercial stores, or office areas, it provides a stable, comfortable, and energy-efficient lighting solution, making it a high-performance, cost-effective choice for basic indoor lighting.

Contact now



Products Showcase



High-Lumens Integrated T5 LED Tube Lights

High-Lumen Integrated T5 LED Tube Lights

Integrated T5 LED Tube Light





Products Application
